RV Products Division
OPERATION & MAINTENANCE INSTRUCTIONS
FOR
230/240 VAC, 1ø, 50Hz
47000 SERIES

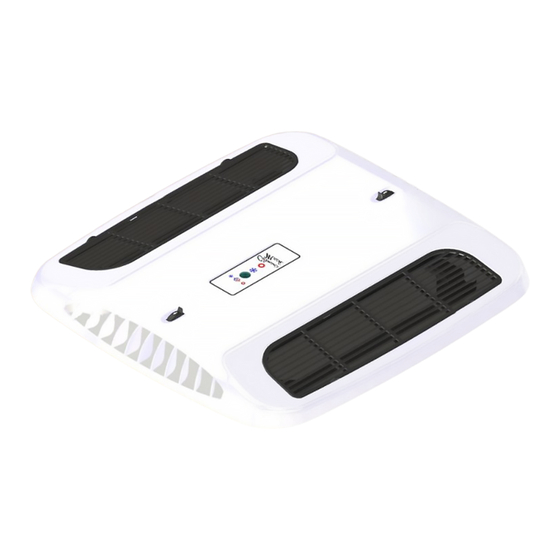

RV ROOF TOP AIR CONDITIONER/HEAT PUMP
AND
REMOTE CONTROLLER
Service Contact:
Coast to Coast RV Services Pty Ltd.
PO BOX 415
REGENTS PARK DC NSW 2143 Australia
Tel: +61-2-9645 7600
technical@coastrv.com.au
Coleman is a registered trademark of The Coleman Company, Inc. used under license. Mach is a registered trademark.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Airxcel Coleman-Mach 47000 SERIES
Summary of Contents for Airxcel Coleman-Mach 47000 SERIES
-
Page 1: Remote Controller
RV Products Division OPERATION & MAINTENANCE INSTRUCTIONS 230/240 VAC, 1ø, 50Hz 47000 SERIES RV ROOF TOP AIR CONDITIONER/HEAT PUMP REMOTE CONTROLLER Service Contact: Coast to Coast RV Services Pty Ltd. PO BOX 415 REGENTS PARK DC NSW 2143 Australia Tel: +61-2-9645 7600 technical@coastrv.com.au Coleman is a registered trademark of The Coleman Company, Inc. -
Page 2: Table Of Contents
TABLE OF CONTENTS Model and Serial Numbers ..........2 Operating Guidelines . -
Page 3: Adjusting The Air Flow
III. Adjusting the Air Flow The conditioned air is distributed through the ceiling assembly. Slides on the front and rear of the ceiling assembly can be moved to adjust the air flow to the front and rear. Return Air Louver Back Slide Back slide Return Air Louver... -
Page 4: Initial Configuration Of The Hand Held Controller
Battery Indicator (only visible when battery is low) POWER UP DOWN UP DOWN Turns Unit On or Off Adjust various set points Adjust various set points including Temperature and including Temperature and Time Time MODE Scroll to Select Scroll to Select Fan Speed System Operating Functions FOLLOW ME Select either Fahrenheit or Celsius... -
Page 5: Selecting The Manual Mode Of Operation
Selecting the Manual Mode of Operation The air conditioner (if equipped with heat) or heat pump has five modes of operation- Cooling, Heating, Auto (Auto-changeover), Dry and Fan. To select the desired operation, press the MODE button. Then use the UP or DOWN button to select the set point temperature. Select the desired fan speed by pressing the FAN button. -
Page 6: Follow Me
Auto: The unit will automatically heat and cool, depending on the set point temperature. (Heating only functions on air conditioners with electric heat, heat pumps or vehicles with an auxiliary source of heat, e.g. a gas furnace). Use the UP & DOWN buttons to select the desired set point temperature. In the Auto mode, the fan speed is selected automatically. -
Page 7: Led Lights & Buttons On Ceiling Assembly
Press the PROGRAM button to select the set point temperature for Cooling. Press the UP or DOWN button to select the desired temperature. Press the PROGRAM button to select the set point temperature for Heating. Press the UP or DOWN button to select the desired temperature. -
Page 8: Routine Maintenance
XII. Routine Maintenance The ceiling assembly and the outside shroud can be cleaned with a damp cloth. When required a mild detergent can be used. There are two washable filters in the ceiling assembly, one behind each return air louvers. To access the filters, pull on the tabs on the return air grilles. -
Page 9: Warranty
XIII. WARRANTY Coast RV Pty Ltd trading as Coast to Coast RV Services ABN 49 097 104 492 - ACN 101 461 330 PO Box 415, Regents Park NSW 2143 AUSTRALIA Ph (02) 9645 7600 - Fax (02) 9645 7699 Email: warranty@coastrv.com.au Web: www.coastrv.com.au Coast to Coast RV Services... - Page 10 RESPONSIBILITY FOR COSTS OF CLAIM UNDER THIS WARRANTY The Supplier is responsible for the costs directly associated with repairing or replacing the Goods in accordance with clause 2.1 only. Any works required to be completed in addition to fixing the Defect are the responsibility of the Client. Additional works includes any costs associated with any testing or repair of the Goods or any goods to which they are fitted, undertaken by a third party in relation to any defect without prior authorisation from the Supplier.
- Page 11 WARRANTY CLAIM FORM Warranty Providers Name: Coast RV Pty Ltd trading as Coast to Coast RV Services ABN 49 097 104 492 - ACN 101 461 330 Warranty Providers Address: PO Box 415 Regents Park NSW 2143 Australia OR; PO Box 58-054 Botany AUCKLAND 2163 New Zealand Client: Contact No.
- Page 12 RV Products Division Airxcel, Inc. RV Products Division P.O. Box 4020 Wichita, KS 67204 1976B623 (1-14) PP...
