OPERATION & MAINTENANCE INSTRUCTIONS
FOR
230/240 VAC, 1ø, 50Hz
476XX*XXX5 SERIES

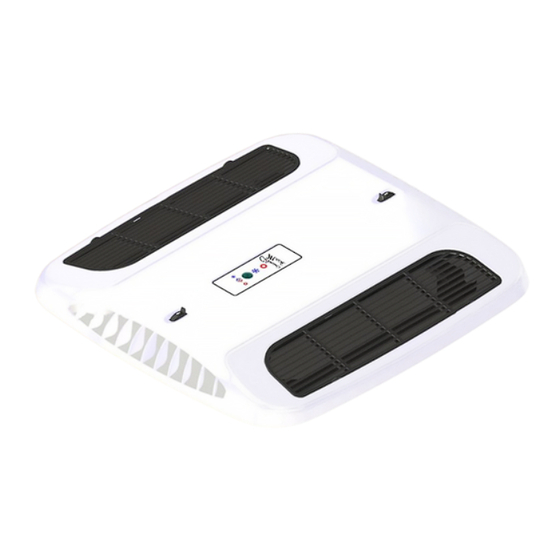

RV ROOF TOP AIR CONDITIONER
Service Contact:
Coast to Coast RV Services Pty Ltd.
PO BOX 415
REGENTS PARK DC NSW 2143 Australia
Tel: +61-2-9645 7600
technical@coastrv.com.au
Coleman is a registered trademark of The Coleman Company, Inc. used under license. Mach is a registered trademark.
Advertisement
Related Manuals for Airxcel Coleman-Mach 476 5 Series
Summary of Contents for Airxcel Coleman-Mach 476 5 Series
- Page 1 RV Products Division OPERATION & MAINTENANCE INSTRUCTIONS 230/240 VAC, 1ø, 50Hz 476XX*XXX5 SERIES RV ROOF TOP AIR CONDITIONER Service Contact: Coast to Coast RV Services Pty Ltd. PO BOX 415 REGENTS PARK DC NSW 2143 Australia Tel: +61-2-9645 7600 technical@coastrv.com.au Coleman is a registered trademark of The Coleman Company, Inc.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Model and Serial Numbers ..........2 Operating Guidelines . -
Page 3: Control Panel
III. CONTROL PANEL This RV air conditioner is operated from the control panel located in the ceiling assembly; there are three controls on the ceiling assembly that help you control the air conditioner. They are as follows: The Selector Switch – The selector switch determines mode of operation. By rotating the selector switch, the operator can obtain any system function desired. -
Page 4: Operation
IV. OPERATION For Cooling (Refer to Figure 1, page 3). Turn the selector switch to the “LOW COOL” or “HIGH COOL” position. Rotate the thermostat (temperature control) to the position that is the most comfortable to you. The thermostat will turn the compressor on when the temperature of the air entering the air conditioner rises a few degrees above the setting you have selected. -
Page 5: Routine Maintenance
Rotate the thermostat (temperature control) switch to the position that is the most comfortable to you. The thermostat will turn the compressor/heater on when the temperature of the air entering the heat pump unit drops below this setting a few degrees, and automatically turns off when the temperature of the air entering the heat pump rises a few degrees above this setting. - Page 6 IMPORTANT Do not operate your air conditioner for extended periods of time without the filter installed.An even more serious condition occurs when the air conditioner is operated without a filter. When this happens the lint, grease, etc. that are normally stopped by the filter are now accumulating in the cooling coil.
- Page 7 secure connection. If this does not correct the malfunction, the heating thermostat or limit switch may be faulty. Mechanical Integrity – The air conditioner should be inspected periodically to be sure that the bolts which secure the unit to the roof are tight and in good shape. Also, an examination of the plastic shroud covering the air conditioner on top of the roof should be made periodically.
-
Page 8: Warranty
VI. WARRANTY Coast RV Pty Ltd trading as Coast to Coast RV Services ABN 49 097 104 492 – CAN 101 461 330 PO Box 415, Regents Park NSW 2143 AUSTRALIA Ph (02) 9645 7600 – Fax (02) 9645 7699 Email: warranty@coastrv.com.au Web:... - Page 9 RESPONSIBILITY FOR COSTS OF CLAIM UNDER THIS WARRANTY The Supplier is responsible for the costs directly associated with repairing or replacing the Goods in accordance with clause 2.1 only. Any works required to be completed in addition to fixing the Defect are the responsibility of the Client. Additional works includes any costs associated with any testing or repair of the Goods or any goods to which they are fitted, undertaken by a third party in relation to any defect without prior authorisation from the Supplier.
-
Page 10: Warranty Claim Form
WARRANTY CLAIM FORM Warranty Providers Name: Coast RV Pty Ltd trading as Coast to Coast RV Services ABN 49 097 104 492 – I 101 461 330 Warranty Providers Address: PO Box 415 Regents Park NSW 2143 Australia OR; PO Box 58-054 Botany AUCKLAND 2163 New Zealand Client: Contact No. - Page 11 RV Products Division Airxcel, Inc. RV Products Division P.O. Box 4020 Wichita, KS 67204 1976-698 (5-15) PP...
