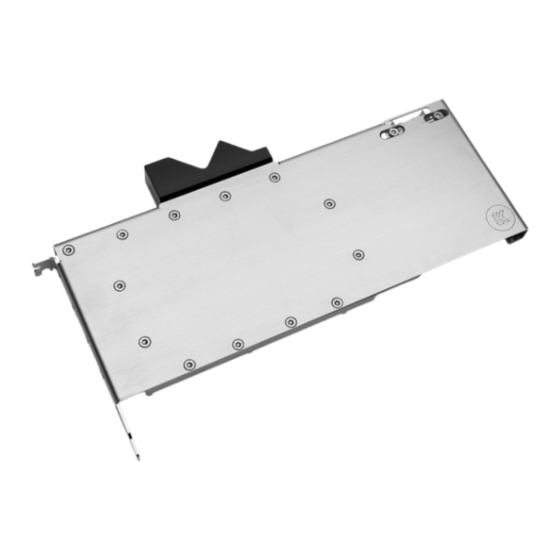

- Page 1 EK-PRO GPU WB RTX 6000 ADA – Nickel Inox GPU WATER BLOCK USER GUIDE...
- Page 2 Before you start using this product, please follow these basic guidelines: Carefully read the manual before beginning with the installation process. Remove your graphics card from the computer for the safest mounting process to prevent any possible damage to your GPU or its circuit board (PCB).
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS PREPARING YOUR GRAPHICS CARD REMOVING THE STOCK COOLER CLEANING THE PCB CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND INSTALLING THE WATER BLOCK PLACING THE BLOCK ON THE GRAPHICS CARD ATTACHING THE BACKPLATE CHECKING THE CONTACT IN CASE OF HIGH TEMPERATURES INSERTING THE GRAPHICS CARD INTO THE CHASSIS... -
Page 4: Box Contents
BOX CONTENTS EK-Loop Multi Allen Key (1x) 3830046996213 Allen Key 2mm (1x) 8901 EK-TIM Ectotherm (1g) (1x) 3830046998446 Screw size guide (1x) 103012 EK-Pro GPU WB RTX 6000 ADA Rack – Full Al 3831109906682 Screw M2.5x4 ax1 (4x) Screw M2.5x8 3825040ax1 - Washer POLYAMID M2.5 0.5mm PLUG G1/4 CSQ-Bridge (2x) 9047... -
Page 5: Water Block Dimensions
WATER BLOCK DIMENSIONS 23.9 mm 248.4 mm 19.3 mm 250.6 mm 262 mm 21.2 mm 32.5 mm 130.8 mm - 5 -... -
Page 6: Technical Specifications And Water Block Parts
TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS Position Description Quantity 106618 094 - baker - RTX 6000 ADA Coldplate Top Acetal - Pro Terminal GPU 45 deg 106439 G1-4 v2 9013 Vijak M4 x 8 DIN7984 8323 Vijak M4 x 28 DIN7984 5155 OR 15 x 1 EPDM50 (FC Terminal) 106133... -
Page 7: Preparing Your Graphics Card
PREPARING YOUR GRAPHICS CARD STEP 1 REMOVING THE STOCK COOLER Place your graphics card on the flat surface and carefully remove the stock cooler. Do not forget to unplug all the LED and fan connectors. Pay attention to the following steps in order to install the EK-Pro GPU RTX 6000 ADA water block onto the graphics card. -
Page 8: Cutting And Placing Thermal Pads
CUTTING AND PLACING THERMAL PADS Your GPU water block comes with un-cuted thermal pads to cover all the VRM components, such as COILs, MOSFETs , and drivers. Please use 1.0 mm thick thermal pads which should be placed on the PCB, as illustrated below. EK made sure to provide you with more than an adequate quantity of thermal pads to complete this Step. -
Page 9: Installing The Water Block
INSTALLING THE WATER BLOCK STEP 1 PLACING THE BLOCK ON THE GRAPHICS CARD This procedure is the same for all full-cover water blocks. Carefully position the water block with preinstalled standoffs on the graphics card. During this process, make sure you have aligned mounting holes of the PCB with holes of the water block. - Page 10 STEP 3 Secure power cable with mounting it into included inox power adapter. STEP 3a Stick the two included plastics pads (M3) on to inox power addapter as shown on picture. STEP 3b Insert 8-pin power connector in to the inox adapter. Pads on the power adapter must be alligned with openings in inox power adapter.
- Page 11 STEP 4 Install 2.0 mm thick thermal pads on the PCB, as illustrated below to ensure better connection between graphic card and backplate. EK made sure to provide you with more than an adequate quantity of thermal pads to complete this Step. Thermal Pad - 120 x 24 x 2.0 mm STEP 4 STEP 5...
-
Page 12: Attaching The Backplate
Then repeat Steps from the previous section to re-attach the block. In case you fail to obtain good contact, please check again or contact our support service at https://www.ekwb.com/customer-support/. - 12 -... -
Page 13: Inserting The Graphics Card Into The Chassis
INSERTING THE GRAPHICS CARD INTO THE CHASSIS Carefully lift your graphics card with the installed water block and insert it into your PC’s motherboard PCI express expansion slot. Please keep in mind that your graphics card is heavier than before it was equipped with the water block. -
Page 14: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
