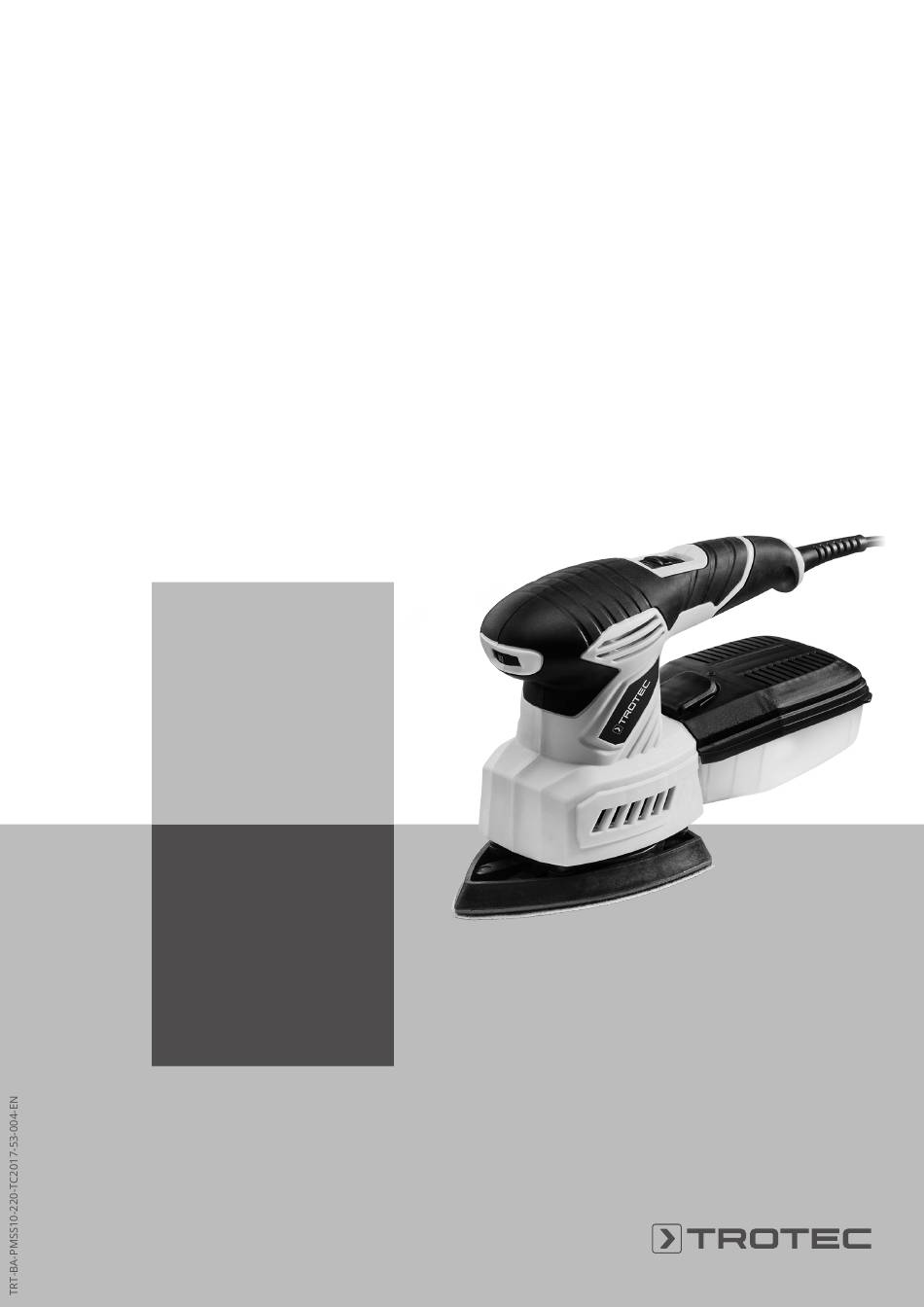

  • Page 1 PMSS 10-220 ORIGINAL INSTRUCTIONS 3-IN-1 MULTI-FUNCTIONAL SANDER...

  • Page 2: Table Of Contents

    Note This signal word indicates important information (e.g. material damage), but does not indicate hazards. Info Information marked with this symbol helps you to carry out your tasks quickly and safely. 3-in-1 multi-functional sander PMSS 10-220...

  • Page 3: Safety

    Any power tool that cannot be controlled with protected supply. Use of an RCD reduces the risk of the switch is dangerous and must be repaired. electric shock. 3-in-1 multi-functional sander PMSS 10-220...
  • Page 4 • For processing wood, or in particular materials that produce harmful dusts when sanded, connect the power tool to an appropriate external exhaust system. 3-in-1 multi-functional sander PMSS 10-220...
  • Page 5 The device must only be used for dry sanding. Before any work on the device, remove the mains plug from the mains socket! We recommend using the power tool with original Trotec Hold onto the mains plug while pulling the power cable accessories.
  • Page 6 Wear eye protection and a dust mask! Warning Do not process materials containing asbestos. Asbestos is considered carcinogenic. Warning Risk of injuries caused by flying parts. Use a dust or chip bag or a dust extraction system. 3-in-1 multi-functional sander PMSS 10-220...

  • Page 7: Information About The Device

    Dust extraction connection Random orbital sanding plate Clamping bracket Locking lever Orbital sanding plate Reducer Sanding sheet Screw Rubber pin Dust collector with filter Dust box release button Delta sanding plate Setting wheel for oscillation rate selection 3-in-1 multi-functional sander PMSS 10-220...
  • Page 8 Weight 1.5 kg Vibration information according to EN 62841 Vibration emission value main 6.732 m/s² handle a Uncertainty K 1.5 m/s² Sound values according to EN 62841 Sound pressure level L 78.4 dB(A) Sound power L 89.4 dB(A) Uncertainty K 3 dB 3-in-1 multi-functional sander PMSS 10-220...

  • Page 9: Transport And Storage

    • Ambient temperature below 45 °C You can change the sanding plate to carry out various activities. ü Use tools suitable for the intended task. • Protected from dust and direct sunlight inside the transport case 3-in-1 multi-functional sander PMSS 10-220...
  • Page 10 7. Pay attention that the rubber pins (10) are positioned in the recesses (19) in the device. The rubber pins ensure that the sanding plate is fixed in position. 3-in-1 multi-functional sander PMSS 10-220...
  • Page 11 3. Firmly press the sanding sheet down. 4. To exchange or remove the sanding sheet, simply pull it off 10. Check the sanding plate for tight fit. the sanding plate. 3-in-1 multi-functional sander PMSS 10-220...
  • Page 12 4. Guide the sanding sheet tightly along the orbital sanding plate to the other clamping bracket. 2. Slide the sanding sheet with its smooth bottom side under the open clamping bracket. 5. Repeat steps 1 to 3. 3-in-1 multi-functional sander PMSS 10-220...
  • Page 13 If anything is unclear or if you connection fit into the two grooves of the dust have questions, please contact the manufacturer of your collector (11). The dust collector (11) must lock into place vacuum cleaner. in the device. 3-in-1 multi-functional sander PMSS 10-220...

  • Page 14: Operation

    Paint residues might smelt and then smudge both workpiece and sanding sheet. • Switch the device on before applying it to the workpiece. Once the grinding process is concluded, lift the device off the workpiece before you switch it off. 3-in-1 multi-functional sander PMSS 10-220...
  • Page 15 Hold onto the mains plug while pulling the power cable out of the mains socket. 1. Slide the on/off switch (1) to I. 2. Position the device on the workpiece. 3. Lift the device off the workpiece before you switch it off. 3-in-1 multi-functional sander PMSS 10-220...

  • Page 16: Errors And Faults

    The motor slows down: • Check whether the device is overloaded by the workpiece. • Reduce the pressure applied on the workpiece. • Check whether the workpiece is suitable for the tasks to be carried out. 3-in-1 multi-functional sander PMSS 10-220...

  • Page 17: Maintenance

    • Dry the device with a soft, lint-free cloth. • Keep the ventilation openings free from dust deposits to prevent overheating of the motor. 3-in-1 multi-functional sander PMSS 10-220...

  • Page 18: Disposal

    2. Clean the filter insert with warm water mixed with a Annex II, Part 1, Section A neutral cleaning agent. Herewith, we – Trotec GmbH– declare that the machinery 3. Allow the filter insert to dry completely. Do not put a wet designated below was developed, constructed and produced in filter insert into the dust collector! compliance with the requirements of the EC Machinery...
  • Page 19 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
