Summary of Contents for uniwatt UGH4002

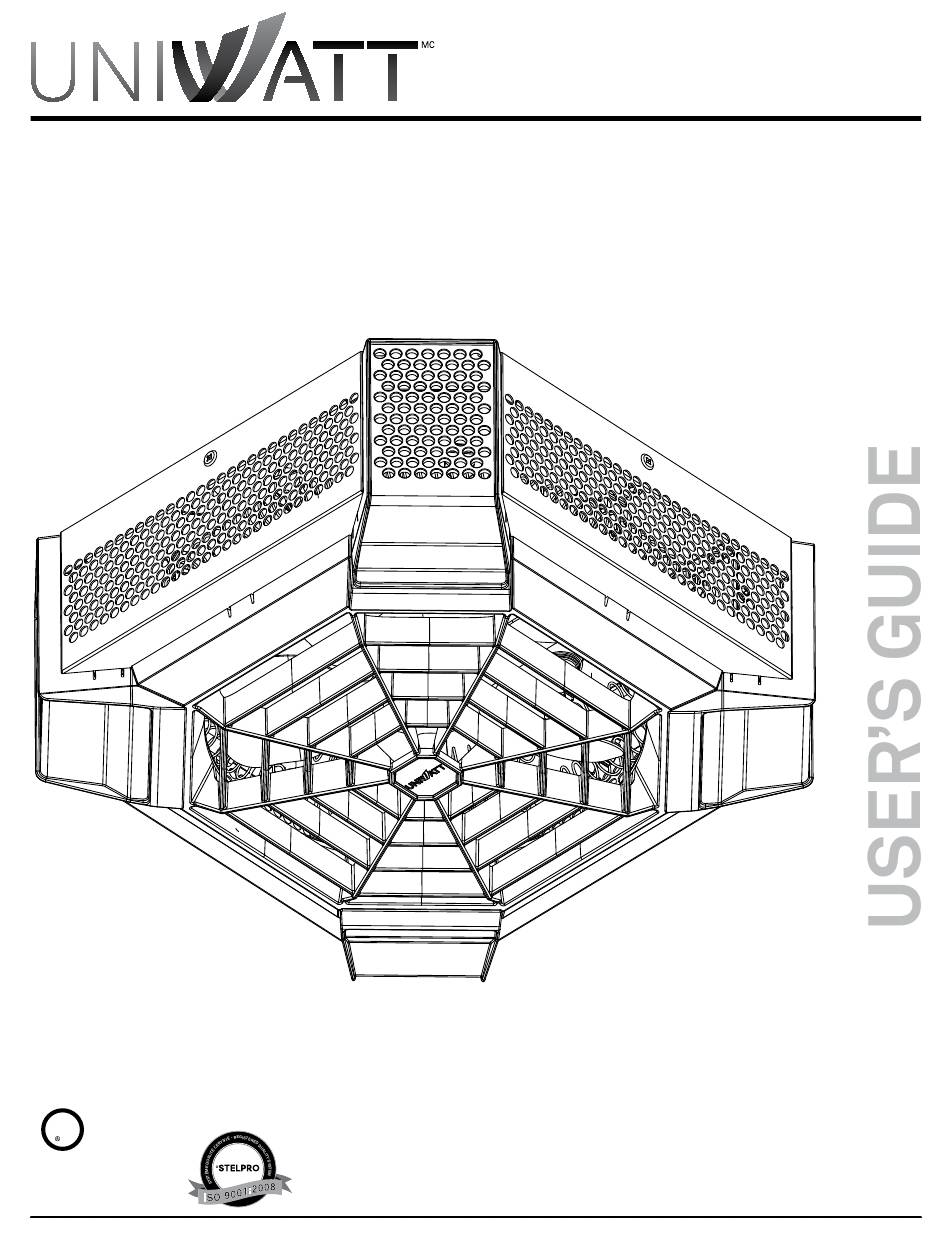

- Page 1 UGH4002 Ceiling fan heater replaCement Component list inCluded LISTED this unit complies with Csa standards UNIWATT is a line of products manufactured by STelpro. For more information please contact customer service. INSUGH0315...
- Page 2 IMPORTaNT INSTRUCTIONS warning Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future reference. If these instructions are not followed, the warranty will be considered null and void and the manufac- turer deems no further responsibility for this product.
- Page 3 installation technical dRaWings 11 3/4" 5 1/2" 298.5mm 140mm 13 3/4" 349.7mm KO 7/8'' BACK FRONT SIDE specifications ceiling fan heateR VOLTS 240/208 WaTTS 4000/3000 aMPeRaGe cOLOR ORaNGe WeIGHT 10 lb / 4.5 kg installation This unit is designed to be installed on the surface of a finished ceiling,. This unit requires a minimum mounting height of 8 feet (2.44 m) from finished floor.
- Page 4 installation installation figure 1 figure 2 MOUNTING BRACKET HOOK SUSPENSION SLOT INTERNAL ASSEMBLY 12 in. MIN. 12 in. MIN. (305 MM) (305 mm) COVER figure3 figure 4 BACK WIRING COVER -WARNING- USE THIS KO FOR FINISHED CEILING -WARNING- KEEP BARE WIRE INSIDE THE BACK WIRING COVER BLACK...
- Page 5 maintenance, trouBlesHooting and replacement components maintenance n.B. In order for the warranty to be valid, the unit must be cleaned regularly. Cut off power supply at circuit breaker/fuse before cleaning this heater. Use a soft rag for dusting. When cleaning, use only a damp rag and non- abrasive dish soap.
- Page 6 This limited warranty is offered by Stelpro Design Inc. (“Stelpro”) and applies to the following products made by Stelpro: UNIWaTT UGH model. please read this limited warranty carefully. subject to the terms of this warranty, Stelpro warrants its products and their components against defects in workmanship and/or materials for the following periods from the date of purchase: 2 years.
