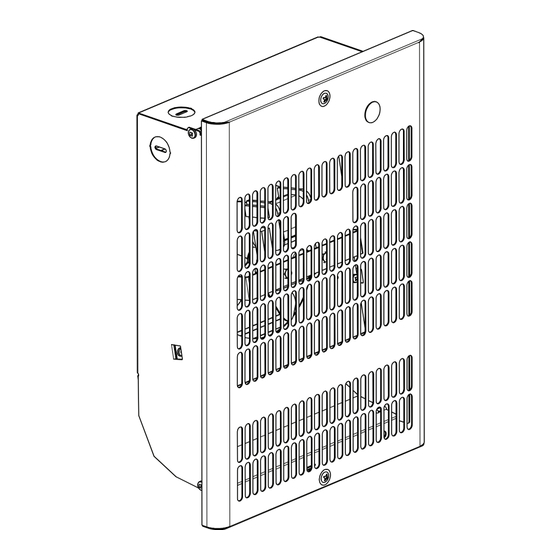

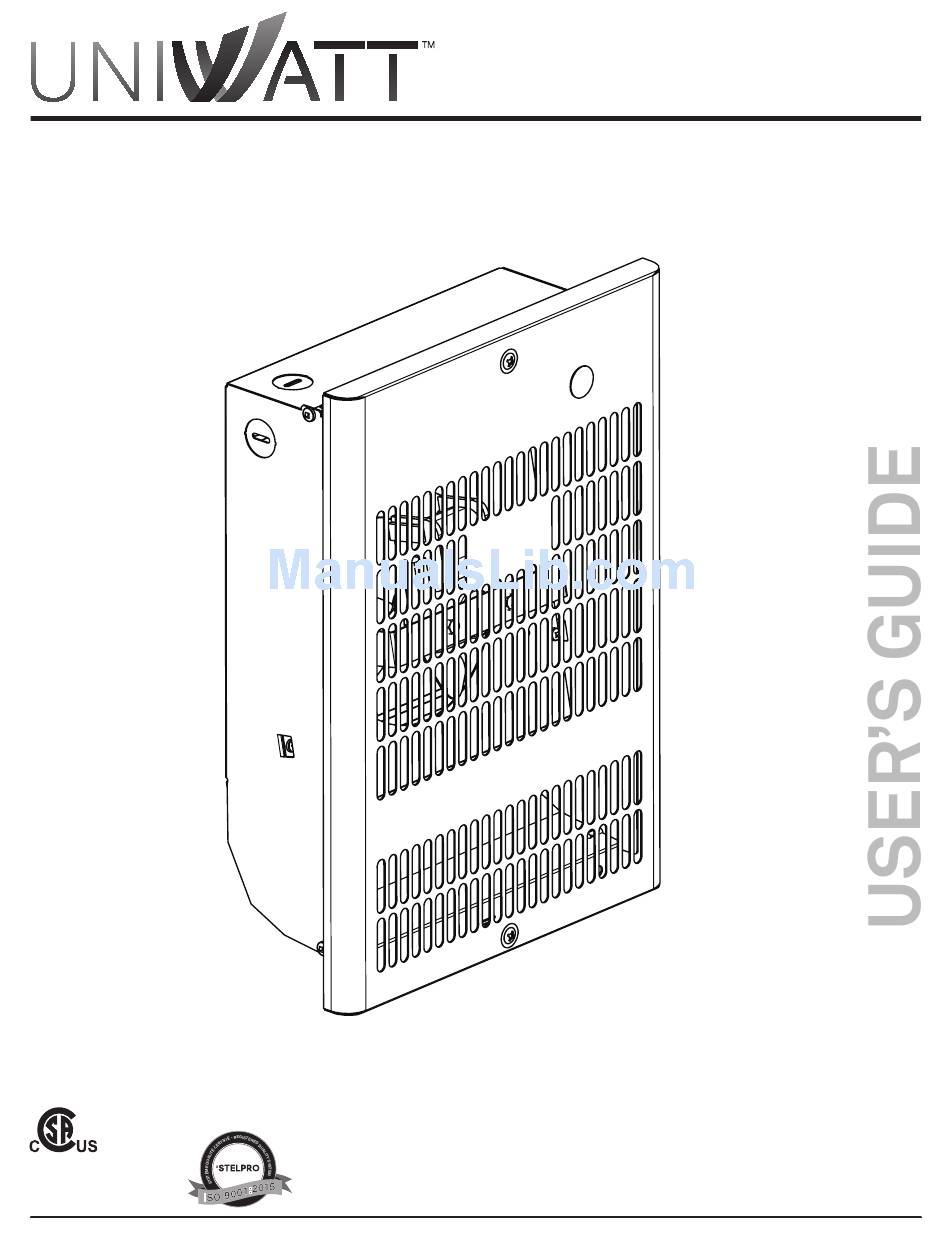

- Page 1 UWH1002W WALL FAN HEATER REPLACEMENT COMPONENT LIST INCLUDED This unit complies with CSA and UL standards UNIWATT is a line of products manufactured by STELPRO. For more information please contact customer service. INSUWH0517...
- Page 2 SAVE THESE INSTRUCTIONS WARNING Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product.
-
Page 3: Specifications
TECHNICAL DRAWINGS AND SPECIFICATIONS TECHNICAL DRAWINGS 109mm 4 9/32" 267mm 10 1/2" 90mm 3 17/32" 74mm 50mm 27mm 2 59/64" 1 61/64" 203 mm 1 3/64" 225mm 25mm 8 7/8" 1" 324mm 26mm 22mm 12 25/32" 1 3/64" 373mm 7/8" 22mm 14 11/16"... -
Page 4: Installation
INSTALLATION INSTALLATION N.B. CUT OFF POWER SUPPLY AT CIRCUIT BREAKER/FUSE BEFORE PROCEEDING WITH INSTALLATION. INSTALLATION POSITION MUST BE RESPECTED : INSTALL WITH TOP OF UNIT FACING UP ONLY. TO REDUCE THE RISK OF FIRE, DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THE HEATER. - Page 5 INSTALLATION, MAINTENANCE AND OPERATION WALL INSTALLATION POSITION RECESSED INSTALLATION This unit must be installed at a minimum distance of 8” (20 cm) from adjacent walls 9 5/16" and the floor. 19mm Front grill 3/4" 203 mm Recessed box 88mm minimum 3 31/64"...
-
Page 6: Troubleshooting
TROUBLESHOOTING AND REPLACEMENT COMPONENTS TROUBLESHOOTING PROBLEM DEFECTIVE PART OR PART TO CHECK Defective thermostat or wrong thermostat setting Open circuit breaker or fuse THE UNIT DOES NOT WORK Activated thermal protection Faulty connections Defective thermostat or wrong thermostat setting THE UNIT RUNS CONTINUOUSLY Heat losses greater than the unit’s capacity Defective thermal protection THE ENCLOSURE IS EXTREMELY HOT... -
Page 7: Limited Warranty
LIMITED WARRANTY LIMITED WARRANTY This limited warranty is offered by Stelpro Design inc. (“Stelpro”) and applies to the following product made by Stelpro: UNIWATT UWH model. Please read this limited warranty carefully. Subject to the terms of this warranty, Stelpro warrants its products and their components against defects in workmanship and/or materials for the following periods from the date of purchase: 2 years.
