Summary of Contents for uniwatt UHC

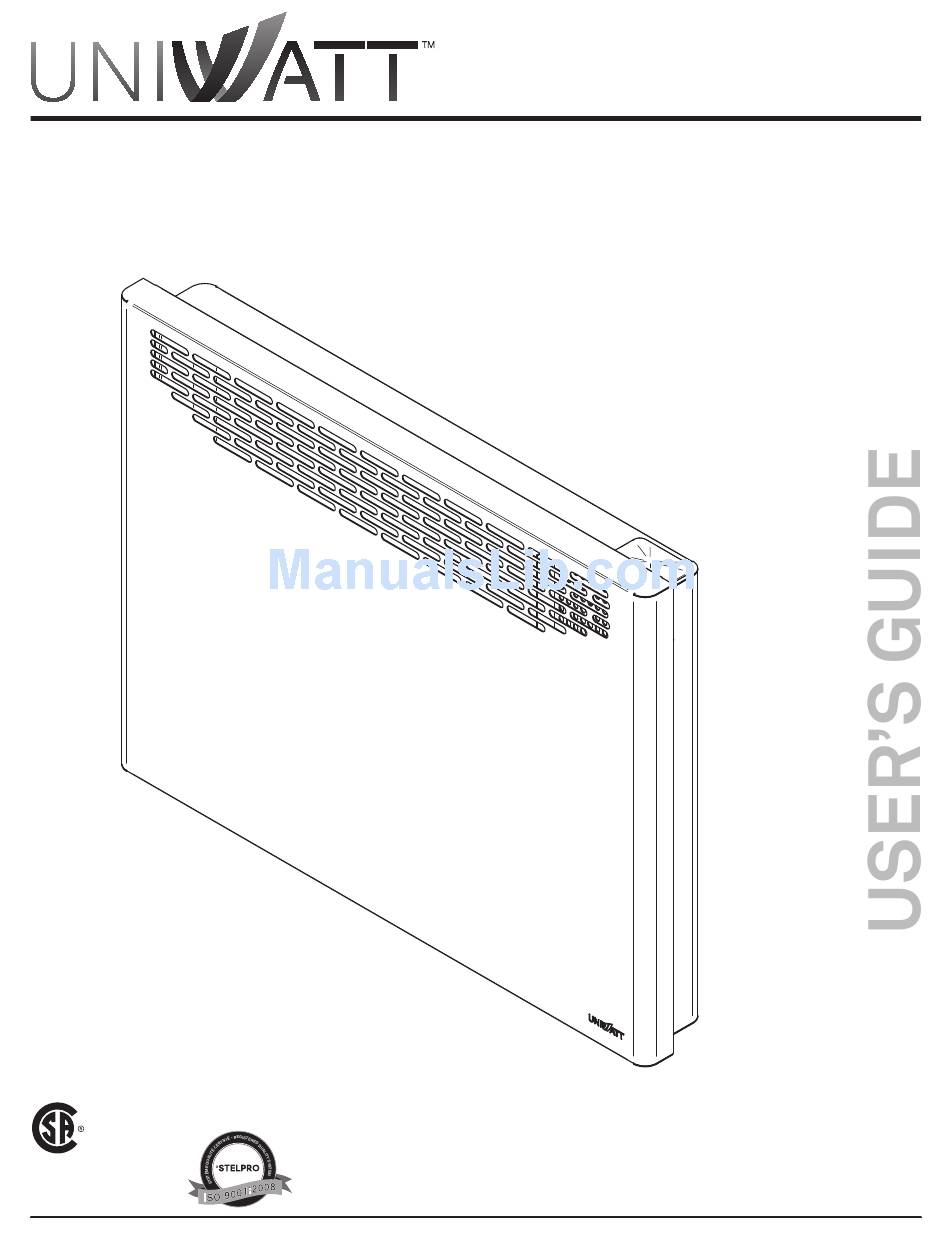

- Page 1 QUIET CONVECTOR REPLACEMENT COMPONENT LIST INCLUDED This unit complies with CSA standards INSUHC0116 UNIWATT is a line of products manufactured by STELPRO. For more information please contact customer service.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS WARNING Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product. -
Page 3: Technical Drawings
TECHNICAL DRAWINGS AND SPECIFICATIONS TECHNICAL DRAWINGS 5/8" 16mm 4" 101mm 3/4" LENGTH 19mm 1 1/4" 2 7/16" 32mm 62mm 7/8" 22mm 1 5/16" 34mm 17 9/16" 446mm 10 7/8" 277mm 4" FRONT 102mm SIDE MIN. SPECIFICATIONS BUILT-IN WITHOUT POWER VOLTAGE LENGTH WEIGHT THERMOSTAT... -
Page 4: Installation
INSTALLATION INSTALLATION CUT OFF POWER SUPPLY AT CIRCUIT BREAKER/FUSE BEFORE PROCEEDING TO THE INSTALLATION. - The unit should be installed at least 4 in (10.2 cm) from the floor and 6 in (15 cm) from adjacent walls. - Before operating the unit, make sure that both the air inlet (bottom) and air outlet (front) are free from obstruction. INSTALLATION OF THE WALL RACK 1. -
Page 5: Electrical Connection
ELECTRICAL CONNECTION & OPERATION ELECTRICAL CONNECTION STANDARD MODELS MODELS WITH 120 V PLUG (FIXED CONNECTION) (RESIDENTIAL OUTLET) THIS UNIT IS EQUIPPED WITH A THREE-WIRE GROUNDING THIS PRODUCT MUST BE CONNECTED BY TYPE AC PLUG: A QUALIFIED ELECTRICIAN, ACCORDING TO THE ELECTRICAL AND BUILDING CODES - For safety reasons, the plug can only be inserted into an outlet with EFFECTIVE IN YOUR REGION. -
Page 6: Maintenance
OPERATION, MAINTENANCE & TROUBLESHOOTING ANTIFREEZE PROTECTION In order to protect your home against freezing and limit energy consumption during long absences, put the thermostat on ANTIFREEZE mode. To enter this mode, lower the day temperature to between 3°C and 5°C. A Snowflake icon ( ) is displayed. This icon indicates that the economic and secure ANTIFREEZE mode is on. - Page 7 REF. # PART # DESCRIPTION REF. # PART # DESCRIPTION M-UHC0504Z FRONT COVER UHC 500 W - white EUC0500-10-7 ELEMENT 500 W - 139 V M-UHC1004Z FRONT COVER UHC 1000 W - white EUC0500-10-8 ELEMENT 500 W - 104 V...
-
Page 8: Limited Warranty
LIMITED WARRANTY LIMITED WARRANTY This limited warranty is offered by Stelpro Design inc. (“Stelpro”) and applies to the following product made by Stelpro: UNIWATT UHC model. Please read this limited warranty carefully. Subject to the terms of this warranty, Stelpro warrants its products and their components against defects in workmanship and/or materials for the following periods from the date of purchase: 2 years.
