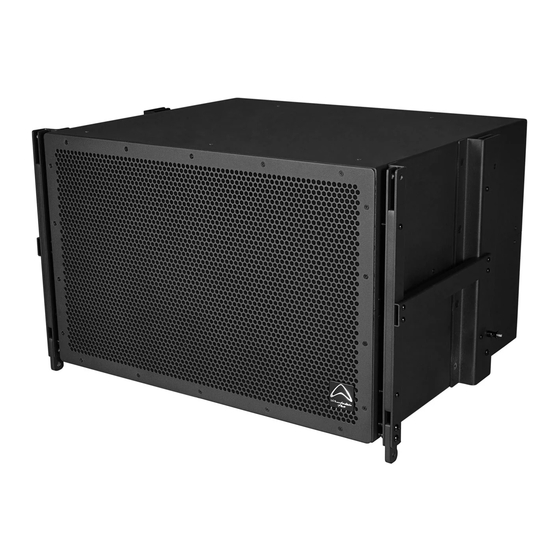

Wharfedale Pro WLA-28SUBXF Quick Start Manual

Your full user manual can also be downloaded from
www.wharfedalepro.com

KEY FEATURES

• Dual 15" Passive subwoofer
• IPX6 Waterproof certification
• Wax wrapped components
• Anti-corrosion stainless steel hardware
• Waterproof input connector

SPECIFICATIONS

Model Name
Configuration
Frequency Response (+/- 3 dB)
Frequency Range (- 10 dB)
(Passive)Sensitivity 2.83 v / 1 m
(Passive)Calculated Maximum SPL @1 m
System Rated Impedance
Low Frequency Transducer
Size (mm / inches)
Voice coil size (mm / inches)
LF Magnet Material
LF Frame Material
Rated Impedance
LF Power re:AES2-2012
Nominal Coverage (H x V)
System Continuous Power (w)
System Programme Power (w)
System Peak Power (w)
Crossover frequency
Input Connector
Enclosure Material and finish 18 mm plywood/3.0 mm Aluminium
Colour Options
Grille Material & Finish
Dimensions - Unpacked (mm / inches):
Dimensions - Packed (mm / inches):
Net Weight (kg / lbs)
Gross Weight (kg / lbs)
Note : Specifications may be subject to change without notice.
• System Continuous Power 1200 W
• System Programme Power 2400 W
• System Peak Power 4800 W
• Impedance 4 Ω
• 18 mm Plywood construction
3.0 mm Aluminium
WLA-28SUBXF
System Type Passive
2 x 15" Subwoofer
39-900 Hz
35-1.5 KHz
108 dB
145 dB
381 mm / 15''
100 mm / 4.0''
ferrite
aluminium
8 Ω x 2
600 W x 2
1200 W
2400 W
4800 W
1XWY-24K4Z (waterproof)
Rigging 4 points for rigging
pole mount
handles
Enclosure
cabinet type square
Water proof black paint
3.0 mm Black Aluminium
Height front 494 mm / 19.4"
Height Rear 494 mm / 19.4"
Width 845 mm / 33.3"
Depth 653 mm / 25.7"
Height 584 mm / 23"
Width Front 933 mm / 36.7"
Width Rear 933 mm / 36.7"
Depth 723 mm / 28.5"
Weight
81.0 kg / 178.2lbs
86.4 kg / 190.1lbs
WLA-28SUBXF
QUICK START GUIDE
4 Ω
NO
yes

OVERVIEW

845.0
