Summary of Contents for Wharfedale Pro SW-10

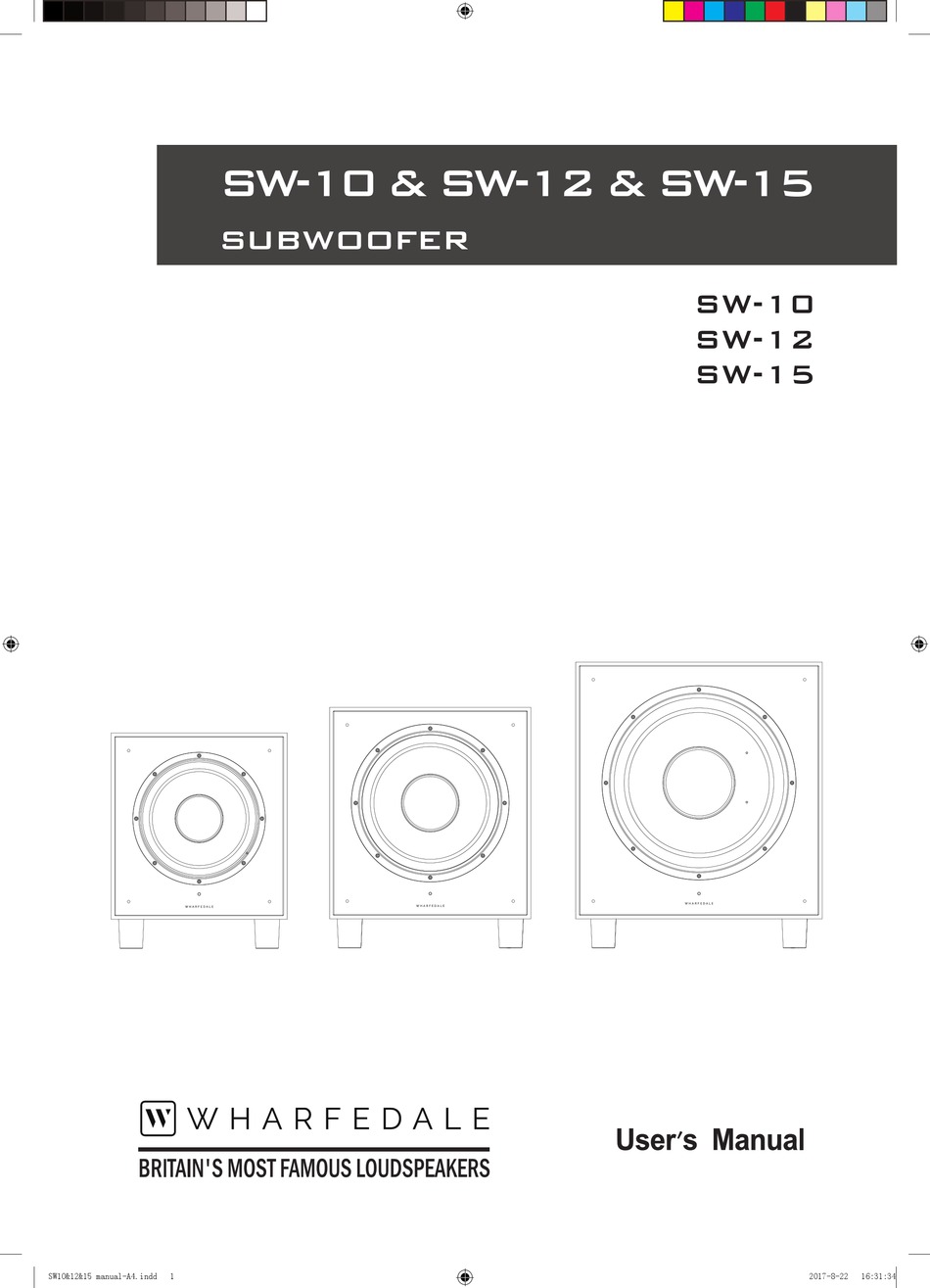

- Page 1 SW-10 & SW-12 & SW-15 subwoofer SW-10 SW-12 SW-15 SW10&12&15 manual-A4.indd 2017-8-22 16:31:34...
-
Page 2: Important Safety Information
USER INSTRUCTIONS: SW-10 & SW-12 & SW-15 SUBWOOFER IMPORTANT SAFETY INFORMATION service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. -
Page 3: Installation
USER INSTRUCTIONS: SW-10 & SW-12 & SW-15 SUBWOOFER INTRODUCTION The SW-10 & SW-12 & SW-15 is the latest in a long line of distinguished Wharfedale active subwoofers. These technologically advanced subwoofers will complement the finest electronics and decor. Please read these instructions carefully before installing your subwoofers. A few minutes studying this manual will ensure superb performance from your subwoofer for many years. - Page 4 USER INSTRUCTIONS: SW-10 & SW-12 & SW-15 SUBWOOFER Before Connecting the Subwoofer • Level the subwoofer taking care to make sure it sits squarely on all its spikes. • Switch off you amplifier and all connected source units at the mains.
- Page 5 USER INSTRUCTIONS: SW-10 & SW-12 & SW-15 SUBWOOFER CONNECTING THE SUBWOOFER TO THE SYSTEM Control Panel of the SW- Subwoofer 1 Auto Sense Switch 2 Phase Switch 3 Crossover Frequency Control 4 Volume Control 5 Line Level Input/LFE Input 6 Mains Power Fuse...
- Page 6 USER INSTRUCTIONS: SW-10 & SW-12 & SW-15 SUBWOOFER CONNECTING THE SUBWOOFER TO THE SYSTEM Control Panel of the SW-5 Subwoofer 1 Auto Sense Switch 2 Phase Switch 3 Crossover Frequency Control 4 Volume Control 5 Line Level Input/LFE Input 6 Mains Power Fuse...
- Page 7 USER INSTRUCTIONS: SW-10 & SW-12 & SW-15 SUBWOOFER A/V Processor Connections Your subwoofer has been designed for optimum performance with a digital processor. If your A/V processor has a line level or LFE subwoofer output you should use this connection. You will need to purchase a single screened RCA phono lead from your dealer.
-
Page 8: Operating Your Subwoofer
Initial Settings Volume Control: Set the subwoofer volume control to the minimum before proceeding. Crossover Control: Adjust frequency to integrate SW-10 or SW-12 & SW-15 subwoofer with your system requirement. Phase Switch: The Phase switch should be initially set to 0°. -
Page 9: Troubleshooting
USER INSTRUCTIONS: SW-10 & SW-12 & SW-15 SUBWOOFER TROUBLESHOOTING Before investigating a problem, always switch off the system at mains. If your system is not working properly please work through this checklist before returning a unit to your dealer. Possible Cause... - Page 10 USER INSTRUCTIONS: SW-10 & SW-12 & SW-15 SUBWOOFER Subwoofer Maintenance Subwoofer should only ever be cleaned with a soft dry cloth to remove fingermarks, etc. Never touch subwoofer drive units as they can be damaged by improper handling. Never use a vacuum cleaner to clean a subwoofer grille. Brush it carefully by hand with a soft brush.
-
Page 11: Specifications
USER INSTRUCTIONS: SW-10 & SW-12 & SW-15 SUBWOOFER Specifications SW-10 SW-12 SW-15 Description/Format Active Dynamic-Drive IB Active Dynamic-Drive IB Active Dynamic-Drive IB subwoofer subwoofer system subwoofer system system Drive Units 1 x (10")250mm cone long-throw 1 x (12")300mm cone long-throw 1 x (15")380mm cone long-throw... - Page 12 IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK Tel: +44(0)1480 452561 Fax: +44(0)1480 413403 http://www.wharfedale.co.uk IAG reserves the right to alter the design and specifications without notice. All rights reserved IAG Group Ltd. Wharfedale is a member of the International Audio Group. CODE: WH14-MNL006a SW10&12&15 manual-A4.indd 2017-8-22...
