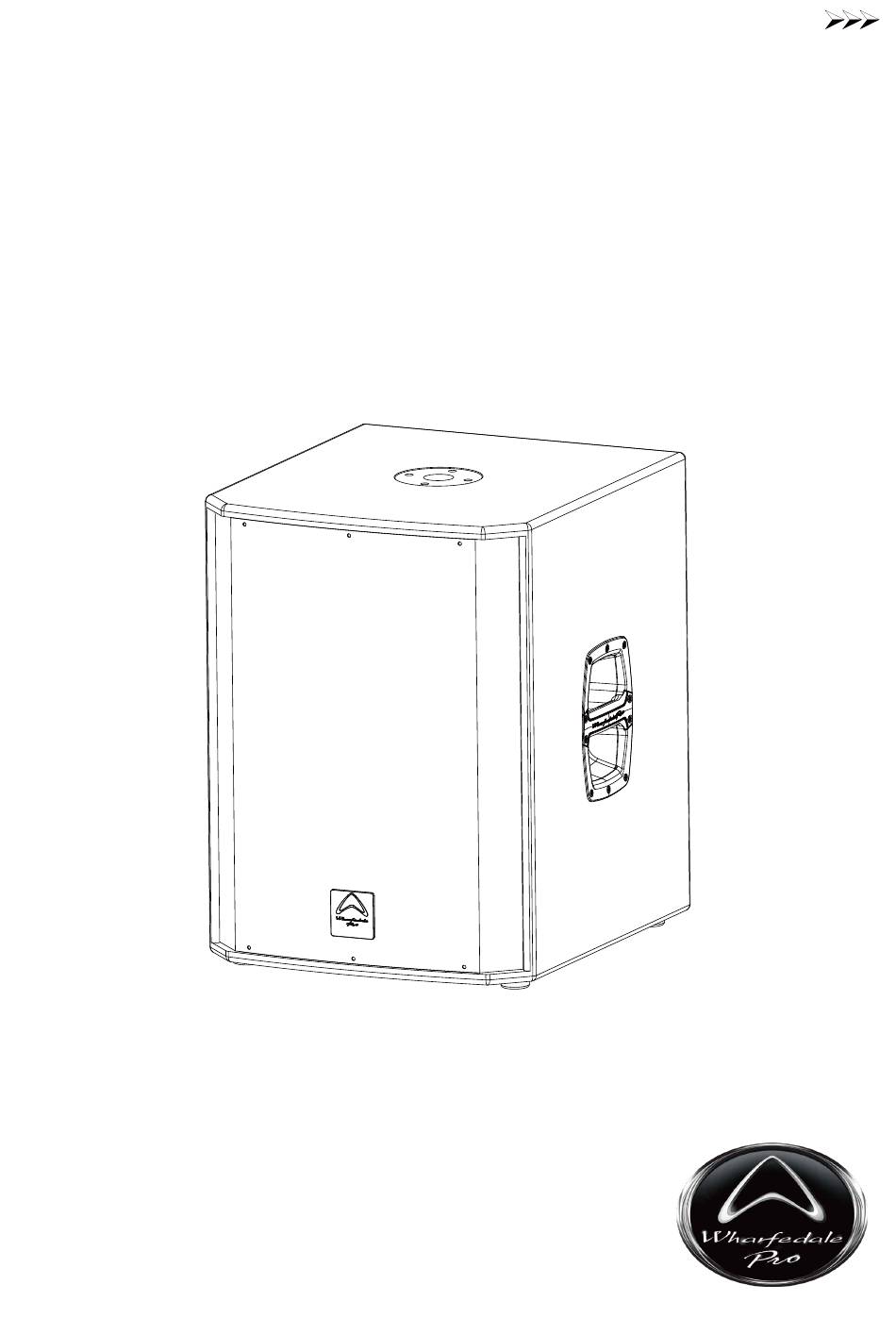

- Page 1 Wharfedale Pro T-Sub-AX15B User manual T-Sub-AX15B ACTIVE SUBWOOFER WWW.WHARFEDALEPRO.COM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT WARNINGS & SAFETY INSTRUCTIONS ……………………………… 1 - 2 EVERYONE LOVES BASS ! ……………………………………………………………… 3 SUGGESTED SETUP ……………………………………………………………………… 4 REAR PANEL FEATURES ……..……..……..……..……..…………………………….. 5 TECHNICAL DRAWINGS …………………………………………………………………. 6 SPECIFICATIONS …………………………………………………………………………. 7... -
Page 3: Important Warnings & Safety Instructions
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS Read these instructions – All the safety and operating instructions should be read before this product is operated. Keep these instructions – The safety and operating instructions should be retained for future reference. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. - Page 4 CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. WARNING：To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
-
Page 5: Everyone Loves Bass

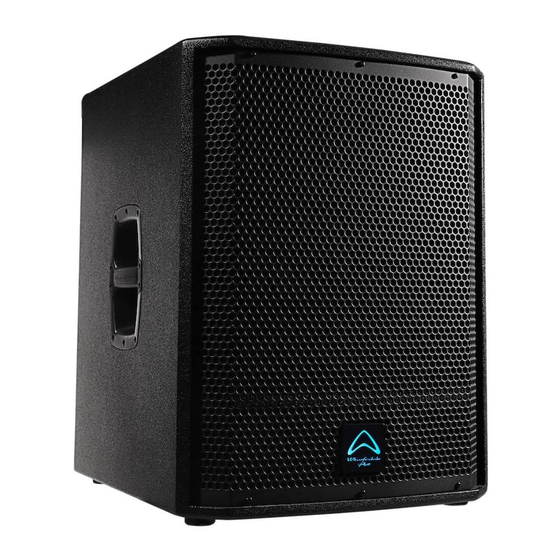

Built for big bass, the plywood constructed cabinet is rock solid and is protected in durable Rhino Rock paint. You’ll not only ‘feel’ the T-Sub-AX15B, but you will also see it! A new illumated WP logo badge subtly glows and adds to the overall on-stage “power” of the new T-Sub. -
Page 6: Suggested Setup
PRESS FOR FINE Input Input DIGITAL MIXING CONSOLE PEAK 2 10 3 11 4 12 5 13 6 14 7 15 8 16 BUS-1 BUS-2 BUS-3 BUS-4 BUS-5&6 BUS-7&8 BUS-9&10 BUS-11&12 SEND-1 SEND-2 SEND-3 SEND-4 SEND-5 SEND-6 SEND-7 SEND-8 T-Sub-AX15B T-Sub-AX15B... -
Page 7: Rear Panel Features
REAR PANEL FEATURES 1. T-Sub-AX15B uses convection cooling. Although there is no internal fan, always ensure that when in use the surrounding area is clear from obstructions so that radiated heat can escape. 2. 0° to 180° phase reversal switch 3. -
Page 8: Technical Drawings
TECHNICAL DRAWINGS T-Sub-AX15B 523.9 454.0 BLOCK DIAGRAM... -
Page 9: Specifications
SPECIFICATIONS Model Name T-Sub-AX15B System Type Active 15" Subwoofer Frequency Response (+/-3dB) 45Hz-200Hz Sensitivity @ 1W / 1m) 97dB Maximum SPL (peak @1m) 129dB Low Frequency Transducer Size (mm / inches) 404mm / 15” Coil Size (mm / inches) Quad layer 3.0"... - Page 12 Wharfedale Pro products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorised Wharfedale Pro dealer or distributor for information. Please be aware that the warranty details may differ from country to country. Contact your dealer or distributor for information (available at www.wharfedalepro.com).
