Wharfedale Pro WLA-218BXF Quick Start Manual

Your full user manual can also be downloaded from
www.wharfedalepro.com

KEY FEATURES

• Dual 18" Passive subwoofer
• IPX6 Waterproof certification
• Wax wrapped components
• Anti-corrosion stainless steel hardware
• Waterproof input connector

SPECIFICATIONS

Model Name
Configuration
Frequency Response (+/- 3 dB)
Frequency Range (- 10 dB)
(Passive)Sensitivity 2.83 v / 1 m
(Passive)Calculated Maximum SPL @1 m
System Rated Impedance
Low Frequency Transducer
Size (mm / inches)
Voice coil size (mm / inches)
LF Magnet Material
LF Frame Material
Rated Impedance
LF Power re:AES2-2012
Nominal Coverage (H x V)
System Continuous Power (w)
System Programme Power (w)
System Peak Power (w)
Crossover frequency
Input Connector
Enclosure Material and finish 18 mm plywood/3.0 mm Aluminium
Colour Options
Grille Material & Finish
Dimensions - Unpacked (mm / inches):
Dimensions - Packed (mm / inches):
Net Weight (kg / lbs)
Gross Weight (kg / lbs)
Note : Specifications may be subject to change without notice.
• System Continuous Power 2000 W
• System Programme Power 4000 W
• System Peak Power 8000 W
• Impedance 4 Ω
• 18 mm Plywood construction
3.0 mm Aluminium

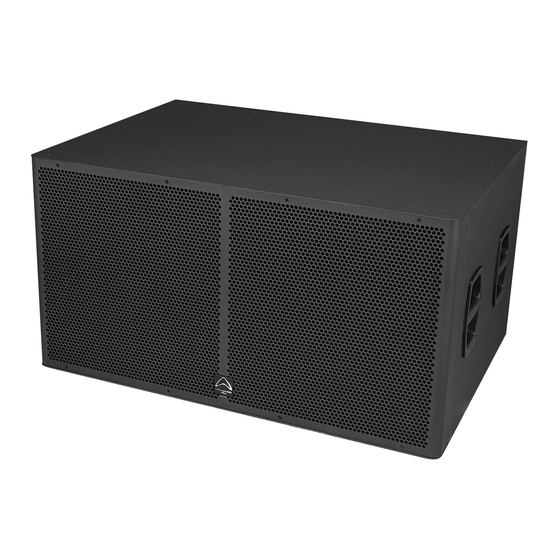

WLA-218BXF
System Type Passive
2 x 18" Subwoofer
30-800 Hz
25-1.0 KHz
109 dB
148 dB
470 mm / 18''
102 mm / 4.0''
ferrite
aluminium
8 Ω x 2
1000 W x 2
2000 W
4000 W
8000 W
1XWY-24K4Z (waterproof)
Rigging
pole mount
handles
Enclosure
cabinet type square
Water proof black paint
3.0 mm Black Aluminium
Height front 568 mm / 22.4"
Height Rear 1073 mm / 12.2"
Width 1073 mm / 12.2"
Depth 757 mm / 29.8"
Height 644 mm / 25.4"
Width Front 1143 mm / 45.0"
Width Rear 1143 mm / 45.0"
Depth 827 mm / 32.6"
Weight
97.0 kg / 213.4 lbs
111.0 kg / 244.2 lbs
WLA-218BXF
QUICK START GUIDE
4 Ω
NO
yes

OVERVIEW

1073.0
