TR-800XXL-4
80 Ton Capacity (72.6 Metric Tons)
HYDRAULIC ROUGH TERRAIN CRANE

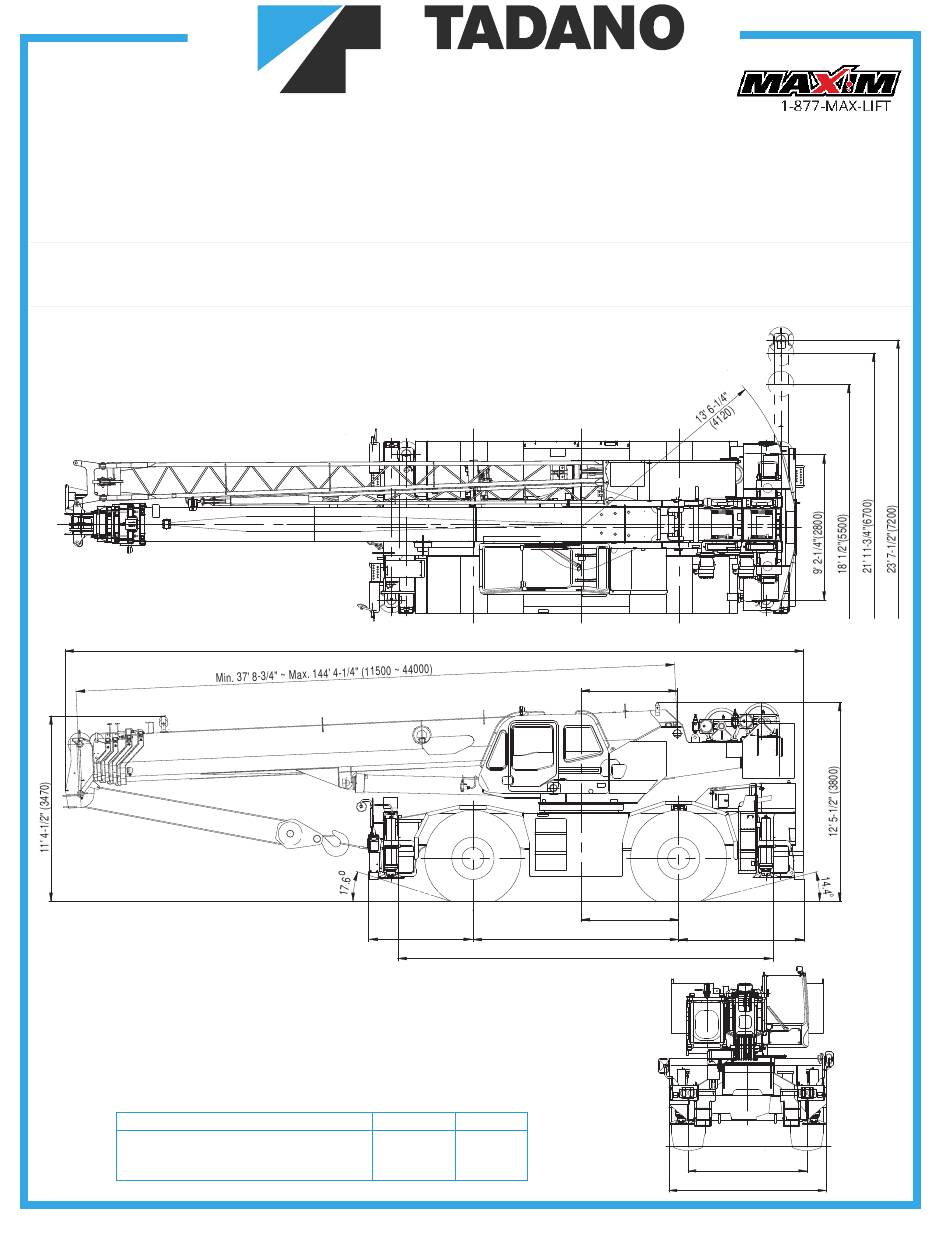

GENERAL DIMENSIONS
(29.5 X 25 Tires)
Turning radius
4 wheel steer
2 wheel steer
DIMENSION
46' 8-1/4" (14230)
6' 7-3/4"(2025)
12' 11-1/2"(3950)
23' 7-1/3" (7200)
Feet
Meters
21' 11-3/4"
6.7
39' 1/2"
11.9
1
6' 7/8"(1850)
6' 1-7/8"(1875)
7' 10-1/2"(2400)
8' 2-1/2" (2502)
10' 10-1/2" (3315)
Specifications are subject to change without notice
Advertisement
Related Manuals for Tadano TR-800XXL-4
Summary of Contents for Tadano TR-800XXL-4
- Page 1 TR-800XXL-4 80 Ton Capacity (72.6 Metric Tons) HYDRAULIC ROUGH TERRAIN CRANE DIMENSION 46' 8-1/4" (14230) 6' 7/8"(1850) 6' 1-7/8"(1875) 6' 7-3/4"(2025) 12' 11-1/2"(3950) 7' 10-1/2"(2400) 23' 7-1/3" (7200) GENERAL DIMENSIONS (29.5 X 25 Tires) Feet Meters Turning radius 4 wheel steer 21' 11-3/4"...
- Page 2 CRANE SPECIFICATIONS BOOM DRUM - Grooved 15-3/4"(0.40m) root diameter x 22-3/4"(0.578m) Five section full power synchronized telescoping boom, wide. Wire rope: 436' of 3/4"diameter rope (133m of 19mm). Drum 37.7'~144.4'(11.5m~44.0m), of round hexagonal box construction capacity: 1,096' (334m) 7 layers. Maximum line pull (permissible): with 7 sheaves, 17-5/16"...
- Page 3 TADANO AML-L monitors outrigger extended length and Tadano electronic LOAD MOMENT INDICATOR system (AML-L) automatically programs the corresponding "RATED LIFTING including: CAPACITIES" table. Control lever lockout function Boom angle / boom length / jib offset angle / load radius /...
- Page 4 - Anti-Two block device (overwind cutout) - 29.5-25 22PR (OR) or 29.5-25 28PR(OR) tires - Boom angle indicator - Disc brakes - Tadano electronic load moment indicator system (AML-L) - Fenders - Outrigger extension length detector - Air dryer - Electronic crane monitoring system...
- Page 5 TR-800XXL WORKING RANGE CHART Telescoping Mode I Telescoping Mode II 220' 220' 210' 210' 200' 200' 190' 190' 180' 180' 170' 170' 160' 160' 150' 150' 140' 140' 130' 130' 120' 120' 110' 110' 100' 100' 90' 100' 110' 120' 130' 140' 150'...
- Page 6 TR-800XXL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 23' 7-1/2'' (7.2m) SPREAD ROTATION 37.7' 64.4' (19.62m) 91' (27.75m) 117.7' (35.87m) 131' 144.4' (11.5m) (15.56m) (39.93m) (44.0m) 160,000 75 103,600 78 88,100 78 44,000 125,000 72 103,600 76 88,100 76 44,000 108,000 69 103,600 73...
- Page 7 TR-800XXL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 23' 7-1/2'' (7.2m) SPREAD ROTATION 144.4' (44.0m) Boom + 32.5' (9.9m) Jib 144.4' (44.0m) Boom + 58.1' (17.7m) Jib offset offset offset offset offset offset 32.7' 9,900 44.5' 8,800 52.7' 8,100 40.6' 5,900...
- Page 8 TR-800XXL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID. EXTENDED 21' 11-3/4'' (6.7m) SPREAD ROTATION 37.7' 64.4' (19.62m) 91' (27.75m) 117.7' (35.87m) 131' 144.4' (11.5m) (15.56m) (39.93m) (44.0m) 160,000 75 103,600 78 88,100 78 44,000 125,000 72 103,600 76 88,100 76 44,000 108,000 69 103,600 73...
- Page 9 TR-800XXL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID. EXTENDED 21' 11-3/4'' (6.7m) SPREAD ROTATION 144.4' (44.0m) Boom + 32.5' (9.9m) Jib 144.4' (44.0m) Boom + 58.1' (17.7m) Jib offset offset offset offset offset offset 32.7' 9,900 44.5' 8,800 52.7' 8,100 40.6' 5,900...
- Page 10 TR-800XXL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID. EXTENDED 18' 1/2'' (5.5m) SPREAD ROTATION 37.7' 64.4' (19.62m) 91' (27.75m) 117.7' (35.87m) 131' 144.4' (11.5m) (15.56m) (39.93m) (44.0m) 160,000 75 103,600 78 88,100 78 44,000 125,000 72 103,600 76 88,100 76 44,000 108,000 69 103,600 73...
- Page 11 TR-800XXL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID. EXTENDED 18' 1/2'' (5.5m) SPREAD ROTATION 144.4' (44.0m) Boom + 32.5' (9.9m) Jib 144.4' (44.0m) Boom + 58.1' (17.7m) Jib offset offset offset offset offset offset 32.7' 9,900 44.5' 8,800 52.7' 8,100 40.6' 5,900...
- Page 12 TR-800XXL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MIN. EXTENDED 9' 2-1/4'' (2.8m) SPREAD ROTATION 37.7' 64.4' (19.62m) 91' (27.75m) 117.7' (35.87m) 131' 144.4' (11.5m) (15.56m) (39.93m) (44.0m) 84,100 77,900 76,000 44,000 62,000 58,200 56,800 44,000 42,400 40,000 39,000 43,800 41,700 30,800 25,700...
- Page 13 1. RATED LIFTING CAPACITIES apply only to the machine as longer radius to determine allowable capacity. originally manufactured and normally equipped by TADANO 11. Load per line should not exceed 12,300 lbs. (5,600kg) for LTD. Modifications to the machine or use of optional main winch and auxiliary winch.
- Page 14 TR-800XXL RATED LIFTING CAPACITIES (IN POUNDS) ON RUBBER Stationary Creep OVER FRONT OVER FRONT ROTATION 37.7' 64.4' 37.7' 64.4' 37.7' 64.4' (11.5m) (19.62m) (27.75m) (11.5m) (19.62m) (27.75m) (11.5m) (19.62m) (27.75m) 71,200 49,500 55,200 62,200 41,700 47,800 51,600 29,400 39,200 39,400 35,300 18,000 21,300...
- Page 15 WARNING AND OPERATING INSTRUCTIONS FOR USING THE LOAD MOMENT INDICATOR (AML-L) 1. When operating crane on outriggers: When a load is lifted in the front position and then swung Set P.T.O. switch to "ON". to the side area, make sure the value of the LOAD Press the outrigger mode select key to register for the MOMENT INDICATOR(AML-L) is below the 360 lifting...
- Page 16 MEMO TADANO AMERICA CORPORATION 333 NORTHPARK CENTRAL DRIVE, SUITE Z, HOUSTON, TEXAS 77073 U.S.A. PHONE: (281) 869-0030 EXT.315 FAX: (281) 869-0040 Web site: www.tadanoamerica.com E-mail: sales@tadano-cranes.com Form No. GR-800-1-00101/US-03...
