Tadano GR-800XL Manual

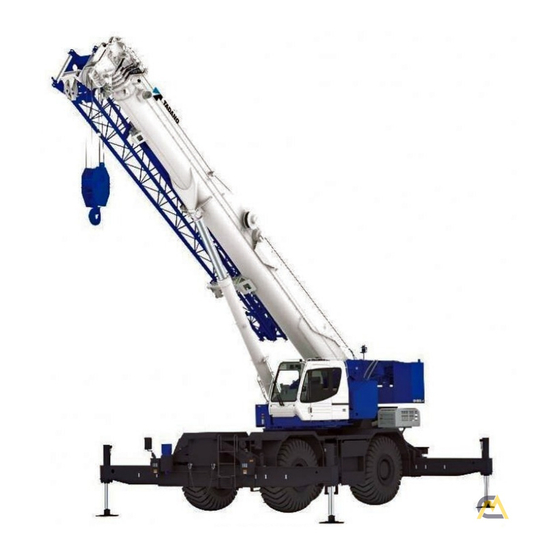

80 ton capacity (72.6 metric tons) hydraulic rough terrain crane
Hide thumbs

Advertisement

Quick Links

Download this manual
80 Ton Capacity (72.6 Metric Tons)
HYDRAULIC ROUGH TERRAIN CRANE

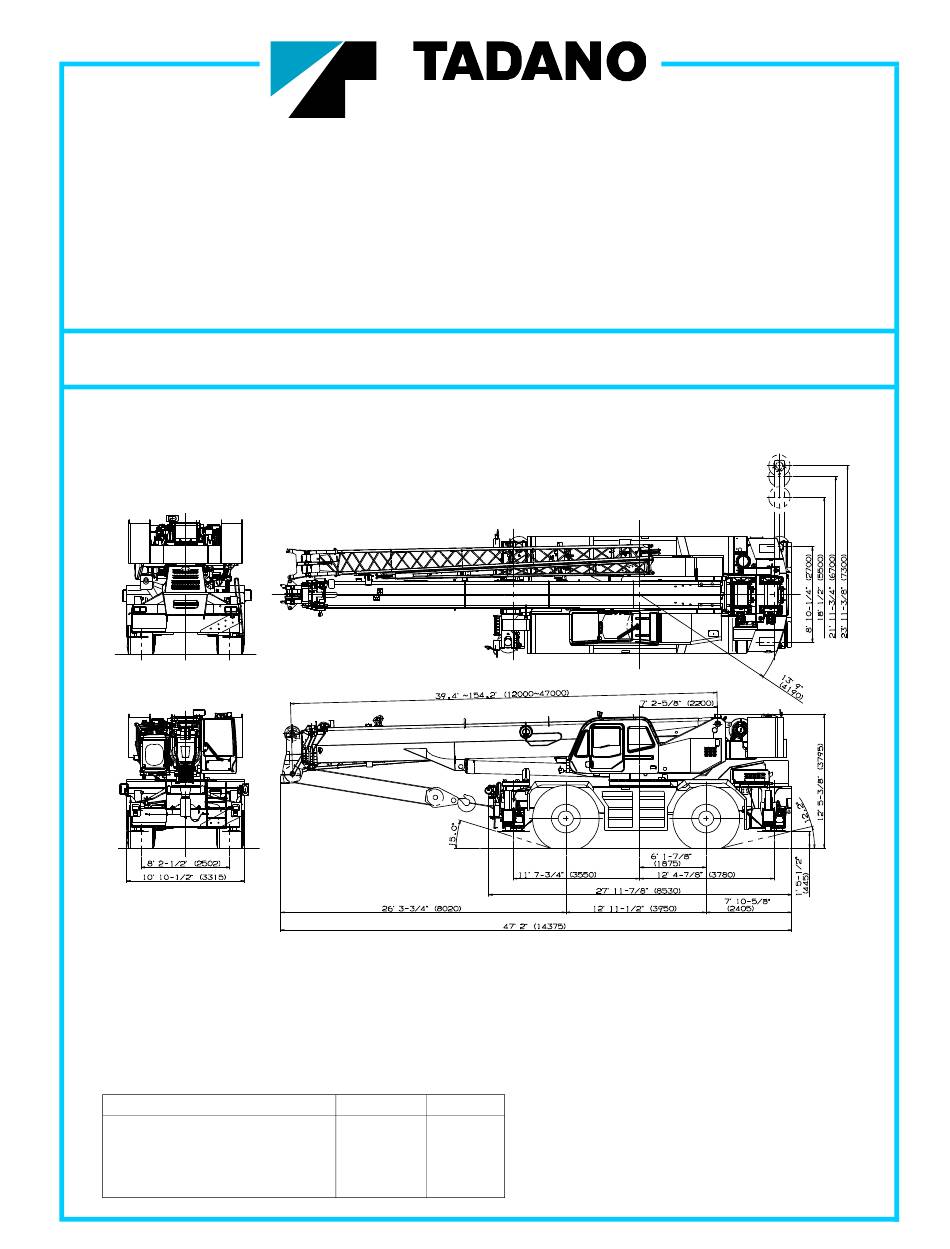

GENERAL DIMENSIONS
(29.5 - 25 Tires)
Turning radius
4 wheel steer
2 wheel steer
Tail swing of counterweight
GR-800XL
DIMENSIONS
Feet
Meters
22' 4"
6.8
39' 1"
11.9
13' 9"
4.19
Note : Dimension is with boom angle at -1.5 degree.
Specifications are subject to change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GR-800XL and is the answer not in the manual?

Questions and answers

Related Manuals for Tadano GR-800XL

Summary of Contents for Tadano GR-800XL

  • Page 1 GR-800XL 80 Ton Capacity (72.6 Metric Tons) HYDRAULIC ROUGH TERRAIN CRANE DIMENSIONS Note : Dimension is with boom angle at -1.5 degree. GENERAL DIMENSIONS (29.5 - 25 Tires) Feet Meters Turning radius 4 wheel steer 22' 4" 2 wheel steer 39' 1"...

  • Page 2: Crane Specifications

    CRANE SPECIFICATIONS BOOM WIRE ROPE - Non-rotating 3/4" (19mm) 7x35 class. Five section full power synchronized telescoping boom, Breaking strength (Main and Aux): 72,800 lbs (33,000 kg) 39.4'~154.2' (12.0m~47.0m), of round box construction with seven sheaves, 17-5/16" (0.44m) root diameter, at boom head. HOOK BLOCKS The synchronization system consists of two telescope cylinders, 80 ton (72.6 metric ton) - 8 sheaves with swivel hook block and safety latch.
  • Page 3 Tadano electronic LOAD MOMENT INDICATOR system TADANO AML-C monitors outrigger extended length and (AML-C) including: automatically programs the corresponding "RATED LIFTING Control lever lockout function CAPACITIES" table Boom position indicator Outrigger state indicator Operator's right hand console includes transmission gear Boom angle / boom length / jib offset angle / jib length / load selector and sight level bubble.

  • Page 4: Standard Equipment

    - Winch over-unwinding prevention - Fenders - Boom angle indicator - Air dryer - Tadano electronic load moment indicator system (AML-C) - Water separator with filter(high filtration) - Outrigger extension length detector - Engine over-run alarm - Electronic crane monitoring system...
  • Page 5 GR-800XL WORKING RANGE CHART...
  • Page 6 GR-800XL WORKING RANGE CHART...
  • Page 7 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 23' 11-3/8"(7.3m) SPREAD ROTATION 39.4' 53.7' 68.1' (20.8m) 82.4' (25.1m) 96.8' (29.5m) 111.1' (33.9m) 125.5' (38.3m) 139.8' (42.6m) 154.2' (12m) C (16.4m) C C (47m) 160,000 102,700 160,000 102,700 90,200...
  • Page 8 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 23' 11-3/8"(7.3m) SPREAD ROTATION 154.2' (47.0m) Boom + 33.2' (10.1m) Jib 154.2' (47.0m) Boom + 58.1' (17.7m) Jib offset offset offset offset offset offset 37.8' 10,800 51.5' 10,800 58.8' 9,400 45.8'...
  • Page 9 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 21' 11-3/4"(6.7m) SPREAD ROTATION 39.4' 53.7' 68.1' (20.8m) 82.4' (25.1m) 96.8' (29.5m) 111.1' (33.9m) 125.5' (38.3m) 139.8' (42.6m) 154.2' (12m) C (16.4m) C C (47m) 160,000 102,700 160,000 102,700 90,200...
  • Page 10 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 21' 11-3/4"(6.7m) SPREAD ROTATION 154.2' (47.0m) Boom + 33.2' (10.1m) Jib 154.2' (47.0m) Boom + 58.1' (17.7m) Jib offset offset offset offset offset offset 37.8' 10,800 51.5' 10,800 58.8' 9,400 45.8'...
  • Page 11 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 18' 1/2"(5.5m) SPREAD ROTATION 39.4' 53.7' 68.1' (20.8m) 82.4' (25.1m) 96.8' (29.5m) 111.1' (33.9m) 125.5' (38.3m) 139.8' (42.6m) 154.2' (12m) C (16.4m) C C (47m) 160,000 102,700 160,000 102,700 90,200...
  • Page 12 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 18' 1/2"(5.5m) SPREAD ROTATION 154.2' (47.0m) Boom + 33.2' (10.1m) Jib 154.2' (47.0m) Boom + 58.1' (17.7m) Jib offset offset offset offset offset offset 37.8' 10,800 51.5' 10,800 58.8' 9,400 45.8'...
  • Page 13 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MIN EXTENDED 8' 10-5/16"(2.7m) SPREAD ROTATION 39.4' 53.7' 68.1' (20.8m) 82.4' (25.1m) 96.8' (29.5m) 111.1' (33.9m) 125.5' (38.3m) 139.8' (42.6m) 154.2' (12m) C (16.4m) C C (47m) 143,900 102,700 94,900 93,000 90,200...
  • Page 14 1. RATED LIFTING CAPACITIES apply only to the machine as 11. Load per line should not exceed 14,600 lbs. (6,600kg) for originally manufactured and normally equipped by TADANO main hoist and auxiliary hoist. LTD. Modifications to the machine or use of optional 12.
  • Page 15 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON RUBBER Stationary Creep Over Front Over Front Rotation 39.4' 68.1' 96.8' 39.4' 68.1' 96.8' 39.4' 68.1' 96.8' (12m) (20.8m) (29.5m) (12m) (20.8m) (29.5m) (12m) (20.8m) (29.5m) 60,000 38,000 45,000 49,600 28,500 36,600 20,000...
  • Page 16 -110 -330 -149 6. Removable counterweight [self-removable] -22,000 9,350 -31,350 -9,979 4,240 -14,219 (with Auxiliary hoist & wire rope) TADANO AMERICA Corporation 4242 West Greens Road Houston, Texas, 77066 U.S.A. Phone: (281) 869-0030 Fax: (281) 869-0040 www.tadanoamerica.com Form No. TAC-GR-800-3-00311-04042017...
