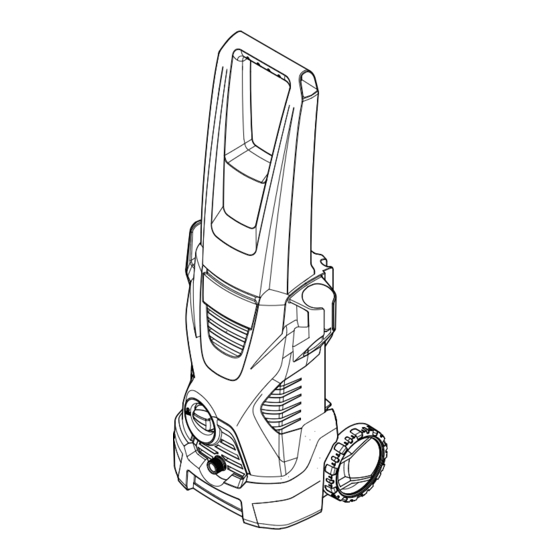

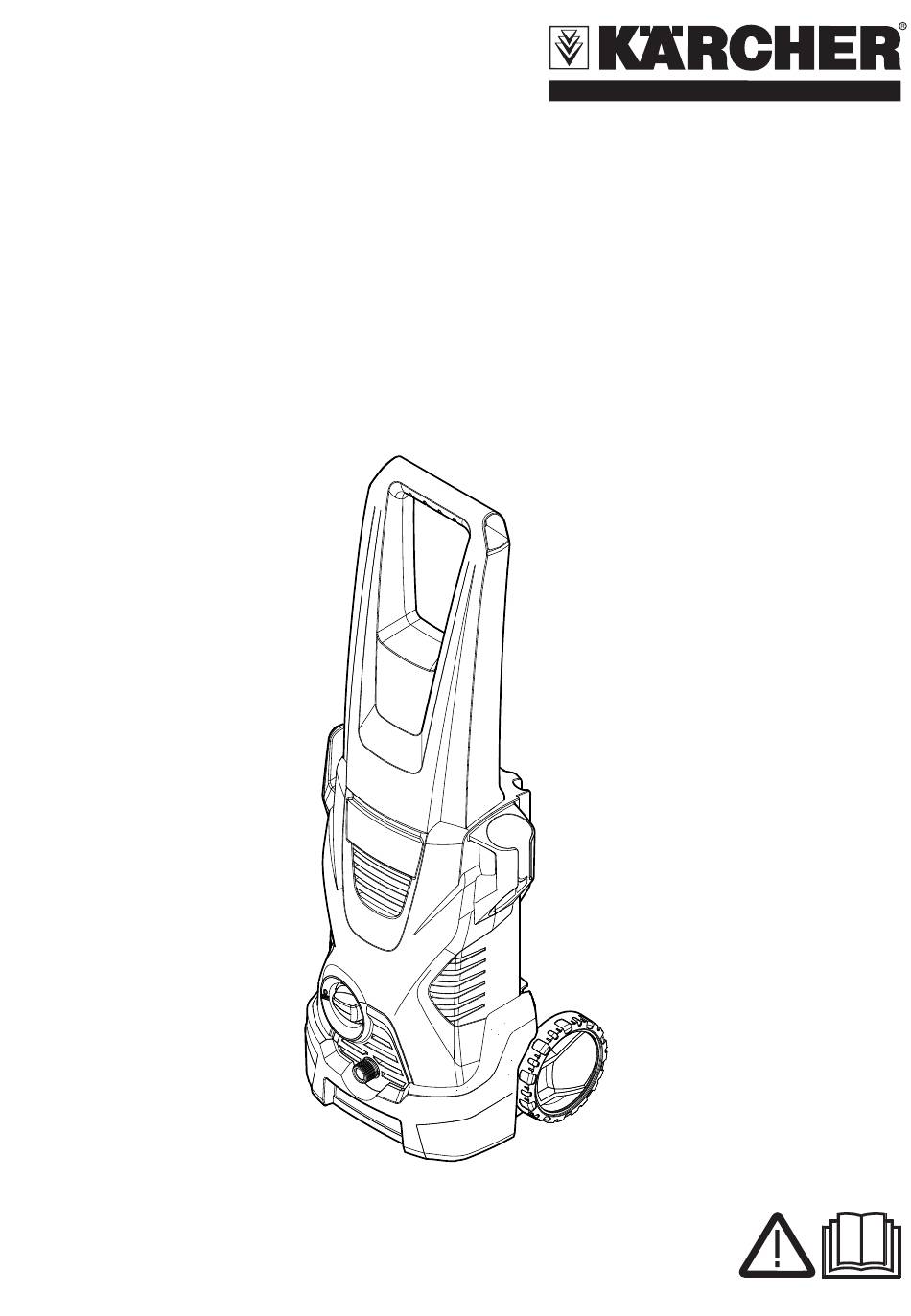

- Page 1 K 2.190 Operating Instructions Before first use of the unit read these operating instructions and act in accordance with them. 59664390 (04/14)
- Page 2 Contents General information ....Safety instructions ....Description of the Appliance ..Operation.
- Page 3 General information Dear Customer, Symbols on the machine Please read and comply with these original instructions prior The high pressure jet may not to the initial operation of your appliance and be directed at persons, ani- store them for later use or subsequent own- mals, live electrical equipment ers.
- Page 4 Safety instructions paint thinner and heating oil. The spray Danger Never touch the mains plug and the mist thus generated is highly inflamma- socket with wet hands. ble, explosive and poisonous. Do not The appliance must not be used if the use acetone, undiluted acids or sol- power cord or important parts of the ap- vents as they are damaging to the ma-...
- Page 5 other persons, in particular children, Safety Devices who are nearby. Do not use the appliance when there Caution are other persons around unless they Safety devices protect the user and must are also wearing safety equipment. not be modified or bypassed. ...
- Page 6 Description of the Appliance 1 High pressure connection 9 Coupling element for water connection 2 Appliance switch "0/OFF“/ „I/ON“ 10 Mains cable with mains plug 3 Storage hook for high pressure hose 11 Bearing wheel and mains connection cable 12 Trigger gun 4 Transport handle 13 Lock trigger gun 5 Storage for spray lance...
- Page 7 Operation Illustration Before Startup Screw the coupling element to the wa- Assemble appliance as shown on page 10. ter connection on the appliance. Mount loose parts delivered with appliance Push the water supply hose onto the prior to start-up. coupling unit, then connect it to the wa- Illustration ter supply.
- Page 8 Start up Working with detergent Caution Please use exclusively KÄRCHER deter- Dry runs lasting longer than two minutes gents and care products to carry out the re- lead to damages to the high pressure spective cleaning task, as these were pump.
- Page 9 Transport Finish operation Caution Caution Only separate the high-pressure hose from In order to prevent accidents or injuries, the trigger gun or the appliance while there keep in mind the weight of the appliance is no pressure in the system. during transport (see Specifications).
- Page 10 Storage Maintenance and care Caution Danger In order to prevent accidents or injuries, Turn off the appliance and remove the keep in mind the weight of the appliance mains plug prior to any care and mainte- when selecting a storage location for it (see nance work.
- Page 11 Troubleshooting Appliance is leaking You can rectify minor faults yourself with Slight leakage from the appliance pump the help of the following overview. is normal. If the leakage increases con- If in doubt, please consult the authorized tact the authorized customer service. customer service.
- Page 12 Customer Service Technical specifications Australia Electrical connection KÄRCHER Pty. Ltd. Voltage 220-240 40 Koornang Road 1~50/60 Scoresby, Victoria 3179 Power consumption 1800 675 714 (Free Call) Protection class IP X5 www.karcher.com.au Protective class Mains fuse (slow-blow) 10 A Water connection Max.
- Page 13 Notes English 13...
- Page 14 Assembly 14 English...
- Page 15 Spare Parts...
