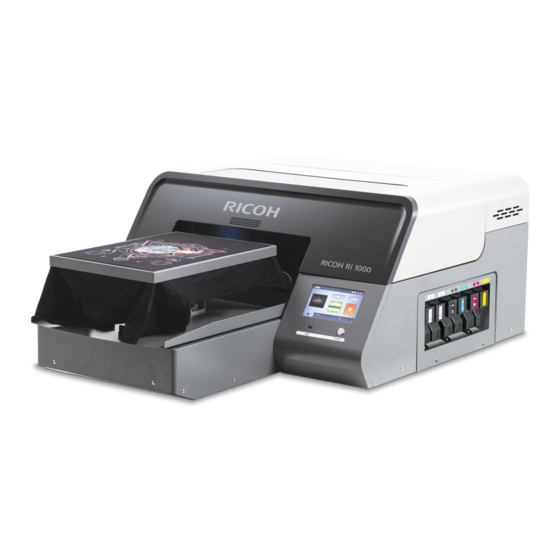

Ricoh Ri 1000 Manual
Procedure for long-term storage
Hide thumbs
Also See for Ri 1000:
- Parts replacement (265 pages) ,
- Operator training (197 pages) ,
- User manual (141 pages)
Related Manuals for Ricoh Ri 1000
Summary of Contents for Ricoh Ri 1000
- Page 1 RICOH Ri 1000 Procedure for long-term storage RICOH Ri 1000 Procedure for long-term storage Version 1.0.0 1 / 22...
- Page 2 RICOH Ri 1000 Procedure for long-term storage Where to Inquire For inquiries, contact your sales or service representative. 2 / 22...
- Page 3 RICOH Ri 1000 Procedure for long-term storage Contents 1. Introduction............................4 2. Procedure for long-term storage ....................5 3. Attaching the head protection cover ................... 6 Guide to the head protection cover ......................6 Removing the head protection cover ..................... 11 Installation/removal of head protection cover with cleaning solution ..........
- Page 4 RICOH Ri 1000 Procedure for long-term storage 1. Introduction. This procedure is the best procedure that improved the contents described in User manual. Please do this procedure. If you haven’t the head protection cover, contact your sales or service representative.
- Page 5 RICOH Ri 1000 Procedure for long-term storage 2. Procedure for long-term storage This is necessary to keep the printer in optimal condition and avoid potential damage that can be easily prevented. If the printer is left powered off for 12 hours or more, attach a head protection cover to the carriage to protect the print head.
- Page 6 RICOH Ri 1000 Procedure for long-term storage 3. Attaching the head protection cover Installing the head protection cover will protect the print head from damage even when the automatic maintenance function is not working because the power is off. IMPORTANT! Turn off the printer before attaching the head protection cover.
- Page 7 RICOH Ri 1000 Procedure for long-term storage machine. 2. Move the head protection cover under the carriage. We recommend that the head protection cover be moved under the carriage by standing on the right side of the printer, in front of the maintenance unit, and passing it through the guide rods from above.
- Page 8 RICOH Ri 1000 Procedure for long-term storage After passing through the guide rod, move the head protection cover to the bottom of the carriage, keeping it parallel to the guide rod and carriage so that the cap is horizontal. At this time, please keep the cap surface of the head protection cover facing toward the upper carriage.
- Page 9 RICOH Ri 1000 Procedure for long-term storage [Left side] When installing the head protection cover standing on the right side of the printer, in front of the maintenance unit, the two claws can be seen from the person installing the cover as shown below.
- Page 10 RICOH Ri 1000 Procedure for long-term storage rests against the corner of the carriage. The pawl on the side of the carriage that is not visible because it is in the shadow of the carriage should be handled with the head protection cover parallel to the guide rod...
- Page 11 RICOH Ri 1000 Procedure for long-term storage installation again. Check if the claw on the side that is not visible in the shadow of the carriage when the head protection cover is installed is properly engaged. Removing the head protection cover 1.Check the carriage position.
- Page 12 RICOH Ri 1000 Procedure for long-term storage 3.Remove the head protection covers from the carriage by pushing it downwards. The claw on the left side of the head protection cover can be removed at the same time when the head protection cover is pushed down.
- Page 13 RICOH Ri 1000 Procedure for long-term storage If it is difficult to check the position of the head, use a mirror to check the position. Installation/removal of head protection cover with cleaning solution IMPORTANT! If the amount of cleaning solution to be added to the head protection cover is not sufficient, or if cleaning solution spills out during installation, the head will not be protected correctly.
- Page 14 RICOH Ri 1000 Procedure for long-term storage 2.Fill all caps of the head protection cover with cleaning solution using a dropper. Secure approximately 2 ml of cleaning solution from the bottle of cleaning solution. Place approximately 1 ml of cleaning solution, secured with a dropper, inside the cap.
- Page 15 RICOH Ri 1000 Procedure for long-term storage carriage so as not to spill it. When the head protection cover is tilted, the angle at which the cleaning liquid inside the cap spills out is "left to right: approx. 30 degrees" and "front to back: approx. 10 degrees"...
- Page 16 RICOH Ri 1000 Procedure for long-term storage How to check the condition of the installation of the head protection cover with cleaning solution 1.Install the head protection cover filled with cleaning solution. See Attaching the head protection cover for installation instructions.
- Page 17 RICOH Ri 1000 Procedure for long-term storage 4. Preparing Your Printer for Storage/Shipping Note: Please have cleaning cartridges available for all channels Clean the Maintenance Unit. 1． For details about how to clean, see “How to Clean the Maintenance Unit and the Flushing box”...
- Page 18 RICOH Ri 1000 Procedure for long-term storage ６． Press [CLEANER CHARGING]. ７．Press [ALL COLOR]. ８．Confirm by pressing [YES] to charge the system with cleaning solution. ９．Attach the head protection cover to the carriage. For information on how to attach the head protection cover, see "Attaching the head protection cover".
- Page 19 RICOH Ri 1000 Procedure for long-term storage 5. Prevention of habituation of bellows １．When stored for a long period of time, the bellows at the bottom of the platen may become distorted, causing problems when restarting. For this reason, please take the following measures so that the bellows does not become peculiar.
- Page 20 RICOH Ri 1000 Procedure for long-term storage 2． Remove the platen (*1) ３． Lower the table to the bottom (*1) 20 / 22...
- Page 21 RICOH Ri 1000 Procedure for long-term storage ４． Slowly push the platen in until it reaches the area shown in the photo. (*2) （*1）:If you don't do steps ② and ③, the head protection cover will collide with the table and the head protection cover will come off, so be careful.
- Page 22 RICOH Ri 1000 Procedure for long-term storage 22 / 22...
