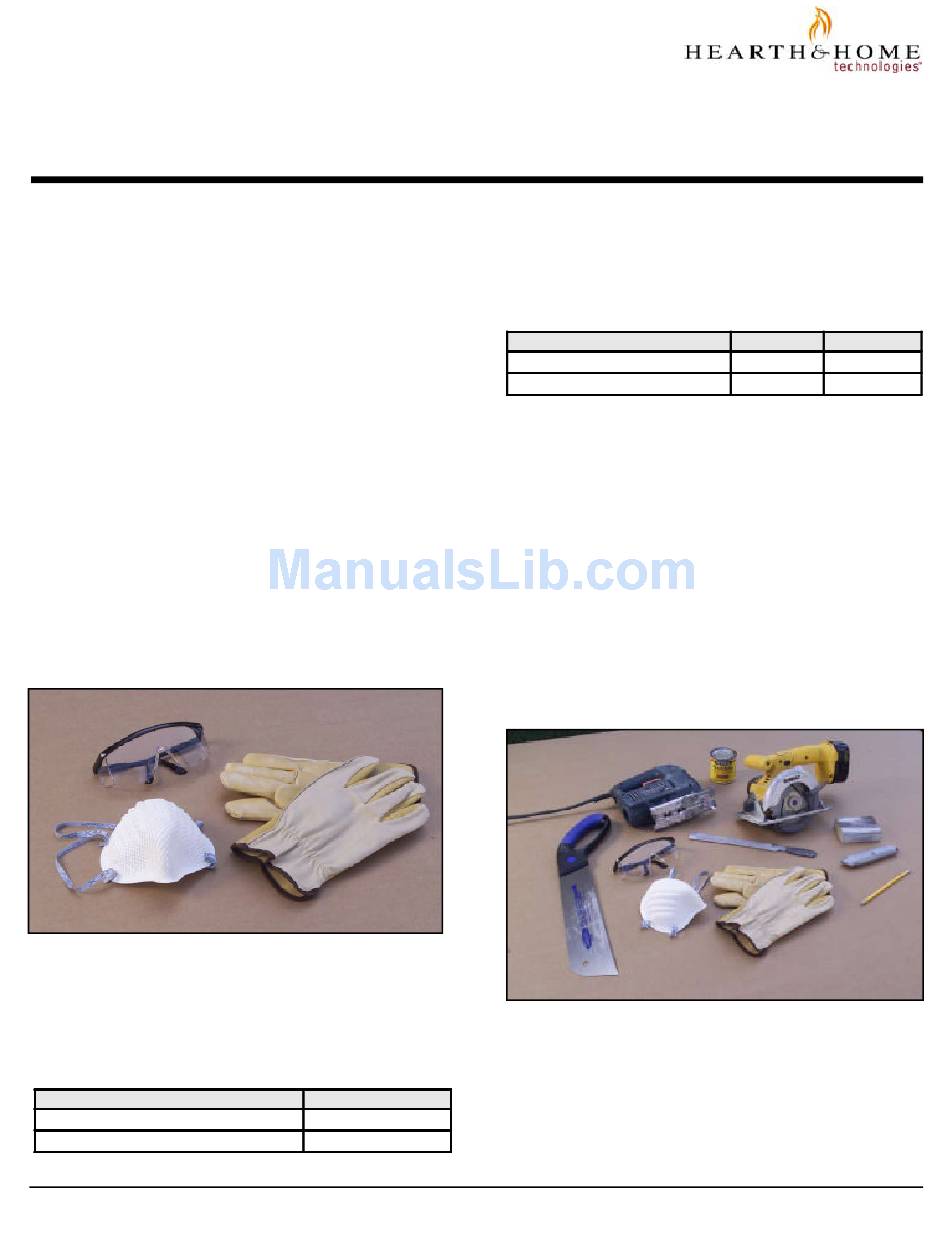

Hearth & Home FBG-4832-EDGE Installation Instructions

Cutting edge insert surround

Advertisement

Quick Links

HANDLING

Treat this surround with the same care you would any
marble, tile, slate or other natural material. Although the
material is robust, it is susceptible to chipping or cracking
if not handled with the proper care. Try to manipulate the
surround by holding on to the metal brackets and lifting
from the center of the surround.

SAFETY

CAUTION: Dust raised when cutting and sanding this
material contains crystalline silica (Quartz-CAS #14808-60-
7), which has been classified by the International Agency for
Research on Cancer (IARC) as a probable Carcinogen (Class
2A). Other Hazardous Ingredients- Aluminum Silicate
CAS#1302-78-9 and Fibrous Glass CAS#65997-17-3.
When sawing or cutting this material, wear a properly fit-
ted dust mask or respirator, safety glasses or goggles,
and gloves (see Figure 1). Whenever possible, cutting or
sanding of this material should be done outdoors. If cut-
ting or sanding indoors, provide mechanical ventilation and
dust collection to keep dust levels down.
Figure 1
If dust from sanding or cutting comes in contact with the
eyes, flush eyes with water to remove dust. If irritation
persists, seek medical attention.

Service Parts List

Description
Template
ON/OFF Rocker Switch
Printed in U.S.A.
Copyright 2003
Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
Cutting Edge Insert Surround
FBG-4832-EDGE, FBIN-4432-EDGE
- Installation Instructions -
Part No.
2009-952
060-511

FIREPLACE SIZE

The minimum fireplace opening that this surround can
be used on is slightly larger than if a metal surround were
used.
Insert Surround
FBG-4832-EDGE
FBIN-4432-EDGE
Do not cut the surround smaller than these dimensions.

TOOLS NEEDED

When trimming the surround for an inside or custom fit,
some or all of the following tools will be needed (see Figure 2).
• Safety Equipment as noted above
• Pencil or marker for tracking
• Masking tape
• Utility knife to cut template to correct size and shape
• Cutting tool: jig saw, circular saw or hand-saw
• Finishing tool: file or sanding block for minor adjustments
• Finish: stain or paint if finish/color change is desired
Figure 2
1
Width
Height
37"
27-1/2"
32-1/4"
24-1/4"
2009-900 6/03
