FORK SENSORS

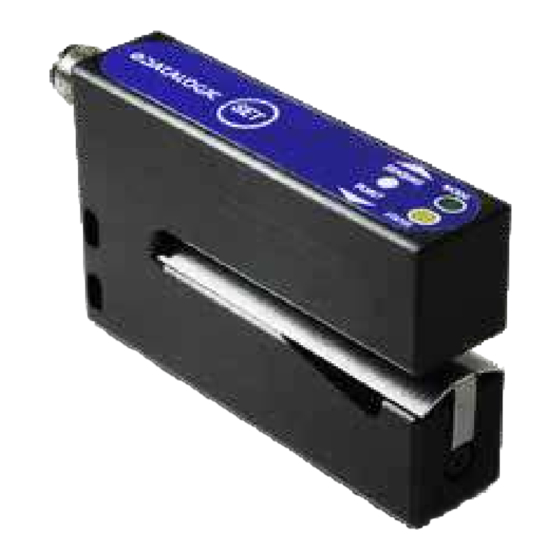

SRX3
Slot width
Slot depth
Switching frequency
Emission type
Setting
Power supply
Output
Connection
Approximate dimensions (mm)
Housing material
Mechanical protection
150
CATALOG | Photoelectric Sensors
HIGH PERFORMANCE
ULTRASONIC FORK SENSORS
FOR TRANSPARENT LABEL
DETECTION
•
Dynamic or static teach models
•
Slot size 3mm
•
High resolution up to 2 mm label gap
•
M8 connector with PNP or NPN output
•
M12 connector with PNP/NPN output and external teach-in
•
Rugged and sturdy aluminium housing
APPLICATIONS
• Detection of transparent, opaque, or metallic ink labels
• Double sheet detection
• Adhesive surface detection
SRX3
Vdc
PNP
NPN
Connector
Connector
3 mm
68 mm
500 hz
Ultrasonic 300 Khz
300 mm
12...30 Vdc ●
●
●
M12 5-pin
M8 4-pin
90 x 55 x 22
Aluminium
IP54
Advertisement
Related Manuals for Datalogic SRX3
Summary of Contents for Datalogic SRX3

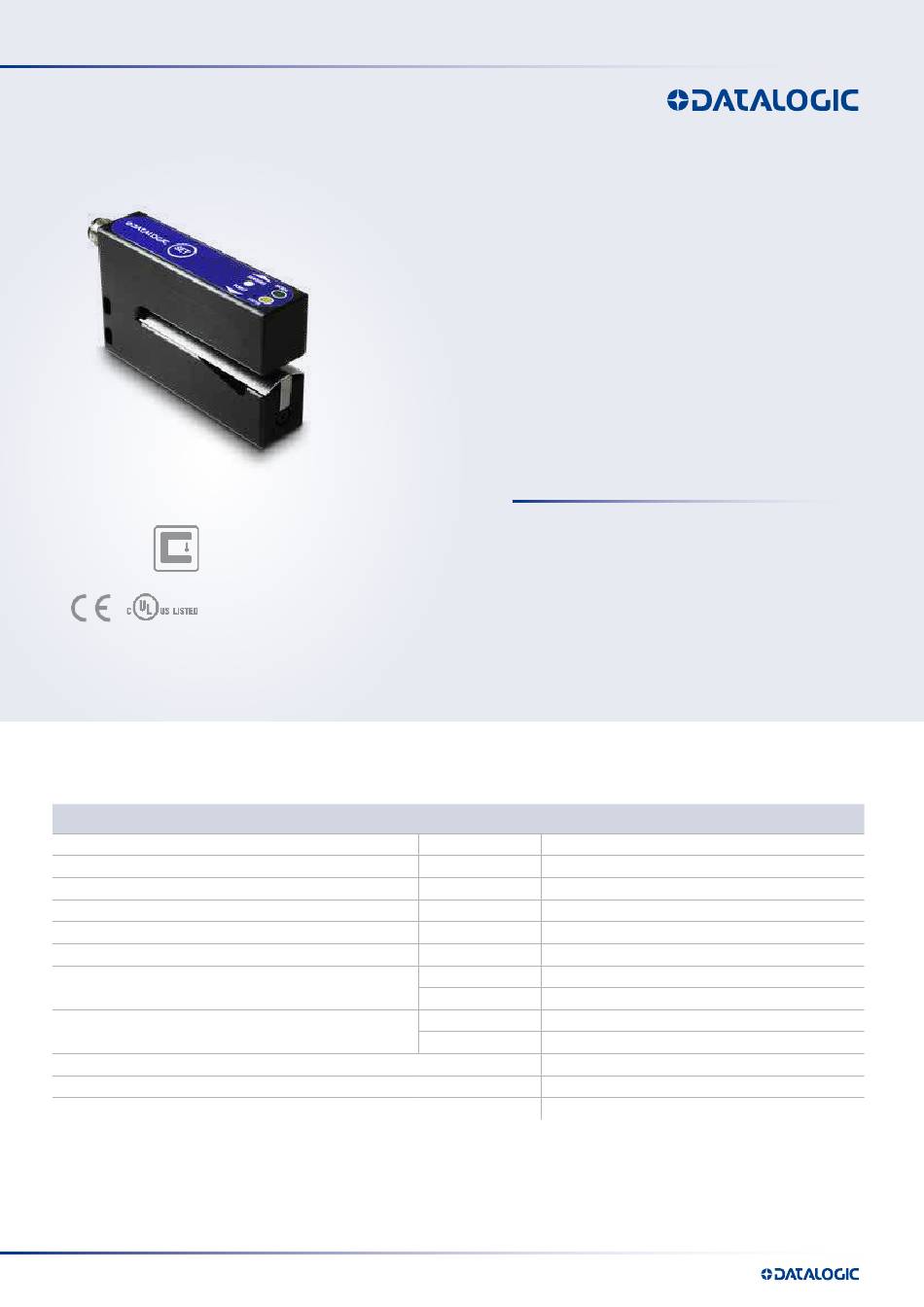

- Page 1 FORK SENSORS SRX3 HIGH PERFORMANCE ULTRASONIC FORK SENSORS FOR TRANSPARENT LABEL DETECTION • Dynamic or static teach models • Slot size 3mm • High resolution up to 2 mm label gap • M8 connector with PNP or NPN output •...
- Page 2 TECHNICAL DATA SPECIFICATION Minimum pulse time Detectable size > 2mm Max. tape speed 60m/min Tape size > 16mm Ultrasonic frequency 300 Khz ELECTRICAL DATA Power supply 12…30 Vdc Current consumption < 55mA Ripple Output current 250 mA max. Output saturation voltage <...
- Page 3 ― 0 V GREY TEACH-IN MODEL SELECTION AND ORDER INFORMATION ADJUSTMENT OUTPUT CONNECTION MODEL ORDER No. Dynamic Teach-in PNP/NPN +EXT M12 5 pin SRX3-5-US-M12-PNH 953171000 Static Teach-in PNP/NPN +EXT M12 5 pin SRX3-5-US-3-M12-PNH 953171010 Dynamic Teach-in PNP+EXT M8 4 pin SRX3-6-US-M8-PH 953171020...
- Page 4 CABLES TYPE No. Of POLES SHEAT LENGTH DESCRIPTION ORDER No. CS-A1-03-G-03 95ACC2110 Grey, P.V.C. CS-A1-03-G-05 95ACC2120 Female 10 m CS-A1-03-G-10 95ACC2140 M12 Connector 5-poles CS-A1-03-U-03 95ASE1170 (Axial) Black, P.V.C. CS-A1-03-U-05 95ASE1180 CS-A1-03-U-10 95ASE1190 CS-B-1-02-G-03 95A251420 CS-B-1-02-G-05 95A251430 Grey, P.V.C. CS-B-1-02-G-07 95A251440 M8 Connector 4-poles...
