SG4 Extended Series
(SG4-...-N Models)
QUICK REFERENCE GUIDE
This Quick Reference Guide does not replace the Instruction Manual.
Download the Instruction Manual by reading the QR code here or at
www.datalogic.com. Click on Support > Search by product and enter
the SG4 family name, then select your product from the dropdown list.
Click on the Manuals & Technical Literature link to download your
Instruction Manual. The Instruction Manual must be available at all
times when installing and working with the product.
Scan or tap on the QR code
to download the Instruction
Manual.

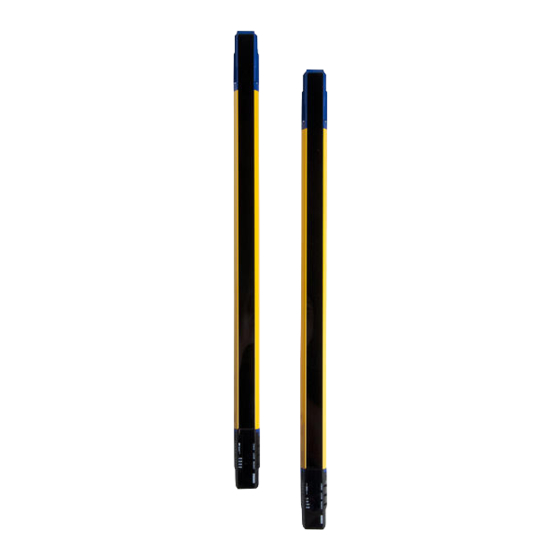

Safety Light Curtains with infrared beams
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Datalogic SG4 Extended
Summary of Contents for Datalogic SG4 Extended
- Page 1 This Quick Reference Guide does not replace the Instruction Manual. Download the Instruction Manual by reading the QR code here or at www.datalogic.com. Click on Support > Search by product and enter the SG4 family name, then select your product from the dropdown list.
-
Page 2: Safety Information
• The presence of intense electromagnetic disturbances could affect device’s correct operation. This condition shall be carefully assessed with the advice of DATALOGIC Technical Service. • The operating distance of the device can be reduced in presence of smog, fog or airborne dust. - Page 3 CONNECTIONS SG4-N RX M12 8 poles 1. White = RESTART / RESET / EDM / OVERRIDE 5. Gray = OSSD1 2. Brown = +24 VDC 6. Pink = OSSD2 3. Green = MUTING 1 7. Blue = 0 V 4. Yellow = MUTING 2 8.
-
Page 4: Alignment Procedure
Once the light curtain has been aligned and correctly fastened, the display signal is useful both to check the alignment and show a change in the environmental conditions (occurrence of dust, light disturbance and so on) via signal level monitor- ing. SG4 EXTENDED... -
Page 5: Basic Configuration Mode
BASIC CONFIGURATION MODE The device can enter Basic Configuration during Normal Operation. As soon as CONFIRM action after configuration is executed the device automatically restarts in Normal Operation with the new configuration. Particular attention has to be taken during the basic configuration manage- CAUTION ment and use. -
Page 6: Diagnostic Function
Failure on restart RESET line BCM configuration Re-operate Basic Configuration. If error per- FAILURE LOCKOUT failure sists, contact Datalogic Technical Support CRITICAL FAILURE Generic non-resetta- Turn ON/OFF ESPE. Shown Failure Code cor- LOCKOUT ble failure responds to failures above with steady LEDs Check Power Supply Connection. - Page 7 Failure on optics Datalogic Technical Support BCM Configuration Re-operate Basic Configuration. If error per- FAILURE LOCKOUT failure sists, contact Datalogic Technical Support CRITICAL FAILURE Generic non-resetta- Turn ON/OFF ESPE. Shown Failure Code cor- LOCKOUT ble failure responds to failures above with steady LEDs...
- Page 8 Since the directives and applicable standards are subject to continuous updates, and since Datalogic promptly adopts these updates, therefore the EU declaration of conformity is a living document. The EU declaration of conformity is available for competent authorities and customers through Datalogic commercial reference contacts.
- Page 12 © 2011-2020 Datalogic S.p.A. and/or its affiliates • All rights reserved • Without limiting the rights under copyright, no part of this documentation may be repro- duced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Data- logic S.p.A.
