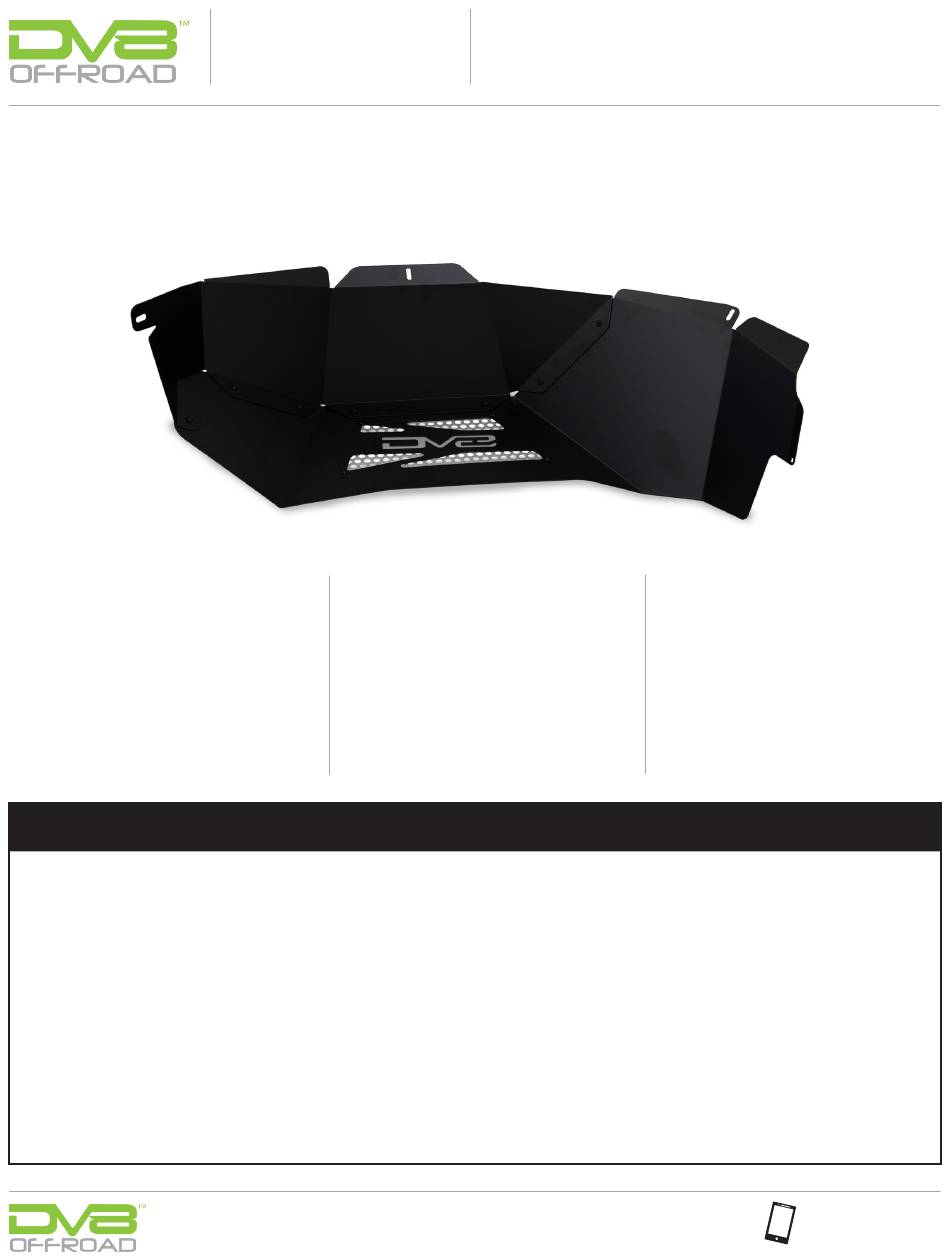

Rear Inner Fenders

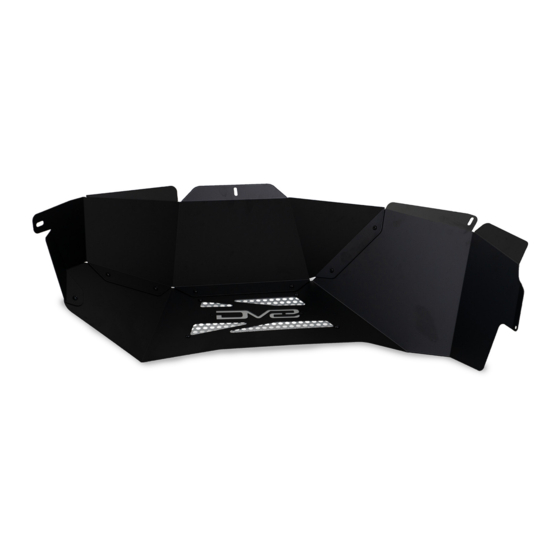

2021+ FORD BRONCO
INFEND-05RB
TOOLS
REQUIRED
- Ratchet
- #4 Allen Head
- Drill
- 11/32" Drill Bit
- Nutsert Tool (M6)
- Philips Head Screwdriver
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 3 Hour
Time to install this should only
take about 3 hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Table of Contents
Related Manuals for DVB INFEND-05RB
Summary of Contents for DVB INFEND-05RB
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM Rear Inner Fenders 2021+ FORD BRONCO INFEND-05RB TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - Ratchet - Novice/Intermediate - 3 Hour - #4 Allen Head - 1 (you) to 2 persons...
- Page 2 INSTALLATION MANUAL STEP You will need to fully remove the front fenders by turning the clips on the underside of the fender down until they feel loose. Once loose, pull the fender away from the Bronco directly towards you, releasing the clips. Note: Both front and rear fenders are mounted in this manner.
- Page 3 UNINSTALL MANUAL STEP Use a philips head screw driver and panel clip removal tool to remove the various clips securing inner fender to the vehicle. 855-680-9595 NEED HELP?
- Page 4 UNINSTALL MANUAL STEP Use a 7mm deep socket to remove the nuts securing the inner fender, located at the top of the inner fender and lower front section of the inner fender. NOTE: Passenger side will have two nuts securing it in the top section. STEP Remove inner fender by pulling down by the lip of the fender and out.
- Page 5 INSTALLATION MANUAL STEP Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Hardware Included: (16) M6x20 (19) M6x14 (16) M6 Serrated Nuts (19) M6 Nutserts STEP Assemble the DV8 inner fender using a #4 allen head and provided...
- Page 6 INSTALLATION MANUAL STEP Bend back the tabs that will not be used during installation. (From the front you will bend the 1st, 3rd, 4th, 6th, and 7th tabs). The remaining tabs that will be used for installation can be adjusted by hand to better line up with the inner fender during installation.
- Page 7 INSTALLATION MANUAL STEP Install provided nutserts into the remaining tabs using a nutsert tool. STEP Manuever the inner fender into the wheel well carefully as not to damage the inner fender. It may take a few attempts to get it correct.
- Page 8 INSTALLATION MANUAL STEP OPTIONAL: You may choose to remove the clip for the wiring harness and push it back for a cleaner look. STEP Double check fitment and all hardware is secure. Repeat steps for other side. 855-680-9595 NEED HELP?
