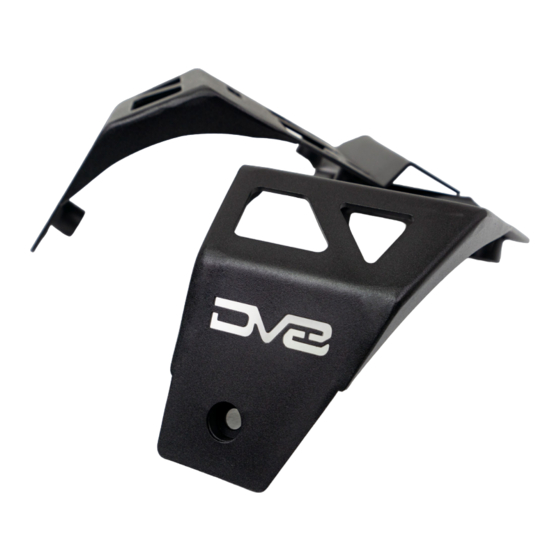

Dual A-Pillar Pod Mounts
2018+ JEEP JL/JT
LBJL-04
TOOLS
REQUIRED
- #5 Allen Head
- T40 Torx Bit
- 10mm Wrench
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 person
Little skill level required and you
can easily install by yourself.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1 Hour
Time to install this should only
take about an hour.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Table of Contents
Related Manuals for DVB LBJL-04
Summary of Contents for DVB LBJL-04
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM Dual A-Pillar Pod Mounts 2018+ JEEP JL/JT LBJL-04 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - #5 Allen Head - Novice/Intermediate - 1 Hour - T40 Torx Bit - 1 person...
- Page 2 INSTALLATION MANUAL STEP Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Hardware Included: (2) M8 x 30mm Allen Head Bolt (2) M8 Flat Washers (2) M8 Split Washers STEP Starting with the passenger side,...
- Page 3 INSTALLATION MANUAL STEP Install the lights onto the brackets using the provided hardware with the lights. Our brackets are designed to accept up to a M10 bolt to mount the light. Note: We are using two 3” DV8 Elite Pod Lights for our install.
- Page 4 INSTALLATION MANUAL STEP Hold the bracket over the cowl while you run the wiring to your preference (this can be either into the hood or toward the cowl depending on how you decide to wire your lights). STEP Once the wires are in place, reinstall the factory a-pillar panel ensuring the wires are side by side near the back of the panel.
- Page 5 INSTALLATION MANUAL STEP Place the bracket onto the panel aligning the two holes on the cowl and the front hole on the a-pillar panel. Loosely install the bolts on the top two holes on the cowl reusing factory hardware. STEP Use the provided M8 hardware for the bottom hole on the bracket and reuse one of the factory bolts for the rear...
- Page 6 INSTALLATION MANUAL STEP Continue by tightening all bolts in a star pattern (make sure both wires do not get pinched in between the a-pillar and cowl). Repeat all steps on driver side. STEP Reinstall your antenna and check to ensure all hardware is secure. STEP Finish wiring lights to your preference.
