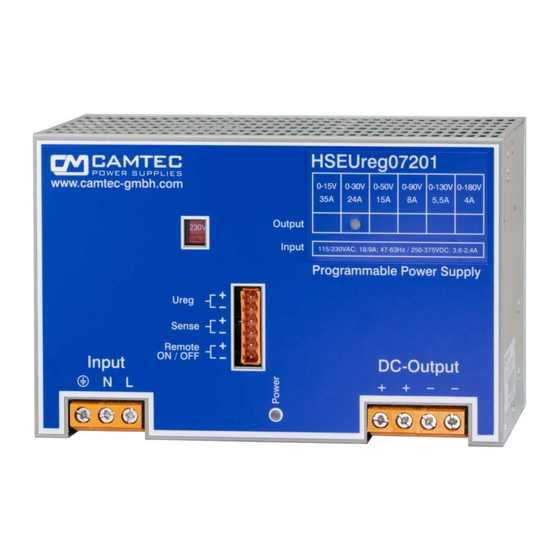

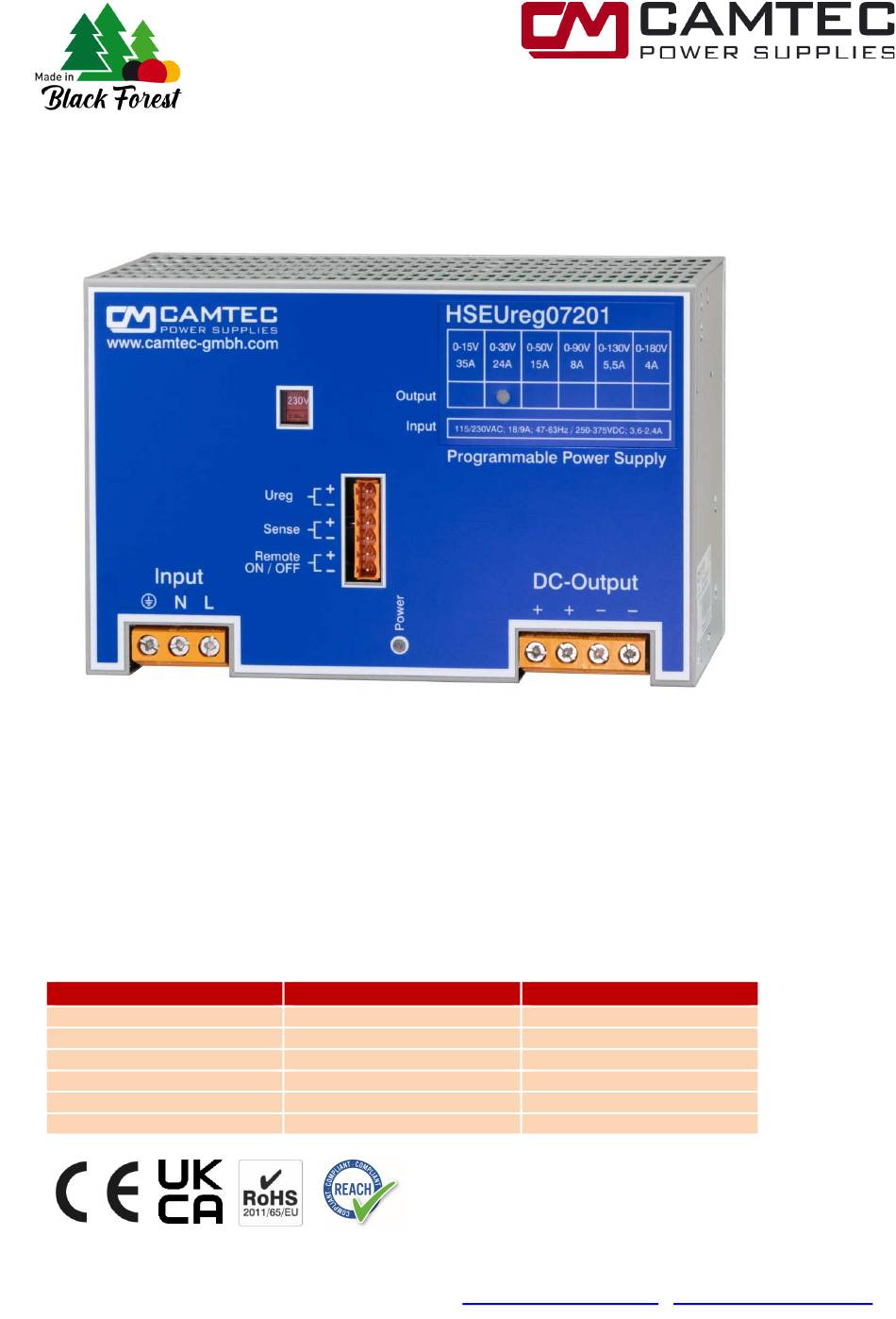

720W Programmable DC Lab Power Supply, TS35mm DIN-Rail
Specification:
•
Voltage programming from 0V
•
Multi interface 0-10V & 0-20mA
•
Sense & Shutdown (remote ON/OFF)
•
N+1 parallel operation
•
Natural convection
•
Precise dynamic response on load change
Models
HSEUREG07201.015
HSEUREG07201.030
HSEUREG07201.050
HSEUREG07201.090
HSEUREG07201.130
HSEUREG07201.180
Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany
Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
•
Designed for long life under full stress
•
Strong input filters
•
High reliability, shock & vibration proof
•
Over Voltage and continuous short circuit protection
•
EMI/EMS EN61000-6-2,3, EN55032 class B
•
EN61010-1, EN61010-2-201, EN62368-1
Voltage Programmable
0 – 15Vdc
0 – 30Vdc
0 – 50Vdc
0 – 90Vdc
0 – 130Vdc
0 – 180Vdc
HSEUREG07201(R2) MANUAL
Current
35A
24A
15A
8,0A
5,5A
4,0A
www.camtec-gmbh.com
P.1/10 (03.2022.00.0)
-
info@camtec-gmbh.com
Advertisement
Related Manuals for Camtec HSEUREG Series
Summary of Contents for Camtec HSEUREG Series
- Page 1 0 – 130Vdc 5,5A HSEUREG07201.180 0 – 180Vdc 4,0A Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.1/10 (03.2022.00.0) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 – www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
- Page 2 Open Circuit Protection The HSEUREG series is continuously open circuit protected. The device delivers a stable output voltage and no current. If a load is immediately connected to the device, the power supply stabilizes within 1ms. It does not overshoot the output voltage.
- Page 3 DC Terminals Output Screw Terminal 4x AWG22 – AWG6 / 0,5 – 16mm² (+ + / - - ) Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.3/10 (03.2022.00.0) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –...
- Page 4 3 = inrush limiter NTC 4 = load capacitor 5 = transformer 6 = storage choke Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.4/10 (03.2022.00.0) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 – www.camtec-gmbh.com info@camtec-gmbh.com...
- Page 5 The common ground is internally connected to the Sense-. The Sense- is connected to DC-minus output. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.5/10 (03.2022.00.0) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –...
- Page 6 If the residual voltage is ≥60Vdc, observe the safety standards. Use only specially insulated screwdriver to trim the Ua/Ia. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.6/10 (03.2022.00.0) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –...
- Page 7 ST-HD Baseplate Cooling & Temperature Management The temperature management of the HSEUREG series provides a direct dissipation of the main energy losses. The internal coolers of the output diodes and the power FETs connect to the back-plate cooler. It is possible to dissipate about 40 –...
- Page 8 (The HSEUREG is always delivered for DIN-rail mount, the back-plate is an optional part that shall be mounted from the customer. The threads from the DIN-rail mounting brackets shall be used. All screws are included into the Back-Plate Kit.) Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.8/10 (03.2022.00.0) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –...
- Page 9 2201002001CA Optional Interface Connectors Optional 2poles Clamping Yoke Connector 180° cabling (10pcs per pack) 3520037 Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.9/10 (03.2022.00.0) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 – www.camtec-gmbh.com info@camtec-gmbh.com...
- Page 10 All parameters base on 15 minutes run-in @ full load / 25°C / 230Vac 50/60Hz, as otherwise stated. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.10/10 (03.2022.00.0) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –...
