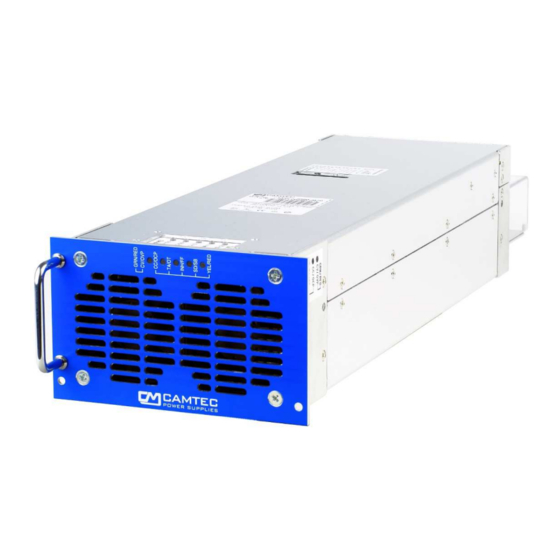

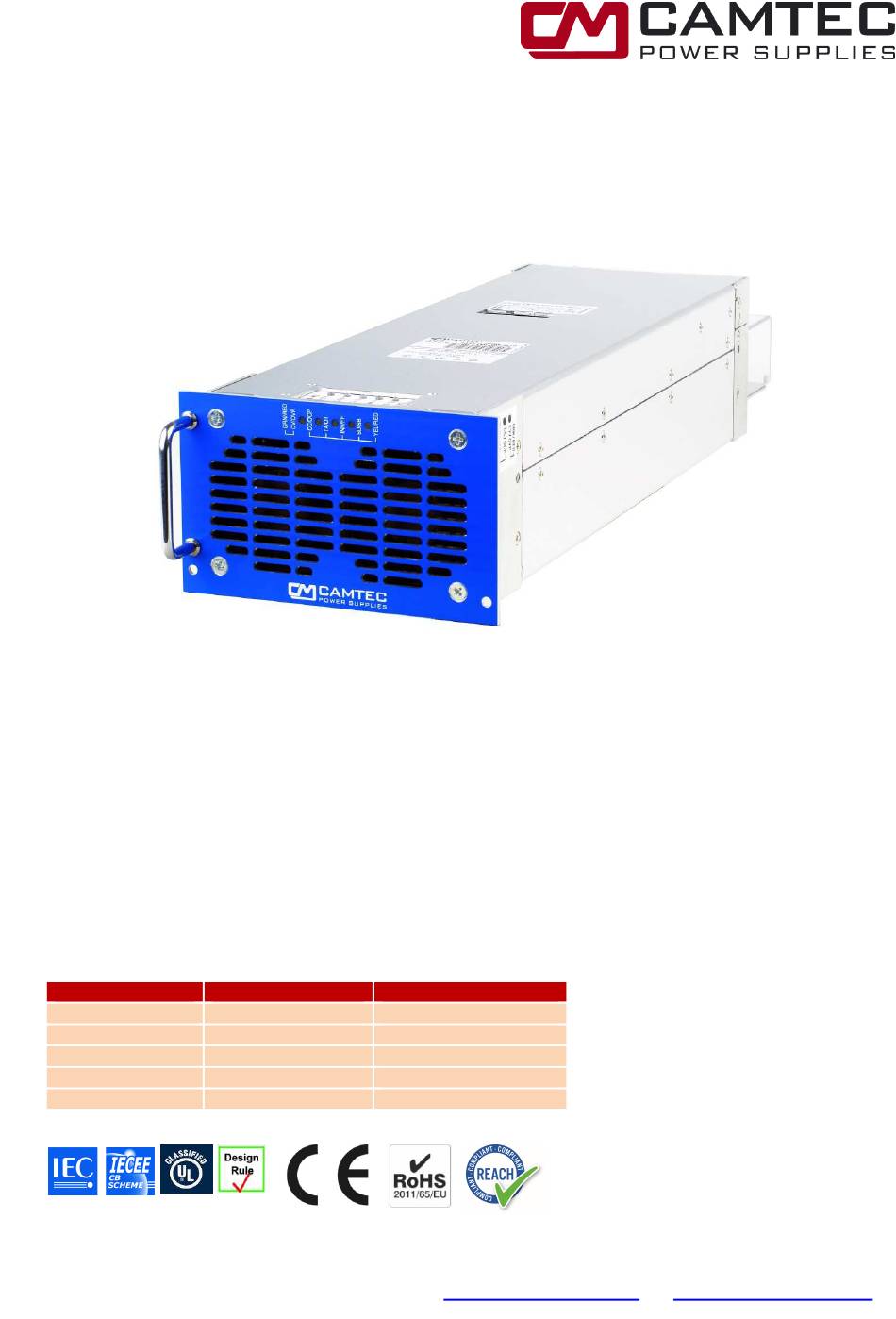

CPS-EX2000
19" embedded 2U/3U or hardmount in all positions, PFC 0,99
Features:
•
3D-HD (3D Heat Dissipation)
•
Real time C/V programming
•
Real time & value C/V-monitoring
•
Reference voltage f. autonomous programming
•
CSB Current Share Bus
•
Inhibit for safe interlocking
•
Remote Shutdown
•
Sense mode
•
Power Good Relay DC-ok
Model
CPS-EX2000.024
CPS-EX2000.036
CPS-EX2000.048
CPS-EX2000.072
CPS-EX2000.110
In accordance with IEC60950-1
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77
(Technical changes and errors reserved. This product may not be used in life support systems.)
2000W Power Supply scalable
Voltage Prog. [V]
24-30Vdc
30-45Vdc
45-58Vdc
58-90Vdc
90-150Vdc
•
Precise dynamics on load change
•
Series & parallel operation up to >100kW
•
EMC conducted class B, radiated class A
•
Efficiency 92-94%
•
PFC Powerfactor 0,99
•
Variable controlled fans from Papst
•
Long lifetime under hard operation
•
Solid 2U and 3U subframes available
Current Prog. [I]
42-84A
28-56A
21-42A
14-28A
9,1-18,2A
www.camtec-gmbh.com
Made in Germany
S.1/20 (07/2017.01.0)
-
info@camtec-gmbh.com
Advertisement
Related Manuals for Camtec CPS-EX2000.024
Summary of Contents for Camtec CPS-EX2000.024
- Page 1 14-28A CPS-EX2000.110 90-150Vdc 9,1-18,2A In accordance with IEC60950-1 Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.1/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com (Technical changes and errors reserved. This product may not be used in life support systems.)
- Page 2 By simple and cost-effective wall brackets the device can be integrated in any position in 90° increments. Unlike comparable power supplies Camtec comes here for the first time to let the system integrator completely free hand. The cooling concepts for supply and exhaust air can be designed to completely remove the heat dissipation from the cabinet.
- Page 3 The unit can be operated in continuous mode. In the continuous mode, the power supply provides constant current mode in a continuous flow and no ticker-operation. Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.3/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 4 52/5,3 39/3,9 Output Capacity, [mF] typ. 21,6 0,11 Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.4/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com (Technical changes and errors reserved. This product may not be used in life support systems.)
- Page 5 Please connect Pin10 with Pin14 and Pin12 with Pin16 to operate this mode. Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.5/20 (07/2017.01.0) Tel.
-
Page 6: Made In Germany
Made in Germany Schematic of the internal circuits CON1 - 4 Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.6/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com (Technical changes and errors reserved. This product may not be used in life support systems.) - Page 7 3x2,5 mm² PowerCon® Neutrik NAC3FCA Copy of the original instruction: http://www.neutrik.com/de/powercon/powercon-20-a/nac3fca Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.7/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com (Technical changes and errors reserved. This product may not be used in life support systems.)
- Page 8 SB or SD contact for a moment. Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.8/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 9 Proven approaches are 250mA for the fuses and 3...5A load capacity of diodes. Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.9/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 10 SD, power input and power output is a reinforced Isolation of max. 400Vdc. Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.10/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 11 FF, OVP or a defective PFC. Contact load (resistive load): 30Vdc/1A, 60Vdc/0.3A, 30Vac/0.5A. Betwenn the intermediate relay contact, power input and the power output is a reinforced Isolation max. 400Vdc. Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.11/20 (07/2017.01.0) Tel.
- Page 12 OCP is low. In the INH mode the status of the power supply does not change. Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.12/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 13 (interval ≥10s). We recommend the smallest circuit breaker a characteristic B with 16A. Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.13/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 14 The CPS-EX models have no internal O-ring diode, to operate the devices N+1 redundant. Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.14/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 15 Made in Germany Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.15/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com (Technical changes and errors reserved. This product may not be used in life support systems.)
- Page 16 If the residual voltage is ≥60Vdc, observe the safety standards. Use only specially insulated screwdriver to trim the Ua/Ia. Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.16/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 17 An optional cable- accession assistance for the racks will be available soon. Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.17/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com...
- Page 18 2U Subrack 48TE for 1-3 CPS-EX2000 or CPS-EX2000 with up to 9kW continuous power 3U Subrack 48TE for 1-5 CPS-EX2000 or CPS-EX2000 with up to 15kW continuous power Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.18/20 (07/2017.01.0) Tel.
- Page 19 When the CPS-EX2000/3000 is hard mounted the optional front plates cannot be used. The standard control LEDs allow visualization from any mounting position (see below drawing). Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.19/20 (07/2017.01.0) Tel.
- Page 20 All parameters after 15 minutes of continuous operation at full load / 25°C / 230Vac 50/60Hz, unless otherwise indicated. Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.20/20 (07/2017.01.0) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
