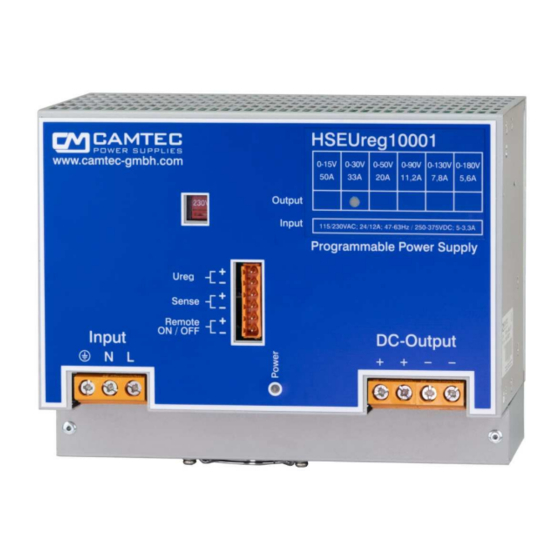

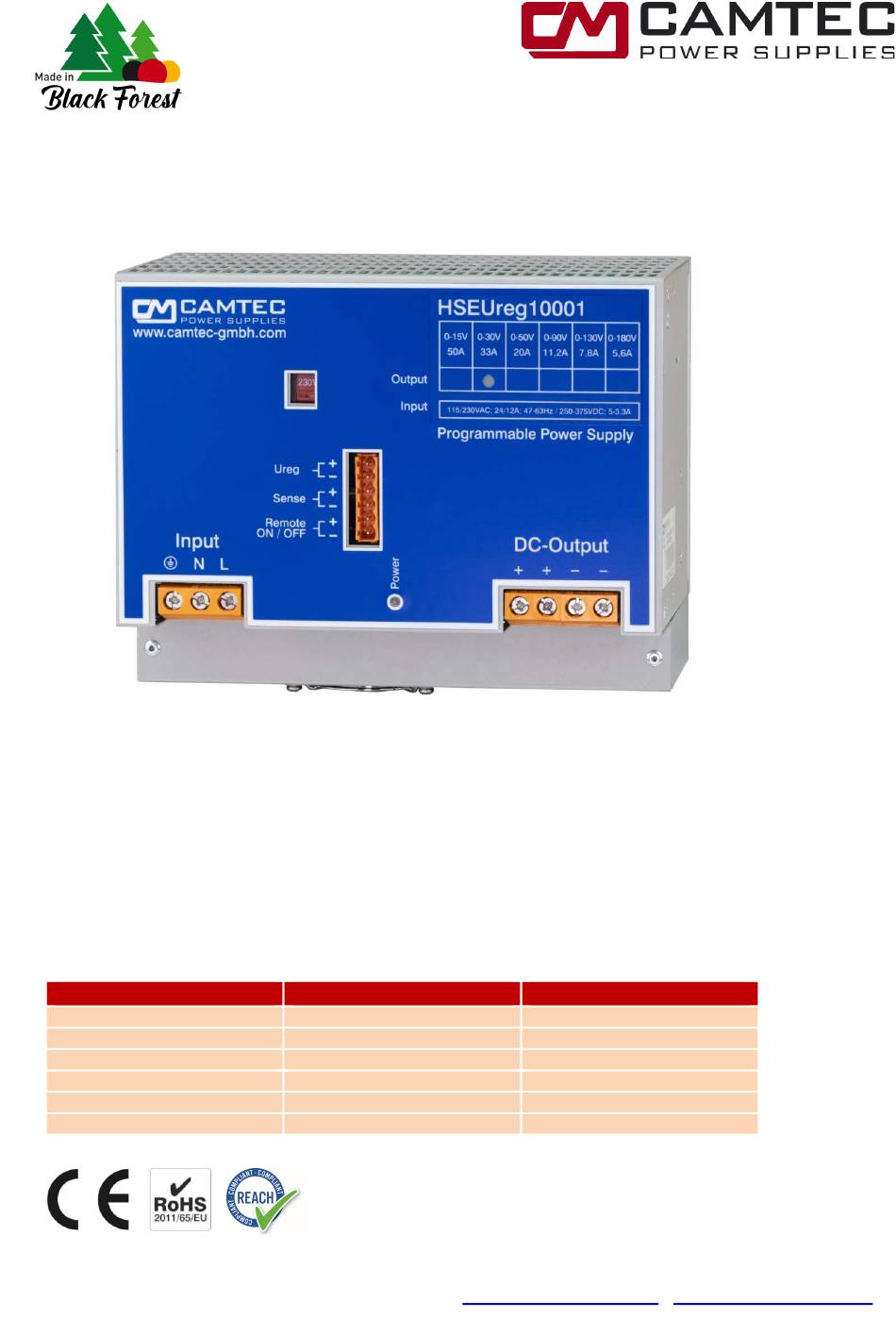

1000W Programmable DC Lab Power Supply, TS35mm DIN-Rail
Specification:
•
Voltage programming from 0V
•
Multi interface 0-10V & 0-20mA
•
Sense & Shutdown (remote ON/OFF)
•
N+1 parallel operation
•
Controlled high quality fan
•
Precise dynamic response on load change
Models
HSEUREG10001.015
HSEUREG10001.030
HSEUREG10001.050
HSEUREG10001.090
HSEUREG10001.130
HSEUREG10001.180
Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany
Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
•
Designed for long life under full stress
•
Strong input filters
•
High reliability, shock & vibration proof
•
Over Voltage and continuous short circuit protection
•
EMI/EMS EN61000-6-2,3, EN55032 class B
•
EN61010-1, EN61010-2-201, EN62368-1
Voltage Programmable
0 – 15Vdc
0 – 30Vdc
0 – 50Vdc
0 – 90Vdc
0 – 130Vdc
0 – 180Vdc
HSEUREG10001(R2) MANUAL
Current
50A
33A
20A
11,2A
7,8A
5,6A
www.camtec-gmbh.com
P.1/10 (12/2017.02.1)
-
info@camtec-gmbh.com
Advertisement
Table of Contents
Related Manuals for Camtec HSEUREG10001
Summary of Contents for Camtec HSEUREG10001
- Page 1 0 – 130Vdc 7,8A HSEUREG10001.180 0 – 180Vdc 5,6A Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.1/10 (12/2017.02.1) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 – www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
-
Page 2: Technical Concept
The HSEUREG power supply series realizes high programmable power in a space-saving housing. Latest generation electrical devices relate to the high reliability of all CAMTEC products. The CAMTEC philosophy is, to employ 125°C low ESR ultra long-life capacitors where expedient to achieve a superior lifetime of the product. The HSEUREG power supply is made for high reliable and demanding industrial... -
Page 3: Technical Table
DC Terminals Output Screw Terminal 4x AWG22 – AWG6 / 0,5 – 16mm² (+ + / - - ) Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.3/10 (12/2017.02.1) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –... -
Page 4: Analog Interface
3 = inrush limiter NTC 4 = load capacitor 5 = transformer 6 = storage choke Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.4/10 (12/2017.02.1) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 – www.camtec-gmbh.com info@camtec-gmbh.com... - Page 5 The common ground is internally connected to the Sense-. The Sense- is connected to DC-minus output. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.5/10 (12/2017.02.1) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –...
-
Page 6: Temperature Derating
If the residual voltage is ≥60Vdc, observe the safety standards. Use only specially insulated screwdriver to trim the Ua/Ia. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.6/10 (12/2017.02.1) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –... - Page 7 40 – 50% of the energy losses out of a system while using the Baseplate cooling bundle 2201002001 to hard mount the unit to a plane and heat conductive surface. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.7/10 (12/2017.02.1) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –...
- Page 8 (The HSEUREG is always delivered for DIN-rail mount, the back-plate is an optional part that shall be mounted from the customer. The threads from the DIN-rail mounting brackets shall be used. All screws are included into the Back-Plate Kit.) Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.8/10 (12/2017.02.1) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –...
-
Page 9: Ordering Information
2201002001CA Optional Interface Connectors Optional 2poles Clamping Yoke Connector 180° cabling (10pcs per pack) 3520037 Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.9/10 (12/2017.02.1) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 – www.camtec-gmbh.com info@camtec-gmbh.com... - Page 10 All parameters base on 15 minutes run-in @ full load / 25°C / 230Vac 50/60Hz, as otherwise stated. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.10/10 (12/2017.02.1) Phone +49 (721) 46596-0 - Fax +49 (721) 46596-77 –...
