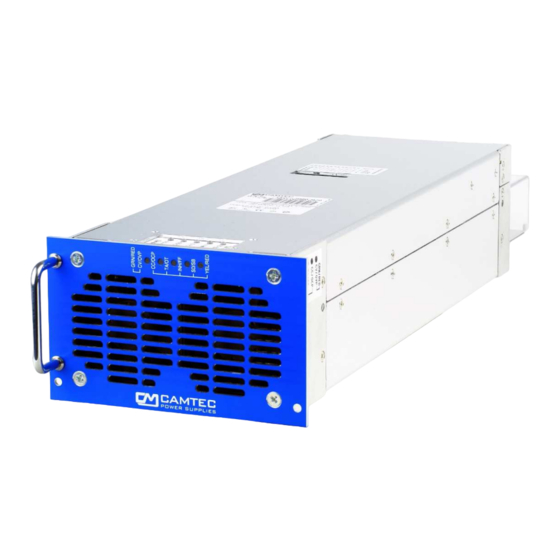

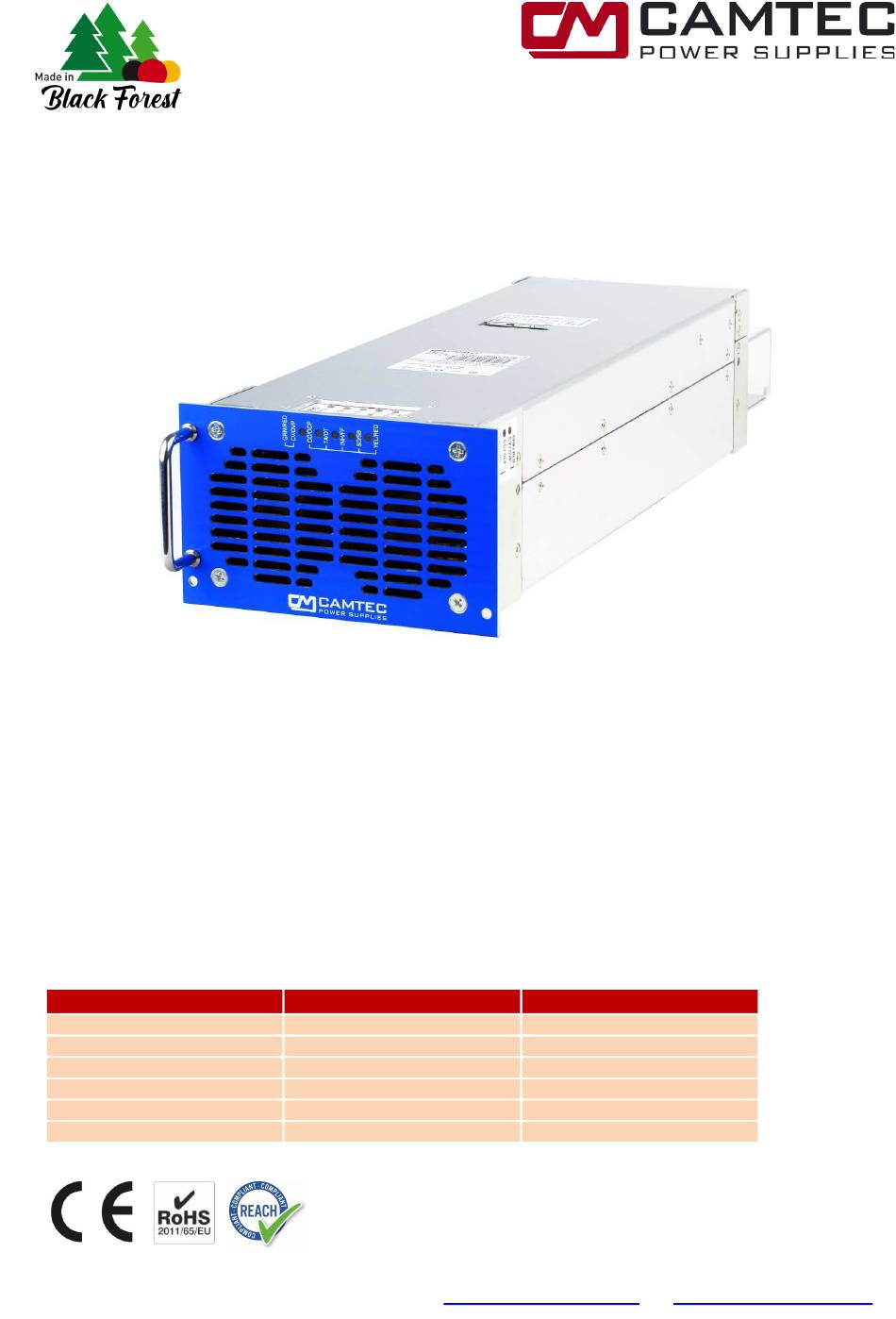

CPS-i3000
19" embedded 2U/3U or hardmount in all positions, PFC 0,99
Features:
•
3D Heat Dissipation
•
Real time I/V programming
•
Real time I/V-monitoring
•
Reference voltage f. autonomous programming
•
CSB Current Share Bus
•
Inhibit for safe interlocking & Remote Shutdown
•
Remote Shutdown
•
Power Good Relay AC-ok and DC-ok
Model
CPS-i3000.018
CPS-i3000.030
CPS-i3000.060
CPS-i3000.090
CPS-i3000.150
CPS-i3000.300
Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany
Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
3000W Lab Power Supply scalable
•
•
•
•
•
•
•
•
•
Voltage programmable
0 – 18Vdc
0 – 30Vdc
0 – 60Vdc
0 – 90Vdc
0 – 150Vdc
0 – 300Vdc
www.camtec-gmbh.com
CPS-i3000(R2) MANUAL
Precise dynamics on load change
Series & parallel operation up to 100kW
EMC conducted class B, radiated class A
Efficiency 92-94%
PFC Powerfactor 0,99
Variable controlled fans from Papst
Long lifetime under hard operation
Fast down programming option PS
Solid 2U and 3U subframes available
Current programmable
0 – 185A
0 – 125A
0 – 62,5A
0 – 41,5A
0 – 25,0A
0 – 12,5A
P.1/22 (04/2016.01.5)
-
info@camtec-gmbh.com
Advertisement
Related Manuals for Camtec CPS-i3000
Summary of Contents for Camtec CPS-i3000
- Page 1 0 – 150Vdc 0 – 25,0A CPS-i3000.300 0 – 300Vdc 0 – 12,5A Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.1/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com...
- Page 2 EN61010-1, EN61010-2-201, EN62368-1 and the EMC standards EN55032 conducted Class B, radiated Class A. The mechanical design of the CPS-i3000 device series is unique. It is the first power supply line in the world market, which can be flexibly adapted to any installation situation.
- Page 3 Most recorded failures in the field concern the signal interface of a power supply. to protect a connected defect load. The lock can be controlled remotely or Camtec offers new concept of design-to-service that allows the customer easily to repeal by disconnection from the mains again.
- Page 4 19,4 1,07 0,52 0,11 Latency [ms] Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.4/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
- Page 5 Please connect Pin10 with Pin14 and Pin12 with Pin16 to operate this mode. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.5/22 (04/2016.01.5) Tel.
- Page 6 CPS-i3000(R2) MANUAL Schematic of the internal circuits analogue interface CON1 - 4 Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.6/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com...
- Page 7 Copy of the original instruction: http://www.neutrik.com/de/powercon/powercon-20-a/nac3fca Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.7/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 8 The option must be equipped in the factory. For further information about the PS option, please refer to the technical details in a separate section. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.8/22 (04/2016.01.5) Tel.
- Page 9 WARNING! PROTECT TO MIX UP SENSE CONNECTIONS. THIS COULD CAUSE SERIOUS DAMAGE TO THE DEVICE. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.9/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 10 The accuracy of the current distribution is max. ±5% at Iout ≥0.5xIout max. Derate total output current by 5% to prevent unit overload condition. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.10/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 11 INH and power output is a reinforced isolation of max. 400Vdc and a basic isolation of max. 600Vdc working voltage. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.11/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 12 CC is low because the power output is switched off. The change between the CV and the CC mode is automatic. Please pay attention to the DIP switch setting of the Fuse Mode to avoid provoking malfunction. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.12/22 (04/2016.01.5) Tel.
- Page 13 A failure message is sent: The status signal FF applies high. Output Open Collector I =10mA, V ≤0,6V, V =30V. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.13/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com...
- Page 14 (fan/blower input). The power supply unit starts automatically when it has cooled down. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.14/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 15 The CPS-i models have no internal O-ring diode, to operate the devices N+1 redundant. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.15/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 16 CPS-i3000(R2) MANUAL Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.16/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
-
Page 17: Analogue Interface
If the residual voltage is ≥60Vdc, observe the safety standards. Use only specially insulated screwdriver to trim the Ua/Ia. ANALOGUE INTERFACE Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.17/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com... - Page 18 An optional cable- accession assistance for the racks will be available soon. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.18/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com...
-
Page 19: Available Options
A manufacturer calibration of a CPS-i can frequently be done via controlled recirculation on a regular basis. Please request the help of your local CPS-i dealer or contact us directly: service@camtec-gmbh.com Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.19/22 (04/2016.01.5) - Page 20 CPS-i3000(R2) MANUAL 19“ Subrack 2U & 3U 2U Subrack for 1-3 CPS-i3000 with up to 9kW continuous power 3U Subrack for 1-5 CPS-i3000 with up to 15kW continuous power Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.20/22 (04/2016.01.5)
- Page 21 When the CPS-i2000/3000 is hard mounted the optional front plates cannot be used. The standard control LEDs allow visualization from any mounting position (see below drawing). Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.21/22 (04/2016.01.5) Tel.
- Page 22 All parameters after 15 minutes of continuous operation at full load / 25°C / 230Vac 50/60Hz, unless otherwise indicated. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.22/22 (04/2016.01.5) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
