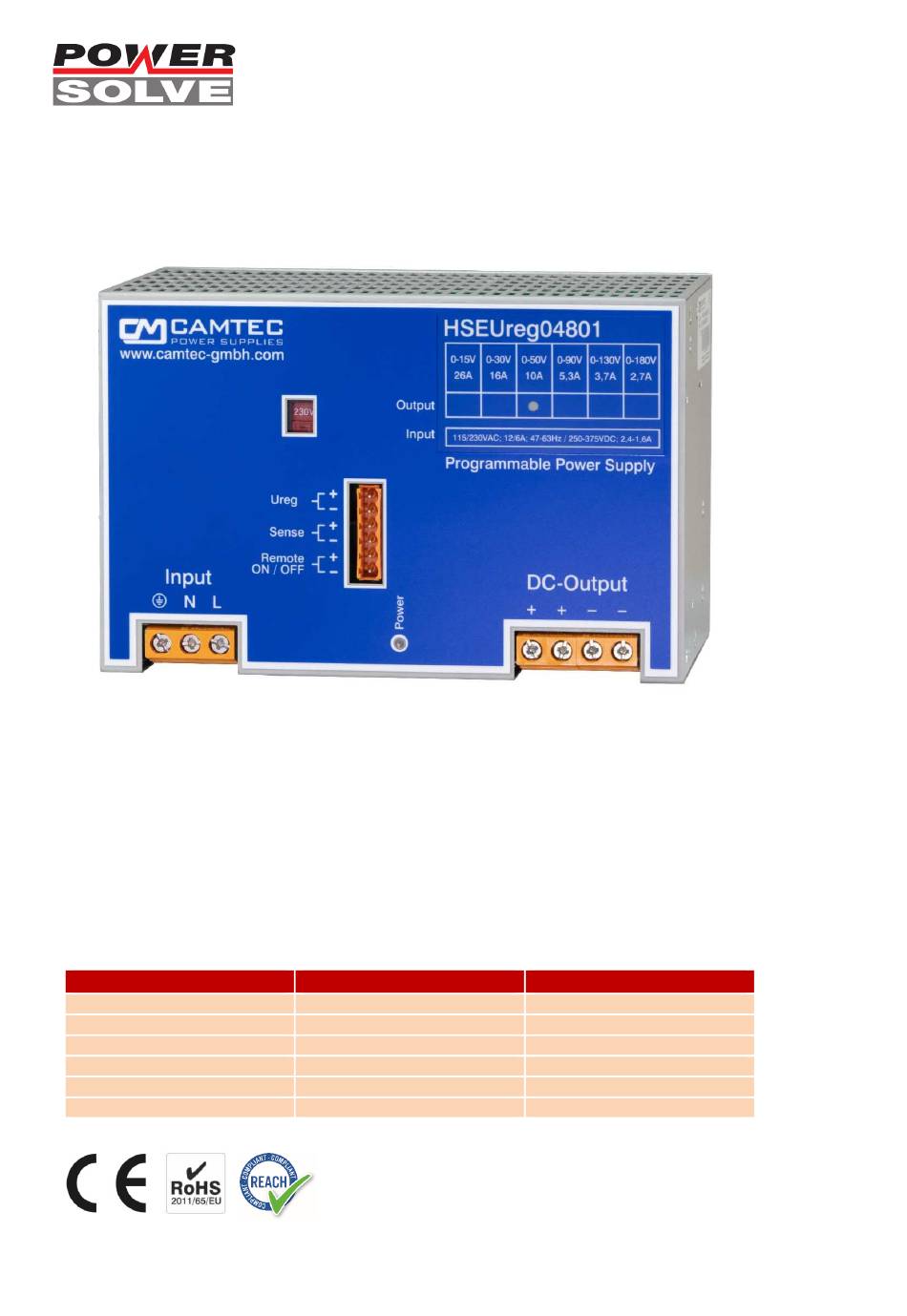

HSEUREG04801

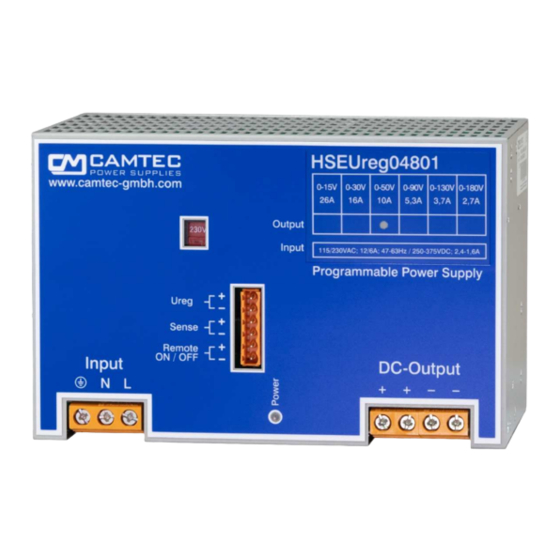

480W Programmable DC Lab Power Supply, TS35mm DIN-Rail
Specification:
Voltage programming from 0V
•
Multi interface 0-10V & 0-20mA
•
Sense & Shutdown (remote ON/OFF)
•
N+1 parallel operation
•
Natural convection
•
Precise dynamic response on load change
•
Models
HSEUREG04801.015
HSEUREG04801.030
HSEUREG04801.050
HSEUREG04801.090
HSEUREG04801.130
HSEUREG04801.180
sales@powersolve.co.uk
Designed for long life under full stress
•
Strong input filters
•
High reliability, shock & vibration proof
•
Over Voltage and continuous short circuit protection
•
EMI/EMS EN61000-6-2,3, EN55032 class B
•
EN61010-1, EN61010-2-201, EN62368-1
•
Voltage Programmable
0 – 15Vdc
0 – 30Vdc
0 – 50Vdc
0 – 90Vdc
0 – 130Vdc
0 – 180Vdc
www.powersolve.co.uk
HSEUREG04801(R2) MANUAL
Current
26A
16A
10A
5,3A
3,7A
2,7A
020321
Advertisement
Table of Contents
Related Manuals for Camtec Powersolve HSEUREG04801 Series
Summary of Contents for Camtec Powersolve HSEUREG04801 Series
- Page 1 HSEUREG04801(R2) MANUAL HSEUREG04801 480W Programmable DC Lab Power Supply, TS35mm DIN-Rail Specification: Voltage programming from 0V Designed for long life under full stress • • Multi interface 0-10V & 0-20mA Strong input filters • • Sense & Shutdown (remote ON/OFF) High reliability, shock &...
-
Page 2: Technical Concept
The HSEUREG power supply series realizes high programmable power in a space-saving housing. Latest generation electrical devices relate to the high reliability of all CAMTEC products. The CAMTEC philosophy is, to employ 125°C low ESR ultra long-life capacitors where expedient to achieve a superior lifetime of the product. The HSEUREG power supply is made for high reliable and demanding industrial... -
Page 3: Technical Table
HSEUREG04801(R2) MANUAL Technical Table AC Input Range 90-132Vac, 184-264Vac (115/230Vac input selector, factory setting is 230Vac) AC Input Frequency 47-63Hz DC Input Range 250Vdc-375Vdc (input selector set to 230Vac) AC Input Rated 115Vac<9.0A 230Vac<4.9A DC Input Rated 250Vdc<2.4A 375Vdc<1.6A (input selector set to 230Vac rated) DC Voltage Programmable 0 - 15V 0 - 30V... - Page 4 HSEUREG04801(R2) MANUAL Manual und Technical Details Programming Time Vout [ms] Model 0-15V 0-30V 0-50V 0-90V 0-130V 0-180V Rise Time 0-100%, 10/100% Last, [ms] typ. 15/15 15/15 15/15 15/15 15/15 15/15 Slew Rate 90-10%, 10/100% Last, [ms] typ. 48/4.8 155/15.5 74/7.4 86/8.6 78/7.8 149/14.9...
- Page 5 HSEUREG04801(R2) MANUAL Compensation of Load Line Voltage Drop (Sense +/-), standard operation mode The HSEUREG power supply has a Sense Mode to compensate for the Local Sensing: voltage drop over long load lines. The compensation amounts to a maximum of 2V per load line. Under certain circumstances, it can be expected to apply more complicated external interference suppression.
-
Page 6: Temperature Derating
HSEUREG04801(R2) MANUAL Temperature Derating The maximum ambient temperature during operation is + 70°C. If the over temperature protection is activated, the power supply is switched off. The measuring point is 50mm outside the power supply. The power supply unit starts automatically when it has cooled down. Series Operation Two or more units of the same model and output voltage can be operated up to a total voltage of 240Vdc in series. - Page 7 HSEUREG04801(R2) MANUAL Mechanics ST-HD Baseplate Cooling & Temperature Management The temperature management of the HSEUREG series provides a direct dissipation of the main energy losses. The internal coolers of the output diodes and the power FETs connect to the back-plate cooler. It is possible to dissipate about 40 –...
- Page 8 HSEUREG04801(R2) MANUAL Mechanics & Installation Instruction of the HSEUREG Stable metal/aluminium housing IP20. To allow adequate convection, a free air space of 50mm (top/bottom) and 10mm (sidewalls) is required; and for active devices 15mm space from the sidewalls. One can use the DIN-Rail installation (equipped standard) with our patented 35mm DIN-Rail bracket according to EN60715.
-
Page 9: Ordering Information
HSEUREG04801(R2) MANUAL Connections Clamping Yoke Connector Specifications Input / Output connections Optional Signal connections plugs Tightening torque min. – max. 1,2 – 2,2Nm (blade 1,0x5,5 DIN5264 ) 0,4 – 0,5Nm (blade 0,6x3,5 PH1 PZ1) Touch-safe protection acc. to DIN VDE 0470 IP20 plugged/ IP10 unplugged Not applicable Clamping range, min. - Page 10 HSEUREG04801(R2) MANUAL Safety regulations: Please read these instructions completely before using the equipment. Keep these instructions on to hand. The device may only be operated by trained specialist staff. Installation: Warning 1) The device is designed for devices and systems Non-compliance these warnings can result in fire that meet the standard requirements for hazardous and serious injury or death.
