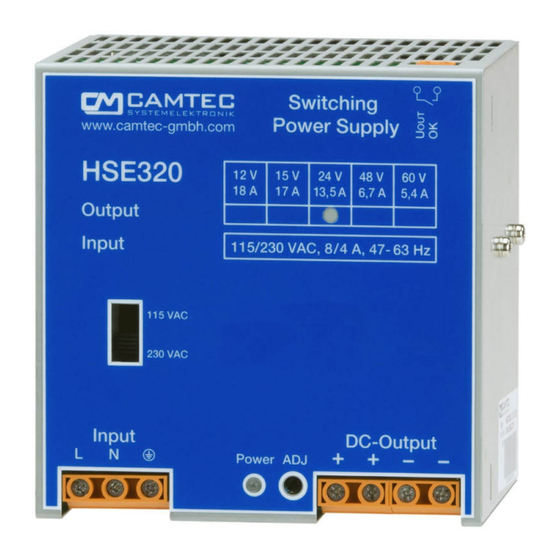

HSE03201LIRC
320 Watts Power Supply -20...+70°C
115/230Vac Input Voltage – low inrush
Short Specification:
•
Metal housing
•
Up to 91% efficiency
•
-20°C...+60°C full output power
•
C/V curve down to 0V, no fold back
•
Free air convection
•
Galvanic insulated
•
Continuous short circuit protected
•
Overload & low voltage protected
•
Open Circuit Proof
•
Soft start & auto-recovery
Models
Voltage
HSE03201.05T
5V-9V
HSE03201.12T
12V
HSE03201.15T
15V
HSE03201.24T
24V
HSE03201.36T
36V
HSE03201.48T
48V
HSE03201.60T
60V
Camtec Power Supplies GmbH - Gewerbestrasse 30 - 76327 Pfinztal - Germany
Phone +49(721)46596-0 - Fax +49(721)46596-77 -
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death
Current
18A
18A
17A
13.5A
8.9A
6.7A
5.4A
www.camtec-gmbh.com
DIN Rail
Made in Germany
•
Hold up time >30ms
•
Switching frequency typ. 100KHz
•
EMI/EMS EN61000-6-2,3, EN55022 class B
•
PFC: EN61000-3-2 class A
•
IEC(EN)60950-1
•
Series & parallel operation
•
DIN Rail 35mm
•
Screw terminals AWG21...AWG10
•
24 hours burn in test
•
High reliability, shock & vibration resistant
p. 1/5 (07.2014-04-1)
-
