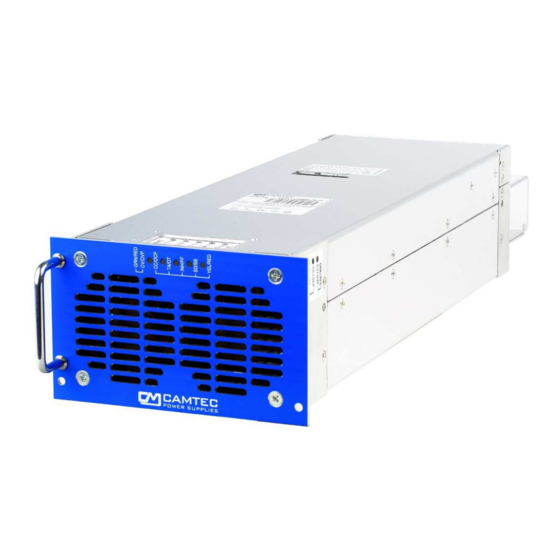

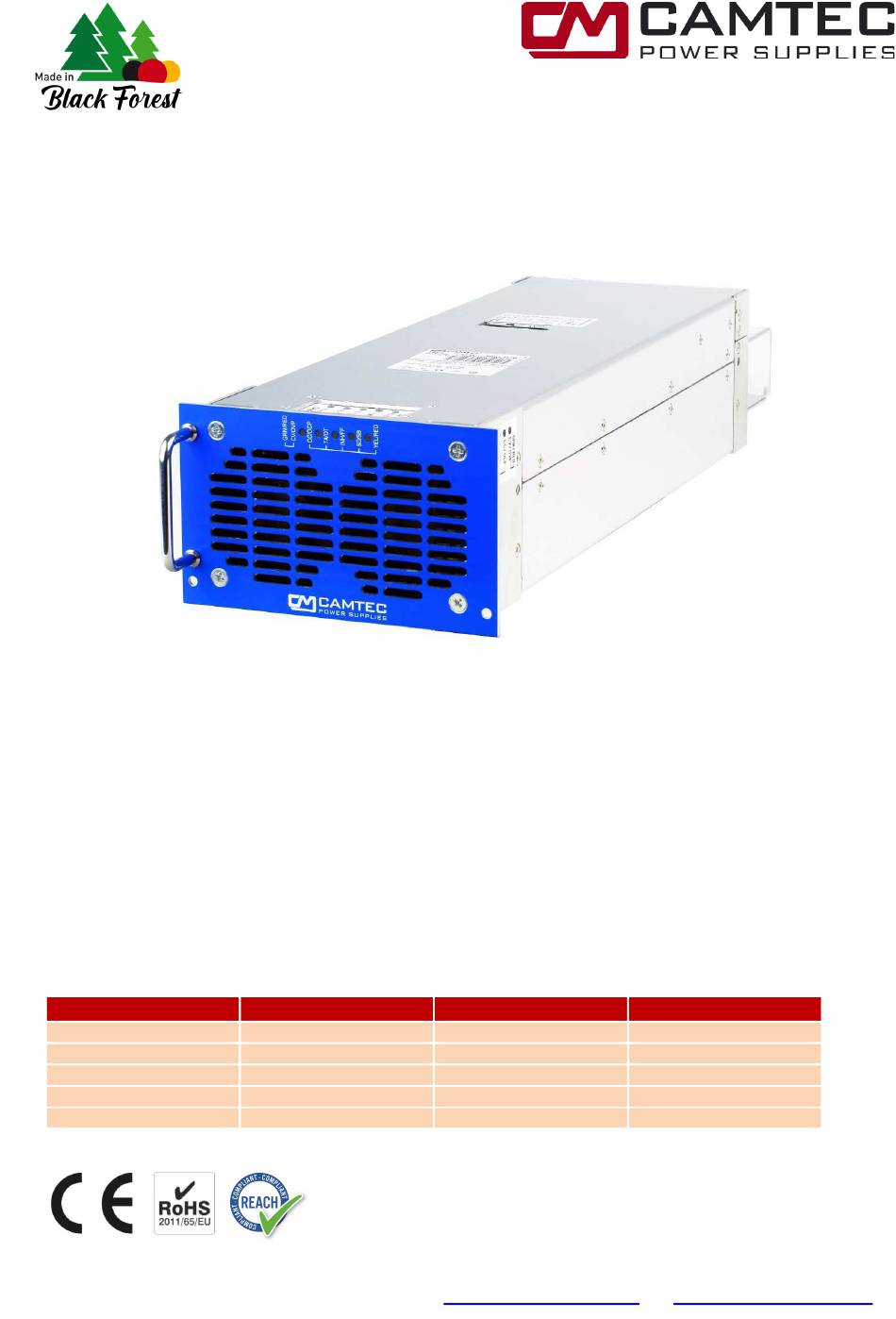

CPS-EP2000
19" embedded 2U/3U or hardmount in all positions, PFC 0,99
Features:
•
3D Heat Dissipation
•
CSB Current Share Bus
•
Inhibit for safe interlocking
•
Remote Shutdown
•
Sense mode
•
Current Monitoring 0-5V
•
Power Good Relay DC-ok
Model
CPS-EP2000.024
CPS-EP2000.036
CPS-EP2000.048
CPS-EP2000.072
CPS-EP2000.110
Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany
Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
2000W Power Supply scalable
Voltage
24Vdc
36Vdc
48Vdc
72Vdc
110Vdc
CPS-EP2000(R2) MANUAL
•
Precise dynamics on load change
•
Series & parallel operation up to 100kW
•
EMC conducted class B, radiated class A
•
Efficiency 92-94%
•
PFC Powerfactor 0,99
•
Variable controlled fans from Papst
•
Long lifetime under hard operation
•
Solid 2U and 3U subframes available
Voltage setting
24 – 30Vdc
30 – 45Vdc
45 – 58Vdc
58 – 90Vdc
90 – 150Vdc
www.camtec-gmbh.com
Current
84A
56A
42A
28A
18,2A
P.1/19 (01/2018.01.1)
-
info@camtec-gmbh.com
Advertisement
Table of Contents
Related Manuals for Camtec CPS-EP2000
Summary of Contents for Camtec CPS-EP2000
- Page 1 58 – 90Vdc CPS-EP2000.110 110Vdc 90 – 150Vdc 18,2A Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.1/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
- Page 2 EN61010-1, EN61010-2-201, EN62368-1 and the EMC standards EN55032 conducted Class B, radiated Class A. The mechanical design of the CPS-EP2000 device series is unique. It is the first power supply line in the world market, which can be flexibly adapted to any installation situation.
- Page 3 Design-to-Service: Most recorded failures in the field concern the signal interface of a power supply. Camtec offers new concept of design-to-service that allows the customer easily to exchange the interface himself in the field. The analogue and digital interfaces apply plug & play self calibrating and can be used independent from the model CPS-i/EX/EP 2000 &...
-
Page 4: Technical Data Table
Output Capacity, [mF] typ. 19,4 3,74 1,07 0,52 Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.4/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death) - Page 5 Sense Connection 2V / load line Sense + Input Sense Connection Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.5/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
- Page 6 CPS-EP2000(R2) MANUAL Schematic of the internal circuits CON1 - 4 Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.6/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
- Page 7 Copy of the original instruction: http://www.neutrik.com/de/powercon/powercon-20-a/nac3fca Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.7/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
-
Page 8: Remote Sensing
WARNING! PROTECT TO MIX UP SENSE CONNECTIONS. THIS COULD CAUSE SERIOUS DAMAGE TO THE DEVICE. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.8/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com... - Page 9 Continuous Mode Operation Device The device provides continuous current while overloaded and the voltage goes down. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.9/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 10 The alarm signal OT is high when the temperature of the power supply is higher than the over-temperature protection threshold. Output Open Collector I =10mA, V ≤0,6V, V =30V. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.10/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com...
- Page 11 The measuring point is 50mm outside the power supply at the front side (fan/blower input). The power supply unit starts automatically when it has cooled down. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.11/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
- Page 12 The CPS-EP models have no internal O-ring diode, to operate the devices N+1 redundant. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.12/19 (01/2018.01.1) Tel.
- Page 13 CPS-EP2000(R2) MANUAL Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.13/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
-
Page 14: Analogue Interface
If the residual voltage is ≥60Vdc, observe the safety standards. Use only specially insulated screwdriver to trim the Ua/Ia. ANALOGUE INTERFACE Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.14/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com... - Page 15 An optional cable- accession assistance for the racks will be available soon. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.15/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com info@camtec-gmbh.com...
- Page 16 CPS-EP2000(R2) MANUAL 19“Subrack 2U & 3U 2U Subrack for 1-3 CPS-EP2000 with up to 6kW continuous power 3U Subrack for 1-5 CPS-EP2000 with up to 10kW continuous power Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.16/19 (01/2018.01.1)
- Page 17 Wall Mount Option & 3D Heat Dissipation (3D-HD) Our aligned and controlled heat dissipation design opens possibilities that are formerly being reserved to custom design power supplies: Steplessly hard mount of the CPS-EP2000/3000 power supply modules in a 3D- room.
-
Page 18: Available Options
A manufacturer calibration of a CPS-i can frequently be done via controlled recirculation on a regular basis. Please request the help of your local CPS dealer or contact us directly: service@camtec-gmbh.com Ordering Codes... - Page 19 All parameters after 15 minutes of continuous operation at full load / 25°C / 230Vac 50/60Hz, unless otherwise indicated. Camtec Power Supplies GmbH - Gewerbestrasse 30 - DE-76327 Pfinztal / Germany P.19/19 (01/2018.01.1) Tel. +49 (721) 46596 - 0 Fax +49 (721) 46596 - 77 www.camtec-gmbh.com...
