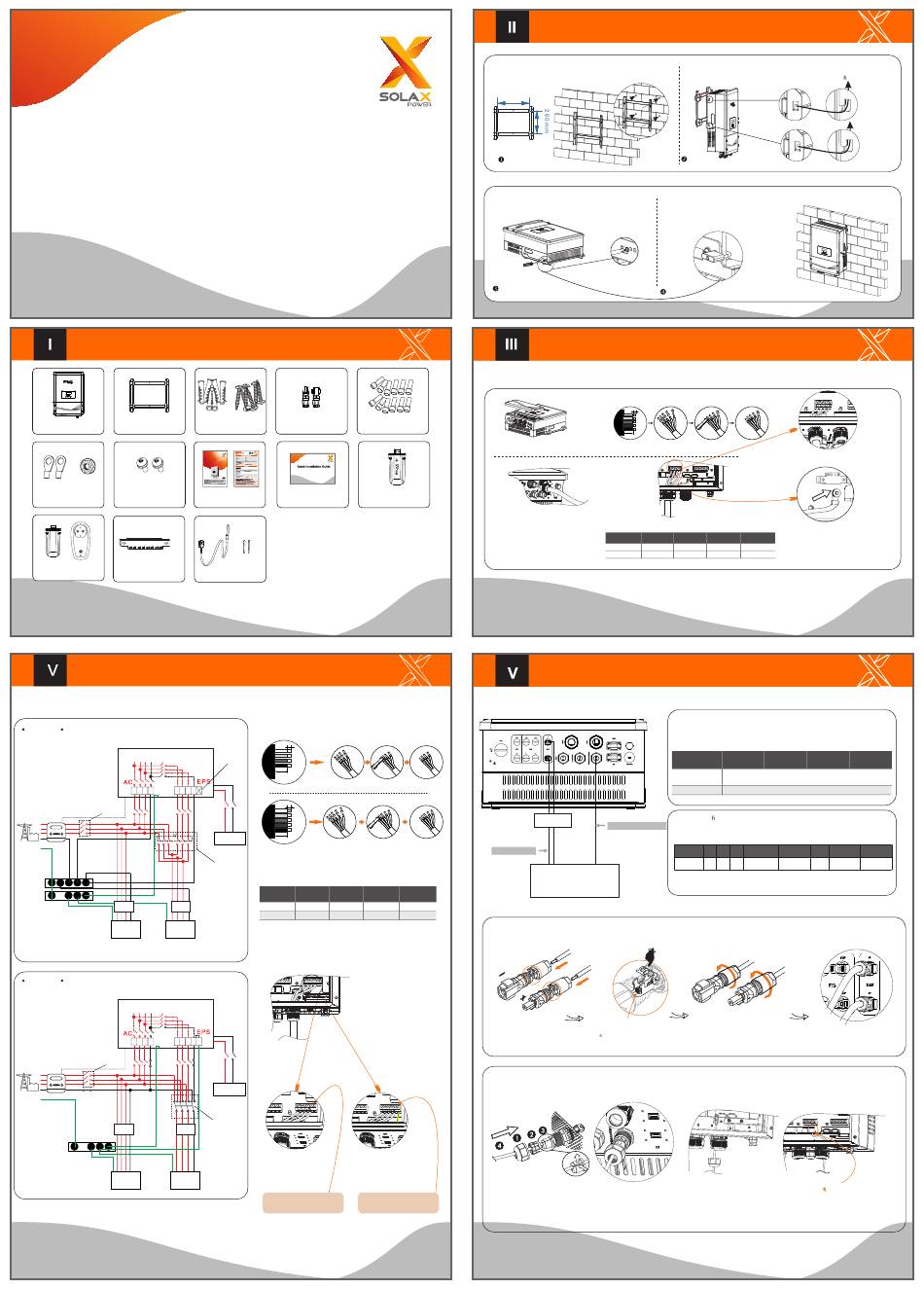

SolaX Power X3-Retro Fit 8kW-10kW Quick Installation Manual

Quick Installation Guide
X3-Retro Fit 8kW-10kW

Packing List

B
A
F G H
N
M
EPS Connection(for E Version )
I
EPS wiring diagram
E Version For AU/NZ
SolaX X3-Retro Fit inverter
L1 L2 L3 N L1 L2 L3 N
Main switch
SolaX meter
L1
L2
L3
N
PE
Changeover device with
interlocked switching
N-BAR
E-BAR
RCD RCD
E L1 L2 L3 N E L1 L2 L3 N
EPS
Loads
Loads
E Version For Other Countries
SolaX X3-Retro Fit inverter
L1 L2 L3 N L1 L2 L3 N PE
Main switch
SolaX meter
L1
L2
L3
N
PE
RCD RCD
E-BAR
E L1 L2 L3 N E L1 L2 L3 N
EPS
Loads
Loads
This function can be achieved manually or automatically according to
user's preference.
For manual solution, please install an external switch.
C
D
X3-Retro Fit User Manual
8.0kW - 10.0kW
X3-Retro-Fit 8kW-10kW
I J K
O P
EPS connection steps:
1. Make wire(EPS cable size: refer to table 2)
the cable is not 12mm
L 1
required for L 2
L 3
Australia
N
60mm
For Australia/New Zealand
+ -
12mm
L 1
L 2
L 3
N
P E
60mm
Battery
For other countries
table2: Cable and Micro-breaker recommended
Model
X3-Fit-8.0-E X3-Fit-8.0-C X3-Fit-10.0-E
EPS Cable ≥5mm² ≥5mm² ≥5mm²
EPS breaker 32A 32A 32A
2. Insert EPS cable into EPS port through screw cap.
(One-word screwdriver.torque:2±0.1Nm)
+ -
Battery
DPDT
Australia/New Zealand other countries
Note: The right most port Note: Connect
PE
wire into
should not be connected ! PE port at right side!
-
Mark position of six holes.
-
Drill holes with φ10 drill. Depth: at least 60mm.
-
Tighten the expansion tubes. Screw the expansion screws.
(The sleeve.torque: 12±0.2Nm)
369 mm
- Screw the set screw on the right-top of
inverter tightly.(PH1 cross screwdriver.
torque:3±0.1Nm)
AC connection
steps(AC cable size:
refer to table1):
E
1.Remove the
top-down cover.
φ4
hexagon wrench
( .torque:3±0.1Nm)
L
3.
Insert AC cable into AC port
through screw cap.

Battery connection diagram
Nonpolarized
DC breaker
Power connection
+
-
high-voltage lithium battery.
X3-Fit-10.0-C
≥5mm²
32A
A:Power Connection Steps:
(tighten torque:3.0Nm)
B:Communication Connection Steps:
PE
Step1: Disassemble the GEN/Meter
/BMS cable gland.
(tighten torque:2.0Nm)

Mounting Steps

- Aim the upper side of the inverter to the top small hook of
the bracket.
-
Make the bottom of the inverter lean on the bracket.
-
Press the inverter slightly toward the hole to make it rmly installed.
- If necessary, customer can install an
anti-theft lock on the right-top of the
inverter.

AC Connection

12mm
L 1
L 2
L 3
N
P E
60mm
2. Make AC wires.
4. Connect the wire to the AC terminal in the inverter.

Model X3-Fit-8.0-E X3-Fit-8.0-C X3-Fit-10.0-E
Cable 4-5mm² 4-5mm² 5-6mm²
Micro-breaker 25A 25A 32A
table1
Battery Connection(optional)
Battery breaker
Before connecting to battey, please install a nonpolarized DC breaker to make
sure inverter can be securely disconnected during maintanance.
Model
X3-Fit-8.0-E
Nominal voltage of DC breaker should be larger than maximum
Voltage
voltage of battery.
Current[A]
BMS PIN De nition
Communication connection
Communication interface bewteen inverter and battery is CAN with a RJ45
connector.


PIN 1 2 3
Definition
NTC GND GND
CAN
Note: The battery communication can only work when the battery BMS is
compatible

with
the
inverter.


Press down spring until it clicks audibly into place
wire strands
(tighten torque:3.0Nm)
The ne wire strands must be seen in the champer
Step2: Prepare a communication Step3:Assemble the cable gland and
cable(without sheath)and insert screw the cable nut.
the communication cable through
(tighten torque:3.0Nm)
the cable nut.
-
Overview of Mounting
a.
L-wire,N-wire connection
b.
PE wire connection
(The sleeve .torque:4±0.1Nm)
X3-Fit-10.0-C
5-6mm²
32A
X3-Fit-8.0-C X3-Fit-10.0-E X3-Fit-10.0-C
32A
4 5 6 7 8
BMS_CANH BMS_CANL BMS_485A BMS_485B
GND
(tighten torque:3.0Nm)
BMS Port:
The rst RJ45 port from right
Step4: Insert one RJ45 side of the cable into
BMS port inside of inverter and the other side
into RS485 or Can port of the battery.
