Assembly Instructions

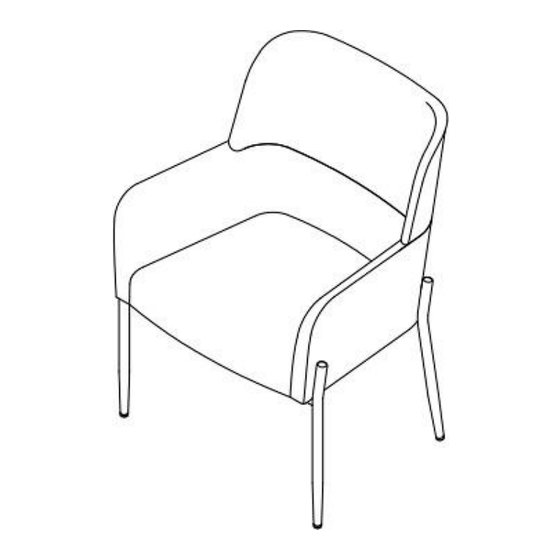

ALBA DINING CHAIR
SKU 629816, 629817, 639828
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY.
2023.08.03
PAGE 1
Advertisement
Table of Contents
Related Manuals for World Market ALBA 29816
Summary of Contents for World Market ALBA 29816
- Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
-
Page 2: Component List
Component List LABEL PICTURE DESCRIPTION QTY. Upholstered Seat Front Legs Back Legs Side Rails Hardware List LABEL DESCRIPTION QTY. Spring Washer 1/4 x 10 x 1.0 mm Flat Washer 1/4 x 19 x 1.0 mm Long Allen Bolt 1/4 x 45 mm Short Allen Bolt 1/4 x 15 mm Tool List LABEL... -
Page 3: Assembly Preparation
Assemble on a clean non-marring surface (such as the product’s packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at 1-877-967-5362. -
Page 4: Assembly Steps
Assembly Steps Step 1 Position both Side Rails (D) with Front and Back Legs (B and C) by inserting the protruding KD rods into both ends of the Side Rails (D). ENSURE THE HOLES ARE FACING DOWNWARDS. Step2 (H-4 x 4) Short Allen Bolt (H-2 x 4) Flat Washer (H-1 x 4) Spring Washer Washer... - Page 5 Assembly Steps Step 3 FRONT Turn the Seat (A) upside down on an elevated, non-marring surface with the backrest hanging off the edge, such as a dining table. Position base assembly onto the bottom of the Seat (A) as shown above. Ensure the front of the base assembly is oriented in the same direction as the front of the Seat (A).
- Page 6 Assembly Steps Step 5 Levelers are located on the bottom of each leg and may be used for additional adjustment if needed for uneven surfaces. Carefully turn assembly upright. Assembly is now complete and the product is ready for use. Adjustable levelers are located on the bottom of each leg and may be adjusted by turning outwards, counter-clockwise to help account for uneven surfaces.
-
Page 7: Care And Maintenance
NOTE: World Market sofa cushions may provide a firm seat experience on initial use. This is normal and by design–with time and continued use, the cushions will break in and become softer. Follow fluffing instructions below to rejuvenate cushions. - Page 8 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par�al credit, in the sole discre�on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
