Assembly Instructions

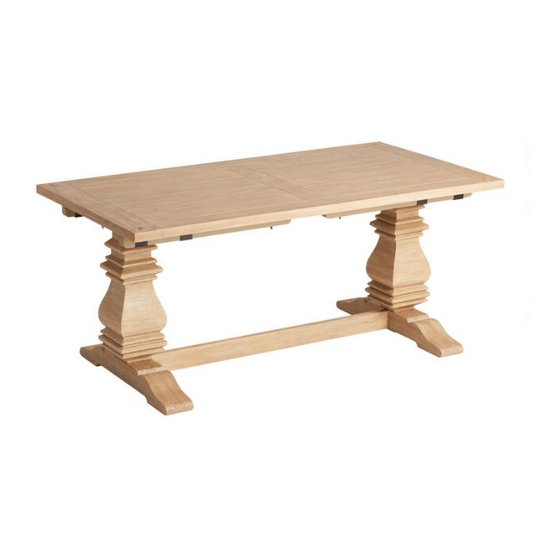

Avila Extension Dining Table
SKU-602534
THANK YOU FOR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST COST PLUS WORLD MARKET STORE.
IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
NOT FOR COMMERCIAL USE.
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for World Market Avila 602534
Summary of Contents for World Market Avila 602534
- Page 1 THANK YOU FOR PURCHASE. IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
- Page 2 Component List LABEL PICTURE DESCRIPTION Table Top Extension Table Top Table Support Panel Leg Post Stretcher Leg Base Page 2...
- Page 3 Hardware List LABEL PICTURE DESCRIPTION Spring Washer Ø13 x M8 Flat Washer Ø17 x M8 Connector Plate Screw M6 x 3/4 Inch Short Allen Bolt M6 x 35mm Medium Allen Bolt M6 x 70mm Long Allen Bolt M6 x 100mm Tool List DESCRIPTION LABEL...
- Page 4 Assembly Preparation Before Beginning : x 34 x 32 x 24 • Unpack all hardware bags and components to ensure you have all parts- • Read instructions, cover to cover- • Have 2 adults on hand for assembly- • Do not assemble on flooring or carpet- •...
- Page 5 Assembly Steps STEP 1 Attaching Foot Leg Spring Washer ( ∅ 13xM8) x 8 Flat Washer ( ∅ 17x M8) x 8 Long Allen Bolt (M6 x 100) x 8 Attach Leg Base (F) to Leg Post (D) using Long Allen Bolts (H-7), Spring Washer (H-1) and Flat Washer (H-2), Stacking the hardware in the order as shown .
- Page 6 Assembly Steps STEP 3 Attaching Support Spring Washer ( ∅ 13xM8) x 8 Flat Washer ( ∅ 17x M8) x 8 Short Allen Bolt (M6 x 35) x 8 Using a second person to assist you, carefully turn the assembly from Step 2 upright as shown. Align Table Support Panels (C) with the corresponding pre-drilled holes on the tops of the Leg Posts (D) as shown.
- Page 7 Assembly Steps STEP 5 Attaching Extension Table Top Insert both Extension Table Tops (B) into position as shown, making sure the lower wooden support arms hook under the main Table Top (A) assembly. STEP 6 Lock Extension Table Top NOTE : Levelers on the bottoms of the Leg Bases may be used for additional leveling adjustment if needed 1) Ensure that the clasp ring on each toggle clamp has engaged the corresponding hook and then push the clamp closed...
- Page 8 Care & Maintenance Page 8...
