Assembly Instructions

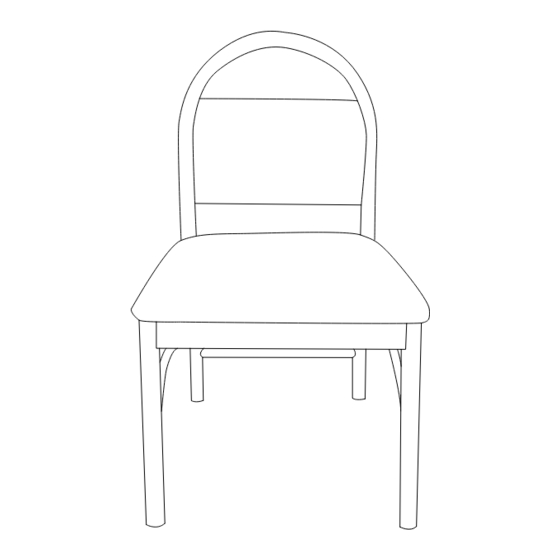

BRENNA ARCH DINING SIDE CHAIR
SKU 622502
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY.
2023.08.09
PAGE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for World Market BRENNA ARCH 622502
Summary of Contents for World Market BRENNA ARCH 622502
- Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
- Page 2 Component List LABEL PICTURE DESCRIPTION Back Seat Body Left Front Leg Right Front Leg Left Stretcher Right Stretcher Hardware List LABEL DESCRIPTION Medium KD Bolt M8 45mm × Flat Washer Spring Washer Large KD Bolt M8 75mm × Small KD Bolt M6 30mm ×...
- Page 3 Assemble on a clean non-marring surface (such as the product’s packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362 WARNING: Small parts are a choking Hazard.
- Page 4 Assembly Steps Step 1 (H-1) Medium KD Bolt M8×45mm×5 (H-3) Spring Washer× 5 (H-2) Flat Washer×5 IMPORTANT: Please make note of the different hard ware sizes and ensure you are using the correct size hardware (bolts,screws, and Adjusted Glider washers) for each step. Please place Back (A) down onto a padded, non-marring surface with the front facing upwards.
- Page 5 Assembly Steps Step 2 (H-1) Large KD Bolt M8×7 mm×4 (H-3) Spring Washer×4 (H-2) Flat Washer×4 Position Left Front Leg (LF) and Right Front Leg (RF) into position as shown. Secure the legs with Large KD Bolts (H-4), Spring Washers (H-3) and Flat Washers (H-2) using provided M8 Allen Wrench (T-1), stacking the hardware in the order as shown.
- Page 6 Assembly Steps Step 3 (H- ) 5 Small KD Bolt M × 6 30 mm× mm× H -6 ) Woo d Scr ew L35 Screwdriver is not included in tool, pls self-provided. Position the Left Stretcher (LS) and Right Stretcher (RS) between the legs as shown, careful not to scratch the legs.
- Page 7 Warnings All products sold at World Market are not for commercial use and are intended for residential use only. Care & Maintenance DO NOT put hot items directly on furniture surface. DO NOT clean furniture with harsh cleansers or polish.
- Page 8 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or partial credit, in the sole discretion of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
