Fusion Embedded Development Kit
QSG0180 Quickstart Guide
Kit Contents – M1AFS-EMBEDDED-KIT-2
Quantity
1

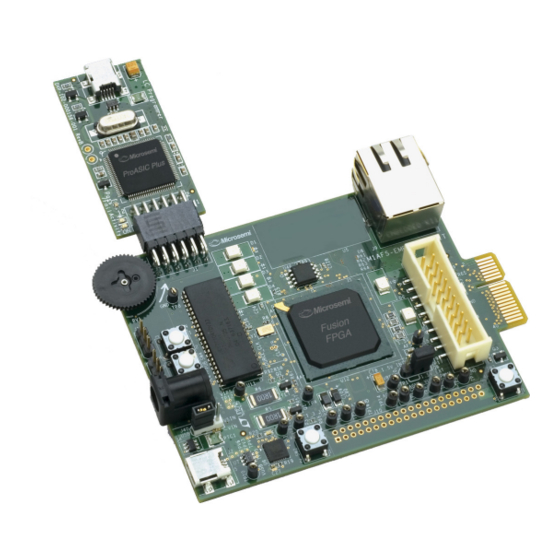

Fusion Embedded Starter Kit board with M1AFS1500-FGG484 Fusion device
1
Low-cost programming stick (LCPS)
2
USB 2.0 A to Mini-B cables
1
5 V power pack and modular plugs for power supply
Potentiometer
Push-Button
Reset
Push-Button
PUB
Two I2C
Interfaces
5 V Wall
Jack
SRAM
USB
Interface
© 2015 Microsemi Corporation. All rights reserved.
LCPS
User
Interface
LEDs
Push-Button
Fusion
Switch
FPGA
Description
SPI
Flash
Mixed-Signal
Mixed-Signal
Test Pins
Header
Ethernet
Interface
Ethernet
LEDs
Interface
Connector
RealView
Header
Push-Button
Switch
Jumpers for
Internal or
External Regulator
