REVELL Performa C50 User Manual

Revel performa c50: user guide
Hide thumbs Also See for Performa C50:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Installation Manual
®
™
Revel
Performa
C50 Loudspeaker

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Performa C50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REVELL Performa C50

Summary of Contents for REVELL Performa C50

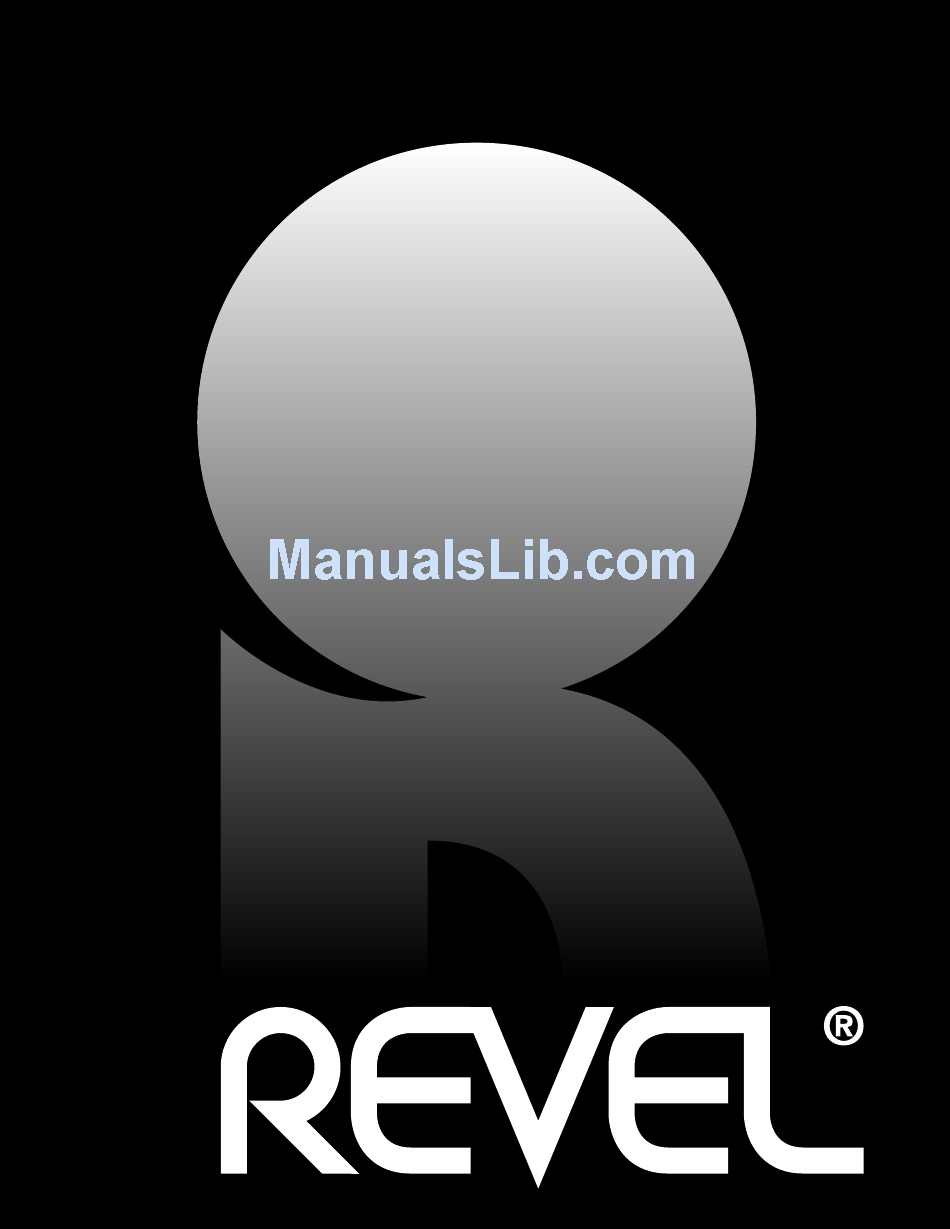

  • Page 1 ® ™ Revel Performa C50 Loudspeaker...

  • Page 2: Table Of Contents

    MIDRANGE ...4 TWEETER ...5 CROSSOVER NETWORK ...5 CABINET ...5 UNPACKING...6 INSTALLING STANDS (OPTIONAL) ...8 INSTALLING SPIKES...10 RELOCATING THE CENTER FOOT ...11 PLACEMENT ...12 CONNECTIONS...14 SYSTEM OPTIMIZATION ...15 CABINET CARE...17 LOUDSPEAKERS AND POWER...17 OBTAINING SERVICE...18 SPECIFICATIONS...19 REVEL PERFORMA C50 Owner’s Manual...

  • Page 3: Introduction

    Revel left and right front loudspeakers. Its superior per- formance, validated by our objective listening tests, will greatly enhance the enjoyment of music or film sound in your home.

  • Page 4: Description

    DESCRIPTION The REVEL PERFORMA C50 loudspeaker uses two 6.5-inch (165 mm) ceramic-composite woofers, a 4-inch (102 mm) ceramic-com- posite midrange, and a 1-inch (25 mm) aluminum-dome tweeter. Woofer Woofer Tweeter Midrange REVEL PERFORMA C50 Front (without grille) Combined with an individually-optimized crossover network, this transducer arrangement provides a uniform “listening window”...

  • Page 5: Tweeter

    • Large co-polymer surround for linear operation over a wide dynamic range. CROSSOVER NETWORK The REVEL PERFORMA C50 crossover is expertly designed to seamlessly integrate the transducers over a wide listening area, and to compensate for a wide range of listening environments. The crossover features: •...

  • Page 6: Unpacking

    To unpack the REVEL PERFORMA C50 loudspeaker, perform the following steps: 1. Place the REVEL PERFORMA C50 loudspeaker onto its side. 2. Open the bottom flaps. Stand the carton in the up position. 3. Lift the carton off the loudspeaker and set it aside, being careful not to damage the contents (see Figure 3).
  • Page 7 Keep all packing materials for future shipping. In the unlikely event a product will need repair, Revel will only accept a unit in its original shipping carton. Using any other packing materials may result in damage to the product and is not covered by the warranty.

  • Page 8: Installing Stands (Optional)

    INSTALLING STANDS (OPTIONAL) 1. Using a Phillips screwdriver, remove the Revel Performa C50 loudspeaker feet and screws (for later attachment to the stand base). Locate the spike foot kit (containing the spikes, lock nuts, covers, screws, and a wrench) in the loudspeaker’s left pad and flat foot in the right pad.
  • Page 9 CARPETED FLOORS 5. Place your Revel Performa C50 loudspeaker as shown onto a carpeted surface or soft towel. Attach the assembled stand with four 8-32 x 3⁄ 4 " flat head screws, as shown in Figure 7. Turn the unit upright.

  • Page 10: Installing Spikes

    1. Remove the spike feet, lock nuts, and wrench from the plastic bag. 2. Lay the REVEL PERFORMA C50 loudspeaker on its top on a carpeted area or soft towel. Use caution to avoid touching the transducers and grille. Remove the black screws that serve as glides on the three feet and store them for future use.

  • Page 11: Relocating The Center Foot

    RELOCATING THE CENTER FOOT As shipped, the REVEL PERFORMA C50 loudspeaker is preset for placement on top of a large-screen television set or deep bookshelf. If your television set or bookshelf is shallower, you’ll need to remove the (rear) center L-foot and install the supplied flat foot in one of two positions for a narrower footprint as follows: 1.

  • Page 12: Placement

    Sound quality is heavily dependent on the accuracy of all your loudspeakers, their placement in the listening room, and the acoustics of the room itself. Since the REVEL PERFORMA C50 center-channel loudspeaker is extremely accurate, experiment with the following loudspeaker systems and placements (Figures 10 through 12) to enhance performance.
  • Page 13 Figure 11. REVEL PERFORMA C50 center-channel loudspeaker mounted on top of rear projection or large direct-view monitor. NOTE: To tilt the loudspeaker downward, see step 3 on page 10. Figure 12. REVEL PERFORMA C50 center-channel loudspeaker flush-mounted in large wall unit.

  • Page 14: Connections

    A high loop resistance will result in mis-termination of the filter networks, and serious degradation of sound quality. Use high-quality connectors on the loudspeaker cables. Consult your Revel dealer as to specific recommendations for your application. • Turn off all audio system power before making any connections.

  • Page 15: System Optimization

    Level (dB) Revel Northridge, California Made in U.S.A. Serial No. SYSTEM OPTIMIZATION 1. After connecting the REVEL PERFORMA C50 loudspeaker, initially set the HIGH FREQUENCY LEVEL control on the rear panel to the “0” position (see Figure 15). REVEL PERFORMA Rear...
  • Page 16 Be sure to set your multi-channel con- troller to a mode that utilizes the center channel. If the REVEL PERFORMA C50 loudspeaker is used in a home theater system, listen to well-recorded dialog from more than one film, as the sound quality can vary greatly.

  • Page 17: Cabinet Care

    CABINET CARE The cabinet for the REVEL PERFORMA C50 loudspeaker has a wood veneer finish and does not require any routine maintenance. Occasionally, use a soft cloth, dampened with household furniture polish, to remove any fingerprints or dust.

  • Page 18: Obtaining Service

    If your Revel component requires service, please contact your dealer. Your dealer will then decide whether the problem can be remedied locally, whether to contact Madrigal for further service information or parts, or to obtain a Return Authorization.

  • Page 19: Specifications

    This conservatively- rated specification indicates high sensitivity and denotes that the REVEL PERFORMA C50 loudspeaker does not require huge amplifiers to achieve realistic levels in all but the largest rooms. Impedance: 5.7 ohms (nominal), 3.2 ohms (minimum)
  • Page 20 Kapton is a registered trademark of the E.I. du Pont de Nemours Company. Telar 57 is a trademark of ARMCO, Inc. Performa and Ultima are trademarks and Revel and Salon are registered trademarks of Harman International Industries, Inc. © Harman International, 2001.
  • Page 21 Figure 17. Overall dimensions for the REVEL PERFORMA C50 loudspeaker with the optional REVEL PERFORMA PEDESTAL 2. (22 mm) 23-7⁄8" (606 mm) 23-1⁄ 8" (588 mm) 7⁄ 8" 26-1⁄4" (667 mm) 1-1⁄ 8" (29 mm) 8-1⁄ 2" (216 mm) 9-1 ⁄ 8"...
  • Page 22 NOTES REVEL PERFORMA C50 Owner’s Manual...
  • Page 24 8500 B ALBOA OULEVARD , CA 91329 ORTHRIDGE PH: (818) 830-8777 • FAX: (818) 892-4960 www.revelspeakers.com P/N 338423-001...
