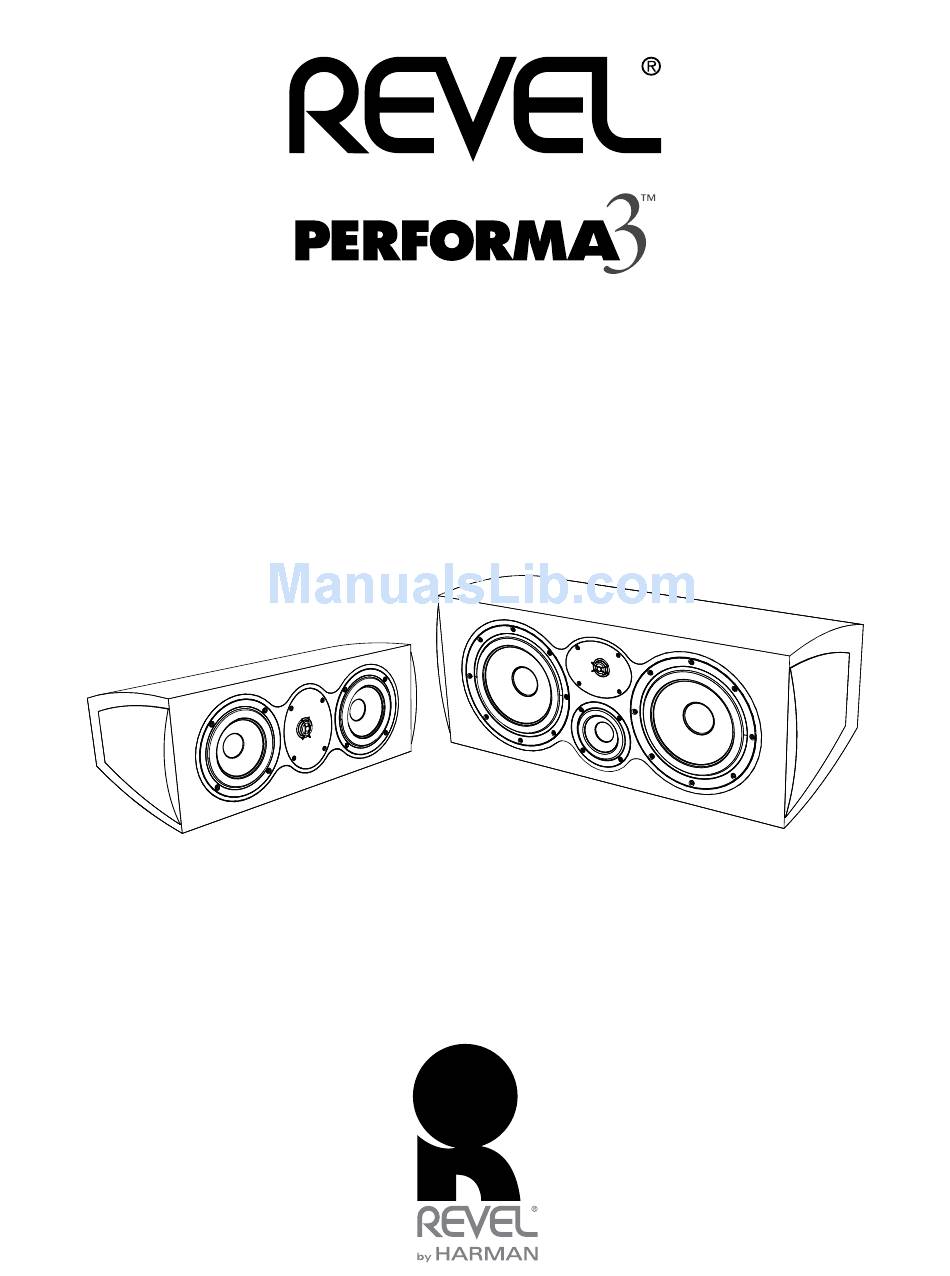

- Page 1 C208/C205 Center Channel Loudspeaker Owner’s Manual...
-
Page 2: Table Of Contents
The C208 and C205 are housed in enclosures that are similar to our flagship Ultima2 Series. These fully-curved enclosures feature sleek curved tops and bottoms, which are inherently stiffer than conventional box shapes and are formed with contiguous wood layers that prevent splitting. -
Page 3: C208/C205 Overview
Acoustic with Cast Frame Cast Frames Lens Waveguide C208 Dual 8" Aluminum Cone Woofers with Cast Frames Tweeter Level Switch Low-Frequency Compensation Switch Binding Posts Binding Posts Shorting Straps C205 C208 Revel Performa3 C208/C205 Center Channel Loudspeaker Owner’s Manual... -
Page 4: Installation Considerations
Optional Performa3 C Stand pedestal stands are available for the or + 1dB. C208 and C205 that place the loudspeakers at the proper height for installation below a TV display. Refer to the assembly instructions that are included with the stands for additional information. -
Page 5: Making Connections
ConneCtions AdjustAble feet C208 and C205 loudspeakers include two sets of adjustable feet, one short and one long that let you angle the loudspeaker up or down so it CAUTiOn: never make or break connections unless all is aiming towards listeners’ ears when it is installed above or below a system components are powered off. - Page 6 Connector Panel • The standard connection method uses a single loudspeaker cable. The C208 is equipped with two pairs of input terminals to allow for To make single-wired connections, connect one loudspeaker cable to bi-wiring or bi-amping. While Revel does not endorse one particular the desired set of C208 input terminals.
- Page 7 Bi-amped connections are made between both pairs of C208 input terminals and two separate output channels of a single power amplifier. Each C208 input is connected to an individual power amplifier channel, which can sometimes increase sonic performance. Y-Adapter for...
-
Page 8: Optimizing Performance
The high-order filters employed in Revel Performa3 series loudspeakers C208 Adjustments include steep cut-offs to reduce potential transducer damage from As discussed in the C208/C205 Overview section on page 2, the C208 has “out-of-band” frequencies. Combined with carefully selected Low-Frequency Compensation and Tweeter Level adjustments that allow... -
Page 9: Specifications
Inputs: Gold-plated binding posts Available finishes: Piano black, piano white, high-gloss walnut Dimensions (H x W x D): 7-7/8" x 21" x 11-1/2" (200mm x 532mm x 292mm) Weight: 26.1 lb (11.9kg) Revel Performa3 C208/C205 Center Channel Loudspeaker Owner’s Manual... - Page 10 Revel Series speakers are warranted against defects. The duration of the speaker’s warranty depends on the laws in the country in which it was purchased. Your local Revel retailer can help you determine the length of your warranty. HARMAN International Industries, Incorporated 8500 Balboa Boulevard, Northridge, CA 91329 USA ©...
