REVELL Performa C32 Install Manual

3 Oak Park Drive, Bedford, MA USA 01730-0413 | Tel: 781-280-0300 | Fax: 781-280-0490 | www.revelspeakers.com | 12/03 | Part No. 352289-001
Step 1: Locate the parts bag (included with the stand) that
contains spikes, screws, lock nuts, Allen wrench and hole
plug. Set all parts aside.

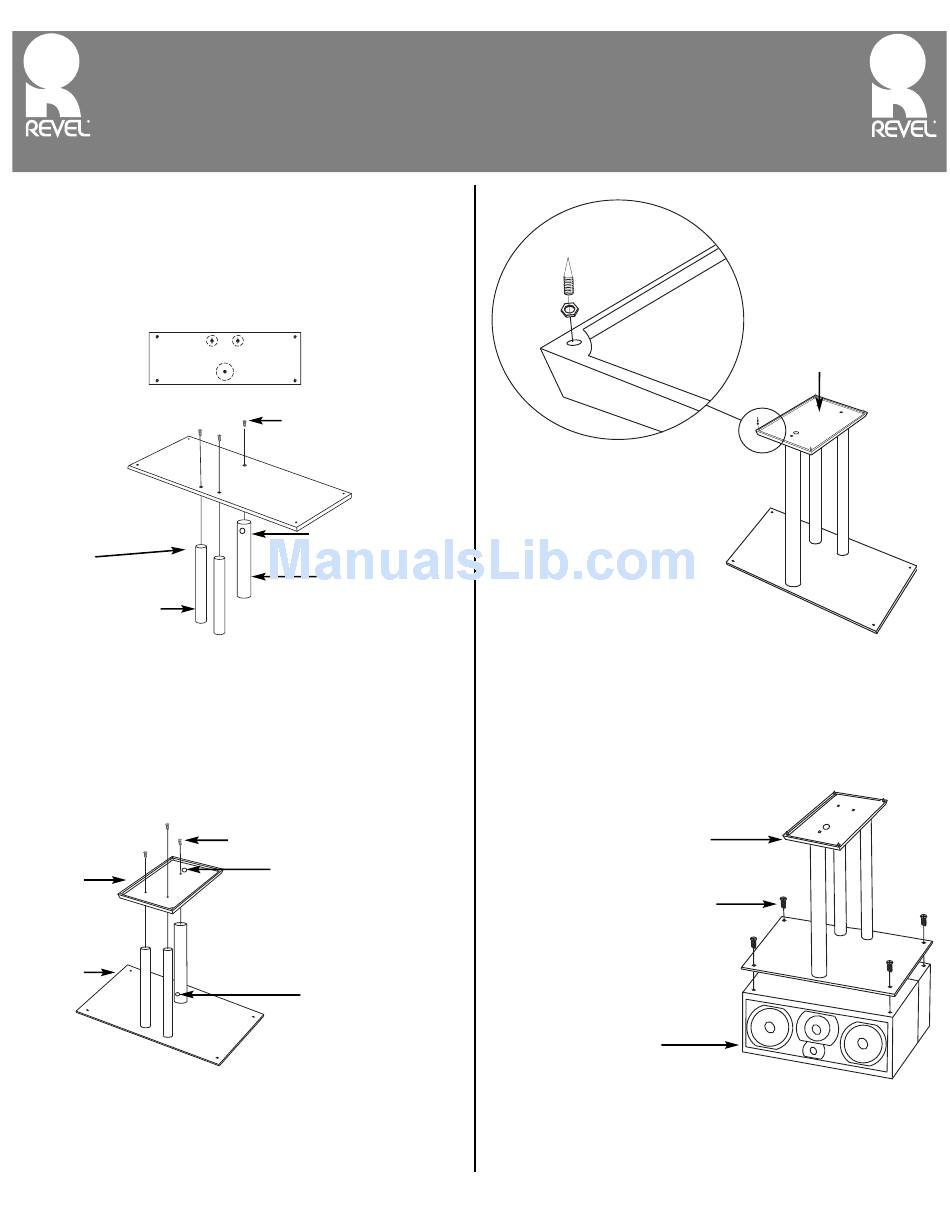

Step 2: Begin the stand assembly by fastening the three tubes
to the top plate with three enclosed 6mm x 18mm Phillips
flat head screws. Start all screws by hand before tightening
with a screwdriver.
Fasten angled end
of tubes to the Top
Plate.
(2) Smaller Tubes
There are different size threads on each end of the tube(s).
Make sure that the end attached to the top plate properly fits
the 6mm x 18mm screws before attempting to tighten. It is not
possible to attach the wrong end to the top plate as the threads
will not fit the 8mm x 20mm screws which are used to attach
to the bottom base.
Step 3: Place the stand upside-down and attach the bottom
base with three 8mm x 20mm hex cap screws using the
Allen wrench (included).
B o t t o m
Base
Top Plate
(Rear)
Step 4: With the stand upside-down as shown at the top of the
next column, install the spikes (from Step 1) to the bottom
of the base. Thread spikes about halfway and then use a
wrench or pliers to tighten the locking nut. Tighten all
screws again after stand is assembled. Turn stand upright and
adjust spikes if required.
Performa Pedestal 32/50a

Assembly Instructions

Top View of Top
Plate
(3) 6mm x 18mm flat
head screws
Top Wire Access Hole
(1) Large Tube
(3) 8mm x 20mm hex cap screws
Bottom Wire Access Hole
Thread the end of the speaker wire
into the pedestal through the top
wire access hole at the rear of the
large tube and back out through
the hole in the bottom base.
Top Wire Access Hole
Spike
Nut
Step 5: Place the Loudspeaker* as shown onto a carpeted surface
or a soft towel. Attach the assembled stand with four 8-32 x
3/4 Phillips flat head screws.
Revel Performa
Pedestal 32
(Assembled)
(4) 8-32 x 3/4" flat head screws
(Start All Screws By Hand Before
Tightening with Screwdriver)
Loudspeaker*
* The Performa Pedestal 32/50a is designed to support either
the Revel Performa C32 Loudspeaker or the Revel Performa
C50a Loudspeaker.
Bottom
Base
