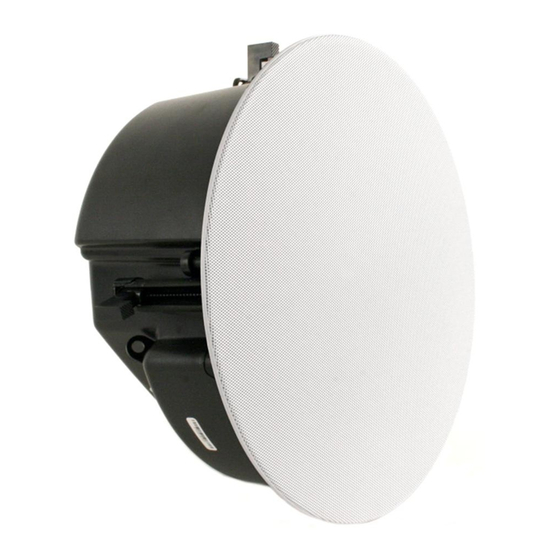

- Page 1 C763L In-Ceiling LCR Loudspeaker Instruction Manual...
-
Page 2: Documentation Conventions
Note: Calls attention to information that aids in the installation or operation of the product. Box ConTenTs Your Revel C763L in-ceiling LCR loudspeaker box should contain the following items: 1 x Revel C763L in-ceiling LCR loudspeaker 1 x round grille... - Page 3 2 ft (0.6m) from side and rear walls. More than 2' (0.6m) – 10 ° ° Surround Left Surround Right Surround Surround Back Left Back Right More than 2' (0.6m) C763L In-Ceiling LCR Loudspeaker Instruction Manual...
-
Page 4: Installation Instructions
Terminal (Red) damages resulting from improper installation or a fallen loudspeaker. CAUTION: Revel C763L loudspeakers are specifically designed to be used only at frequencies above 80Hz, with a suitable 80Hz or higher electronic crossover and powered subwoofer. Do not operate the speakers at full range (below 80Hz). -
Page 5: Mounting The Speakers
6. Make sure all four C2 speaker clamps are in their “ready-to-mount” position. 3. Cut the ceiling drywall along the mark you made in Step 2 to create the mounting cutout. C2 Speaker Clamps in Ready-to-Mount Position C763L In-Ceiling LCR Loudspeaker Instruction Manual... -
Page 6: Using Your Speakers
–: Decreases high-frequency output. Set the switch to this position if the room has many features that reflect high-frequency sound energy, such as large uncovered windows, bare tile floors and large expanses of bare walls, or if the speakers are used without grilles. C763L In-Ceiling LCR Loudspeaker Instruction Manual... -
Page 7: Specifications
Return authorization must first be obtained brochures or packaging cartons, the terms of this warranty will prevail. by either calling or writing Customer Service prior to shipping the product. The customer is responsible for shipping charges to the C763L In-Ceiling LCR Loudspeaker Instruction Manual... - Page 8 www.revelspeakers.com © 2012 HARMAN International Industries, Incorporated All rights reserved. Revel and the Revel logo are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change without notice. For questions, assistance or additional information concerning any of our products, call us at: (516) 594-0300 or (888) 691-4171.
