- Page 1 ® PERFORM ™ HEAR LISTEN REVEL B15a...
- Page 2 Owning Revel ® loudspeakers is a pleasurable experience for both the ears and eyes. Learning about ® the finer details of their design and construction will deepen your appreciation of their lasting value.
- Page 3 Revel’s tests are based on extensive real world listening in more than five different environments that simulate a wide range of residential settings and room sizes.
- Page 4 ANECHOIC CHAMBERS While few loudspeaker companies have access to one, Revel has three different anechoic (echo-free) chambers. Unlike most other compa- nies, Revel does not depend on electronic anechoic “simulator” testing methods that often fail to reveal critical performance flaws such as reso- nances.
- Page 5 Revel loudspeakers. Revel engineers use Computer Aided Design (CAD) software to design transducers that are optimized for each Revel model. A powerful Finite Element Analysis (FEA) system provides a comprehensive computer simulation of the entire driver assembly, allowing engineers to optimize every aspect of a transducer assembly.
- Page 6 This careful attention to detail allows Revel to achieve unparal- leled consistency among all loudspeakers, alleviating the need for matched pairs. Instead, all Revel loudspeakers are matched within a frac- tion of a decibel to achieve superior soundstage imaging and accuracy.
- Page 7 The result is distinctly more transpar- ent and distortion-free sound reproduction. With the premiere of the Ultima Series, Revel earned a reputa- tion for producing “the world’s finest loudspeakers.” Since then, Revel loudspeakers have won accolades from discerning audiophiles and critical reviewers alike.
- Page 8 Shown in Natural Cherry finish...

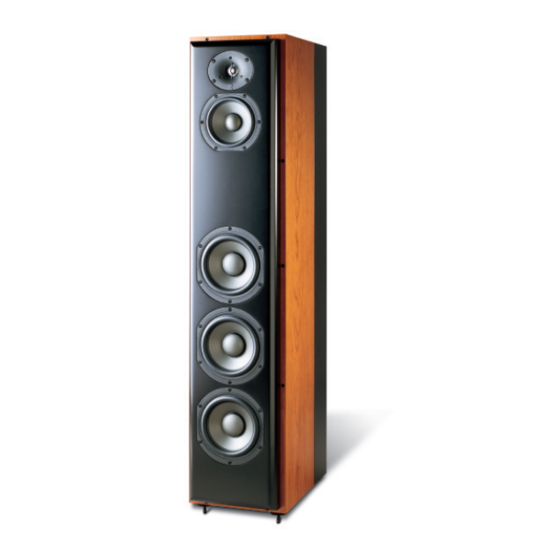

- Page 9 PERFORM ™ A five-driver, three-way design, the Performa F52 includes a trio of high performance 6 ⁄ -inch woofers that incorporate our exclusive Organic Ceramic Composite cone technology, which provides the ultimate combination of rigidity and lightness. Featuring butyl surrounds and high strength magnetic motor structures, togeth- er these woofers provide the deep bass response commonly associat-...
- Page 10 Shown in Natural Cherry Finish...
- Page 11 PERFORM ™ The F32 combines large floor-standing loudspeaker per- formance in an elegant slim cabinet design with a small “footprint” for maximum placement versatility and high visual appeal. It features four magnetically-shielded propri- etary drivers that offer a host of improvements in vital areas such as dynamics, distortion, and dynamic compression along with improved...
- Page 12 Shown in Maple Finish on optional pedestals...
- Page 13 Featuring a high power han- dling, magnetically-shielded 6 ⁄ -inch cast-frame woofer incorporating Revel’s exclusive Organic Ceramic Composite Cone technology along with a substantial 2-inch diameter flat-wire edge-wound voice coil, the M22 woofer also includes a propri- etary Dual Neodymium magnetic...
- Page 14 Shown in Maple Finish on optional pedestal...
- Page 15 ™ As the most important reproducer in a multi-channel sur- round sound system, the center channel speaker must deliver vocals and dialog with the utmost clarity along with music and special effects, and must also match the tonality of the main left and right front speakers.
- Page 16 Shown in Black Ash Finish on optional pedestal...
- Page 17 As with all Revel speaker systems, each C32 is individually tuned to match the production reference standard to within a fraction of a decibel,...
- Page 18 Shown in Black Finish...
- Page 19 — to inte- grate easily with dark or light col- ored room décor. The versatile S30 surround speaker can be integrated with select A/V processors or control systems to enable automatic dis- persion switching, customized to the user's preferences for various program sources.
- Page 20 B15a Shown in Natural Cherry Finish...
- Page 21 PERFORM ™ Power. Authority. Control. The Performa B15a subwoofer fea- tures unique Revel advantages that no other subwoofer provides, for authoritative low frequency repro- duction. Featuring a massive long- excursion, 15-inch driver that is equipped with an inverted metal dome that delivers incredible acoustic output at the very lowest deep bass registers, the B15a’s...
-
Page 22: Specifications
Conservatively rated specifications indicate moder- ate sensitivity and denote that Revel loudspeakers do not require huge amplifiers to achieve realistic levels in all but the largest rooms. 4 pi anechoic represents testing done in a true anechoic (echo or reflection-free) listening environment. - Page 23 PERFORMA F 52 Sensitivity: Impedance: Filters (crossover): Frequency responses: Dimensions: Weight: 87.5 dB SPL, with 2.83 V rms @ 1 m (4 pi anechoic) 6.5 Ω (nominal), 3.5 Ω (minimum @ 373 Hz) 3-way, high-order, acoustic response @ 200 Hz and 2.3 kHz In-room response;...
- Page 24 PERFORMA F 32 Sensitivity: Impedance: Filters (crossover): Frequency responses: Dimensions: Weight: 86 dB SPL, with 2.83 V rms @ 1 m (4 pi anechoic) 6.5 Ω (nominal), 3.7 Ω (minimum @ 260 Hz) 3-way, high-order @ 190 Hz and 2.7 kHz In-room response;...
- Page 25 PERFORMA M 22 Sensitivity: Impedance: Filters (crossover): Frequency responses: Dimensions: Weight: 85 dB SPL, with 2.83 V rms @ 1 m (4 pi anechoic) 6.4 Ω (nominal), 4.8 Ω (minimum @ 160 Hz) 2-way, high-order, @ 2.2 kHz In-room response; ±1.0 dB from 52 Hz to 16 kHz In-room response relative to target response;...
- Page 26 PERFORMA C 52 Sensitivity: Impedance: Filters (crossover): Frequency responses: Dimensions: Weight: *Refer to user guide for details on spikes 90 dB SPL, with 2.83 V rms @ 1 m (4 pi anechoic) 6 Ω (nominal), 3.1 Ω (minimum) @ 292 Hz 3-way, high-order acoustic response @ 235 Hz and 2 kHz In-room response;...
- Page 27 PERFORMA C 32 Sensitivity: Impedance: Filters (crossover): Frequency responses: Dimensions: Weight: *Refer to user guide for details on spikes 86.5 dB SPL, with 2.83 V rms @ 1 m (4 pi anechoic) 5.8 Ω (nominal), 3.3 Ω (minimum) @ 80 Hz 3-way, high-order @ 300 Hz and 2.7 kHz In-room response;...
- Page 28 Sensitivity: Impedance: Filters (crossover): Frequency responses: Dimensions: Weight: Revel I30 & I20 in-wall speakers also available for surround speaker applications. For more information, please visit www.revelspeakers.com/iseries 90 dB SPL, with 2.83 V rms @ 1 m (2 pi anechoic) Monopole mode;...
- Page 29 PERFORMA B 15a SUBWOOFER Low frequency extension: Frequency response: True linear volume displacement: Dimensions: Weight: AMPLIFIER Output power: Equalization: Low-pass filter: High-pass filter: Inputs: Outputs: Power: –3 dB @ 18 Hz (up to full-rated power) 20 Hz to f c ±0.5 dB, –3 dB @ 18 Hz 275 in width: ⁄...
- Page 30 OUR PARTNERS We devote a great deal of time and attention to selecting the best peo- ple to represent our company and products. The people we choose as dealers, distributors, and represen- tatives share our passion for music and video. They are committed to providing their customers with sound, accurate advice about audio and home theater components.
- Page 31 B15a The Revel experience is special. Beyond the enjoyment of one of the world’s most highly prized loudspeakers, it is about the appreciation of fine detail and high technology. The Performa series offers the performance and beauty of the world’s finest loudspeakers.
- Page 32 Harman International Industries, Incorporated. Ferrofluid ® is a registered trademark of Ferrotec (USA) Corporation. Revel is not responsible for typographic errors. Other company and product names may be trademarks of the respective companies with which they are associated. Revel ®...
