REVELL Performa M22 Install Manual

3 Oak Park Drive, Bedford, MA USA 01730-0413 | Tel: 781-280-0300 | Fax: 781-280-0490 | www.revelspeakers.com | 12/03 | Part No. 352290-001
Step 1: Locate the parts bag (packed with the stand) that
contains spikes, screws, lock nuts, Allen wrench and
hole plugs. Set all parts aside.

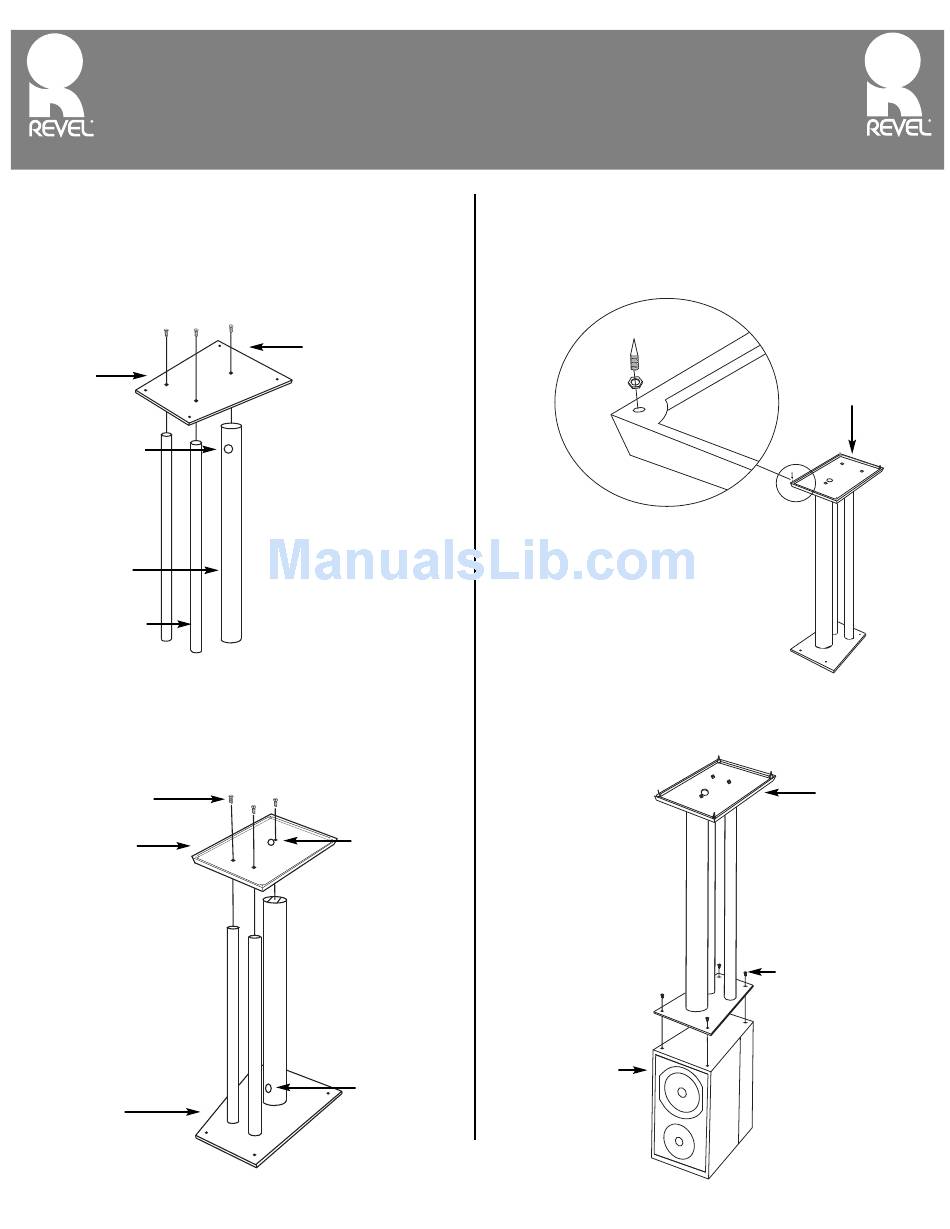

Step 2: Begin the stand assembly by fastening the three tubes
to the top plate with three enclosed 6mm x 18mm
Phillips flat head screws. Start all screws by hand before
tightening with a screwdriver.
Top Plate
(Rear)
Wire Access Hole
(1) Large Tube
(2) Smaller Tubes
Step 3: Place the stand upside-down and install the
bottom base with three 8mm x 20mm hex cap screws
using the Allen wrench (included).
(3) 8mm x 20mm hex
cap screws
Bottom Base
The large tube and bottom
base feature wire access
holes through which speak-
er wires can be threaded and
concealed from view. Thread
the end of the speaker wire
into the pedestal through
the top hole at the rear of
the large tube and back out
through the hole at the
bottom base.
Top Plate
(Rear)
Performa Pedestal 22

Assembly Instructions

(3) 6mm x 18mm
flat head screws
There are different size
threads on each end of the
tube(s). Make sure that the
end attached to the top
plate properly fits the
6mm x 18mm screws before
attempting to tighten. It is
not possible to attach the
wrong end to the top plate,
as the threads at the bottom
end will not fit the
6mm x 18mm screws.
Bottom Wire
Access Hole
If wires are not thread-
ed through the tube,
use the plugs to seal
the wire access holes.
(Front)
Top Wire Access
Hole
Step 4: With the stand upside-down as shown below, install the
spikes (from Step 1) to the bottom of the base. Thread spikes
about halfway and then use a wrench or pliers to tighten
the locking nuts. Tighten all screws again after stand is fully
assembled. Turn stand upright and adjust spikes if required.
Spike
Lock Nut
Step 5: Place the Revel Performa M22 loudspeaker as shown onto
a carpeted surface or a soft towel. Attach the assembled stand
with four 8-32 x 3/4 Phillips flat head screws.
M22 Loudspeaker
Bottom Base
Revel Performa
Pedestal 22
(Assembled)
(4) 8-32 x 3/4" flat
head screws
(Start All Screws By Hand
Before Tightening With
Screwdriver)
