Extreme Climate Series
Outdoor Monitors
M55XC and M80XC
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M55XC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REVELL M55XC

Summary of Contents for REVELL M55XC

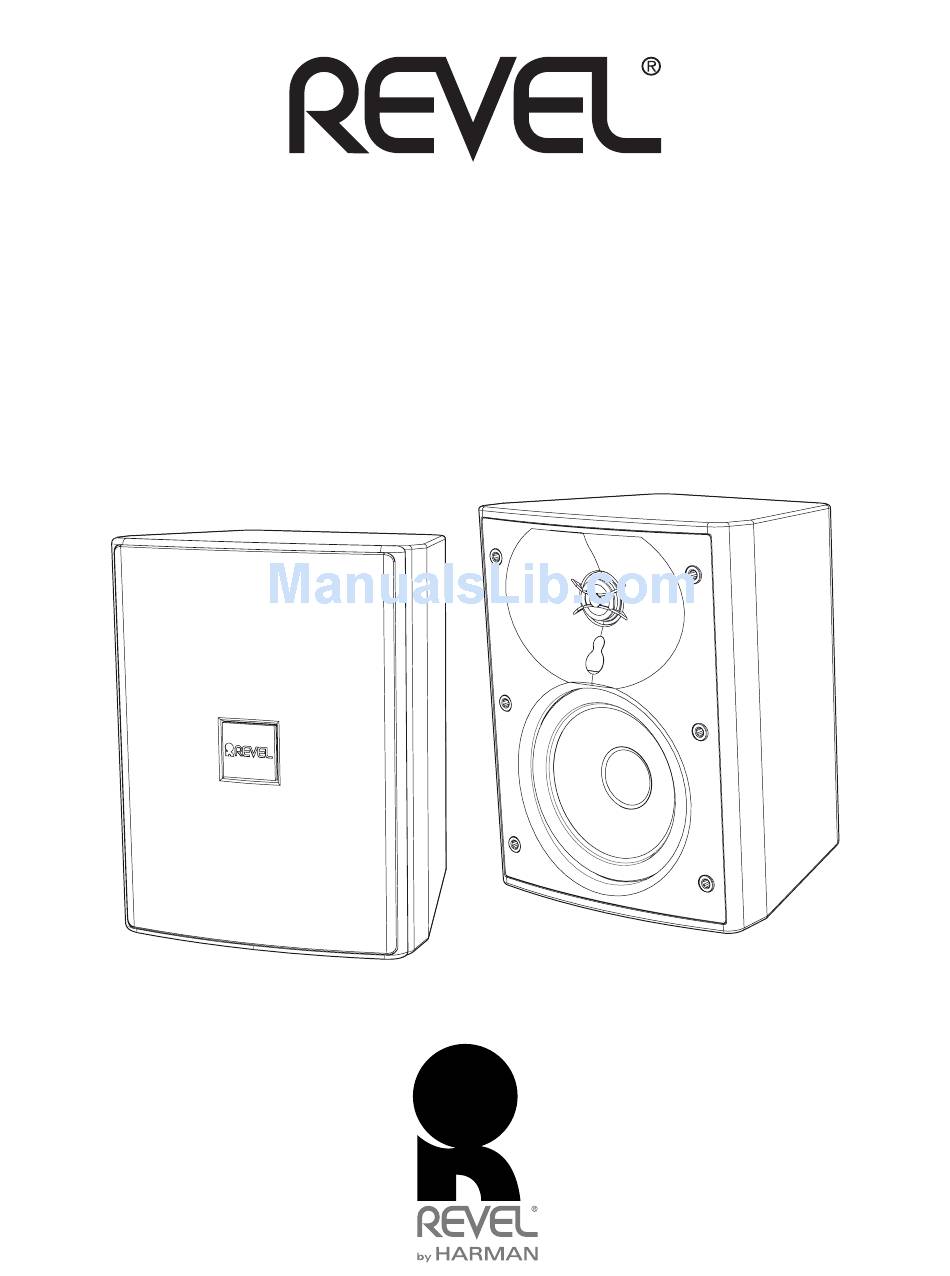

  • Page 1 Extreme Climate Series Outdoor Monitors M55XC and M80XC Owner’s Manual...

  • Page 2: Table Of Contents

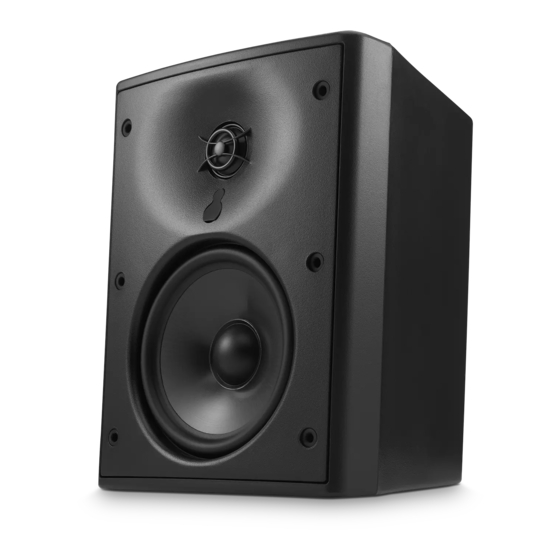

    • 1-inch / 25mm Aluminum tweeter with advanced Acoustic Lens waveguide • 5.25-inch / 130mm Carbon-infused Polypropylene cone woofer (M55XC) • 8-inch / 200mm Aluminum cone woofer (M80XC) • 70V/100V 60W variable tap with low-impedance 8-ohm bypass • Patented InvisiBall mounting system ™...

  • Page 3: The Lnvisiball ™ Mounting System

    INVISIBALL MOUNTING SYSTEM 3. Remove the grille from the speaker enclosure to access the rubber plug located in the center between the tweeter and woofer. Pull up The InvisiBall is a unique method of mounting a loudspeaker. The ™ on the rubber plug to expose access for the Allen wrench to loosen InvisiBall is designed to be unobtrusive, offer theft deterrence, ™...

  • Page 4: Input Terminal Protection Cover Installation

    INPUT TERMINAL PROTECTION Step 4 – Remove the protective paper over the adhesive gasket surrounding the underside of the cover. Attach the cover through the COVER INSTALLATION existing screw holes, using the longer screws provided with the cover. Step 1 – Remove the four (4) screws in the corners of the input terminal It might be necessary, depending on the stiffness of the cable, to slide cup.

  • Page 5: Connections To The Amplifier

    2). (See “amplifier impedance load” below.) Distributed Line Systems - The Revel M55XC & M80XC models come equipped with built-in 70V/100V 60W variable tap transformers. Utilizing these connections requires the use of a compatible 70V/100V-...

  • Page 6: Painting The Speakers

    PAINTING THE SPEAKERS CARE AND MAINTENANCE The ABS speaker enclosures of the M55XC and M80XC can be painted Revel XC Series Outdoor Monitors have been designed and to match almost any decor. manufactured for durability and reliable service. As with any fine product, proper maintenance and care will extend the life of the system.

  • Page 7: Limited Warranty

    LIMITED WARRANTY Revel loudspeakers are warranted against defects. The duration of a warranty depends on the laws in the country in which it was purchased. Your local Revel retailer can help you determine the duration and coverage of your warranty. For more information please visit: REVELSPEAKERS.COM Please visit REVELSPEAKERS.COM for additional language support on the user manual.
  • Page 8 Торговая марка: Revel Назначение товара: Пассивная акустическая система Изготовитель: Харман Интернешнл Индастриз Инкорпорейтед, США, 06901 Коннектикут, г.Стэмфорд, Атлантик Стрит 400, офис 1500 Страна происхождения: Китай Импортер в Россию: ООО Внешторг-Юг, Россия, 171640, Тверская область, г.Кашин, ул. Карла Маркса, д.57A Гарантийный период: 1 год...
