- Page 1 Z5455/Z5459 Rigging manual 1.1 en...
- Page 2 General information Z5455/Z5459 Rigging manual Version: 1.1 en, 03/2021, D2746.EN .01 Copyright © 2021 by d&b audiotechnik GmbH & Co. KG; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference.
-
Page 3: Table Of Contents
3.3 Hoisting and securing the array..........15 3.4 Derigging.................. 15 Care and maintenance............ 16 4.1 Transport/storing..............16 4.2 Visual and functional inspection..........16 Manufacturer's declaration........... 17 5.1 EU conformity (CE symbol)............17 5.2 Disposal..................17 d&b Z5455/Z5459 Rigging manual 1.1 en... -
Page 4: Al Flying Frame / Ali Mounting Frame

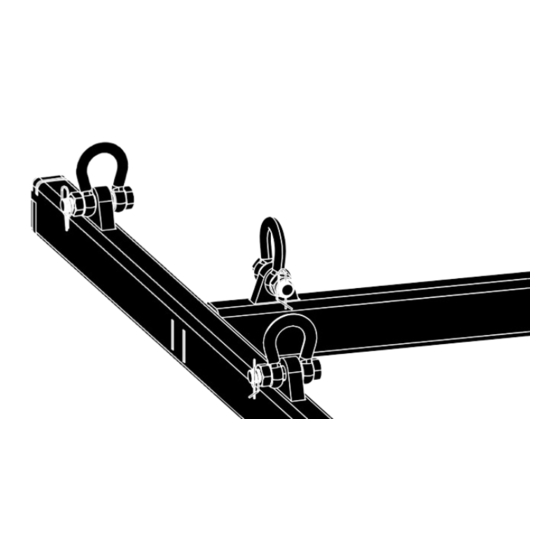

ALi Mounting frame [1] Including: Locking pin 5 x 35 mm [2] 1t shackle [3] D2746.EN .01 Z5455 Rigging manual Weight (incl. all items) 7.8 kg / 17.2 lb Z5459 ALi Mounting frame dimensions in mm [inch] d&b Z5455/Z5459 Rigging manual 1.1 en... -
Page 5: Intended Use
AL Flying frame / ALi Mounting frame 1.2 Intended use The Z5455 AL Flying frame / Z5459 ALi Mounting frame must only be used in conjunction with the d&b A-Series AL60/AL90 and ALi60/ALi90 cabinets, as described in this manual. A-Series vertical arrays and ArrayCalc... -
Page 6: Series Rigging Components
[F] for suspension using the enclosed 1 t shackles. The front tie bar of the mounting frame is equipped with two safety points [S] for the attachment of a secondary safety device using the enclosed 1 t shackles. d&b Z5455/Z5459 Rigging manual 1.1 en... -
Page 7: Z5453 Al Hoist Connector Chain
[3] are properly fitted to the frame's safety points [S] as shown in the graphic opposite. 2. Attach the safety chain and ensure the chains are not twisted and the hooks [H] are in the right direction as shown in the graphic opposite. d&b Z5455/Z5459 Rigging manual 1.1 en... -
Page 8: Z5454 Al Safety Chain
3. Insert the Locking pin through the respective link or socket until it is fixed in place. 4. Release the button to lock the pin ( [l]). 5. Recheck the Locking pin is securely locked by briefly pulling the Locking pin towards you. d&b Z5455/Z5459 Rigging manual 1.1 en... -
Page 9: Ring Cotter
3. Refit and lock Refit the ring cotter by pushing the straight wire shaft through the hole and pressing the front wire loop underneath the straight wire shaft. d&b Z5455/Z5459 Rigging manual 1.1 en... -
Page 10: Cabinet Rigging Mechanism
1. Release the Locking pin and fold out the Splay link. 2. To park the Splay link, proceed in reverse order and ensure the extension tube is fully pushed in and the head is aligned correspondingly, as shown in the graphic opposite. d&b Z5455/Z5459 Rigging manual 1.1 en... -
Page 11: Setting The Splay Angle(S)
1. Fold out the Splay link as previously described. 2. Pull out the extension tube to its stop position. 3. Turn the extension tube head counter clockwise by 90° to fix the extended length of the Splay link. d&b Z5455/Z5459 Rigging manual 1.1 en... - Page 12 A-Series rigging components Overview chart - Splay angle settings* *Shown with: Z5455 AL Flying frame. Same applies to the Z5459 ALi Mounting frame d&b Z5455/Z5459 Rigging manual 1.1 en...
-
Page 13: Rigging/Derigging
2. At the rear, release the Locking pin of the Splay link. 3. Fold out the Splay link. 4. Pull out the link to the "Extended" length and turn the extension tube head counter clockwise by 90°. d&b Z5455/Z5459 Rigging manual 1.1 en... - Page 14 2. With one person on each side, attach the prepared cabinet at an angle of approx. 90° to the corresponding slots at the front of the upper cabinet, as shown in the graphic opposite. 3. Slightly lower the cabinet until the Front links are engaged. d&b Z5455/Z5459 Rigging manual 1.1 en...
-
Page 15: Hoisting And Securing The Array
(please also refer to Þ Chapter 2.3 "Secondary safety" on page 7). 3.4 Derigging The same safety instructions apply. To dismantle any of the assemblies, follow the corresponding rigging and setup instructions in reverse order. d&b Z5455/Z5459 Rigging manual 1.1 en... -
Page 16: Care And Maintenance
▪ Regularly lubricate the Locking pins using WD-40 ® or a similar product. Z5455 AL Flying frame Z5459 ALi Mounting frame Visual inspection regarding deformation and damage (e.g. cracks and corrosion) including all drilled holes of the component. d&b Z5455/Z5459 Rigging manual 1.1 en... -
Page 17: Manufacturer's Declaration
When out of use the rigging components must be disposed of in accordance with the national environmental regulations. Ensure that damaged rigging components are disposed of in a way that they cannot be used again. d&b Z5455/Z5459 Rigging manual 1.1 en... - Page 18 www.dbaudio.com...
