Z
Z5404/05/06
Mounting instructions 1.1 en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z Series and is the answer not in the manual?

Questions and answers

Related Manuals for d&b audiotechnik Z Series

Summary of Contents for d&b audiotechnik Z Series

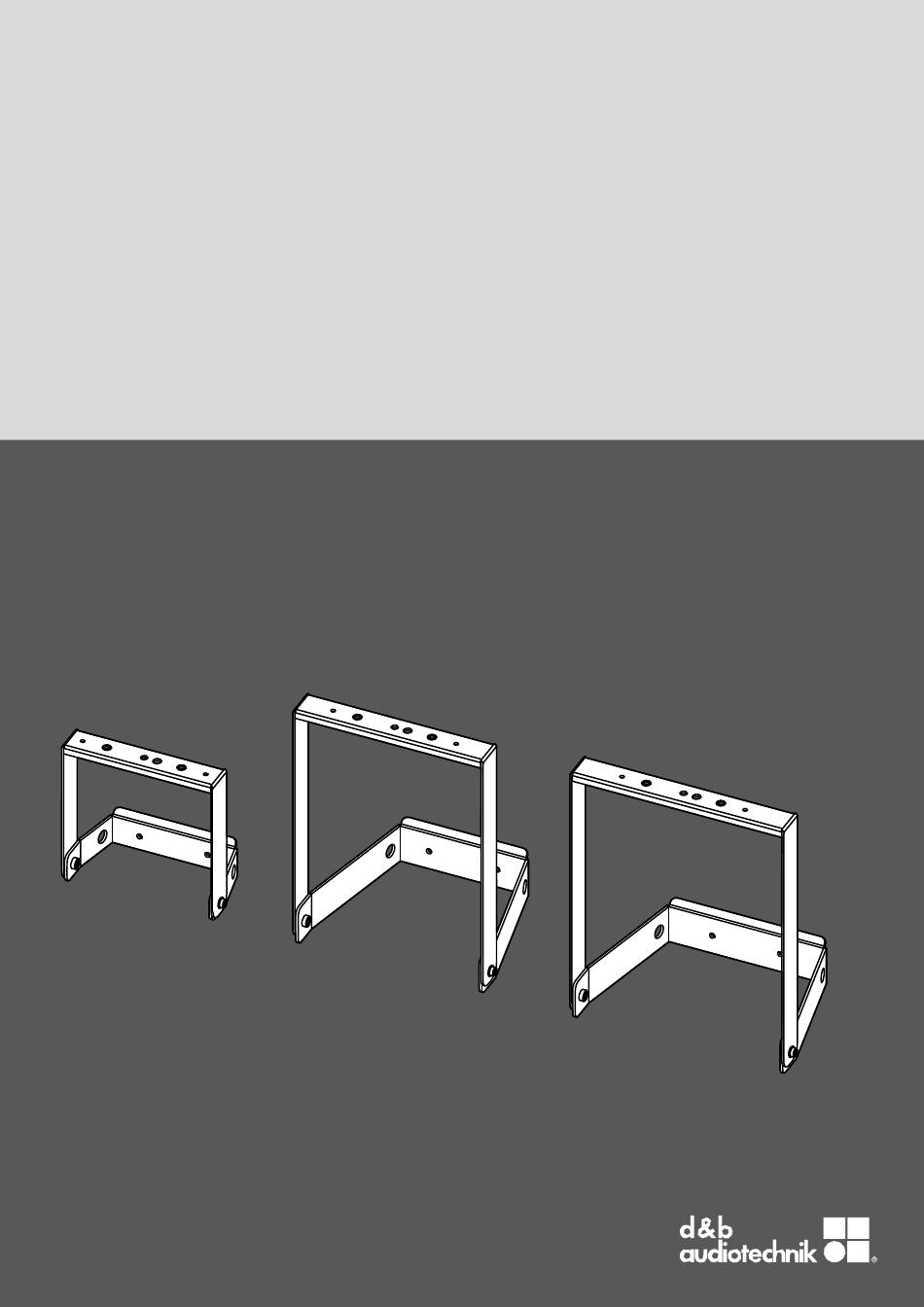

  • Page 1 Z5404/05/06 Mounting instructions 1.1 en...
  • Page 2 General information Z5404/05/06 Mounting instructions Version: 1.1 en, 02/2013, D2958.EN .01 Copyright © 2013 by d&b audiotechnik GmbH; all rights reserved. Keep these mountings instructions with the product or in a safe place so that they are available for future reference.

  • Page 3: Table Of Contents

    Contents Z5404/05/06 Flying bracket 8S/10S/12S....4 1.1. Scope of supply................. 4 1.2. Safety precautions..............4 1.3. Intended use................5 1.4. Mounting options and angle settings........5 1.5. Assembly..................5 Fixing templates..............7 Built-in dimensions............10 Declarations............... 12 4.1. Manufacturer's declaration............. 12 4.2.

  • Page 4: Z5404/05/06 Flying Bracket 8S/10S/12S

    1. Z5404/05/06 Flying bracket 8S/10S/12S 1.1. Scope of supply Please verify the shipment for completeness and proper condition of the items. Qty. d&b Code Description Z5404 d&b Flying bracket 8S [1a] Z5405 d&b Flying bracket 10S [1b] Z5406 d&b Flying bracket 12S [1c] Each including: Pan head screw (Torx #T45) M8 x 20 [2] Spring washer [3]...

  • Page 5: Intended Use

    1.3. Intended use The d&b Z5404/05/06 Flying bracket 8S/10S/12S must only be used in conjunction with the d&b xS-Series loudspeakers 8S, 10S/ 10S-D and 12S/12S-D as described in these mounting instructions. The bracket can be: ▪ directly mounted to ceilings. ▪...
  • Page 6 Attaching the bracket to the cabinet NOTICE! ▪ Only use the supplied and specified screws [2], otherwise there a risk of damaging the threaded inserts. ▪ Always use the spring washers [3] to prevent the bolts from slackening. Tools required: ▪...

  • Page 7: Fixing Templates

    2. Fixing templates Fig. 4: Z5404 Flying bracket 8S, Fixing template d&b Z5404/05/06 Mounting instructions 1.1 en...
  • Page 8 Fig. 5: Z5405 Flying bracket 10S, Fixing template d&b Z5404/05/06 Mounting instructions 1.1 en...
  • Page 9 Fig. 6: Z5406 Flying bracket 12S, Fixing template d&b Z5404/05/06 Mounting instructions 1.1 en...

  • Page 10: Built-In Dimensions

    3. Built-in dimensions Fig. 7: Z5404/05/06 Flying bracket 8S/10S/12S, dimensions in mm [inch] Fig. 8: Z5404 Flying bracket 8S, Mounting options and built-in dimensions in mm [inch] Fig. 9: Z5405 Flying bracket 10S, Mounting options and built-in dimensions in mm [inch] d&b Z5404/05/06 Mounting instructions 1.1 en...
  • Page 11 Fig. 10: Z5406 Flying bracket 12S, Mounting options and built-in dimensions in mm [inch] Fig. 11: Built-in dimensions Z5010/Z5012 Assembly d&b Z5404/05/06 Mounting instructions 1.1 en...

  • Page 12: Declarations

    4. Declarations 4.1. Manufacturer's declaration This declaration covers: ▪ d&b Z5404 Flying bracket 8S. ▪ d&b Z5405 Flying bracket 10S. ▪ d&b Z5406 Flying bracket 12S. National standards and technical specifications applied: DIN 18 800, DIN 1055, DGUV Vorschrift 17, BGI 810-3. Backnang, 2011-03-25 Frank Bothe, Head of R&D...
  • Page 14 www.dbaudio.com...

This manual is also suitable for:

Z5404 flying bracket 8sZ5405 flying bracket 10sZ5406 flying bracket 12s
