Elegoo Saturn 3 Ultra User Manual

Hide thumbs

Advertisement

Table of Contents

Saturn 3 Ultra
3D Printer
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Saturn 3 Ultra and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elegoo Saturn 3 Ultra

Summary of Contents for Elegoo Saturn 3 Ultra

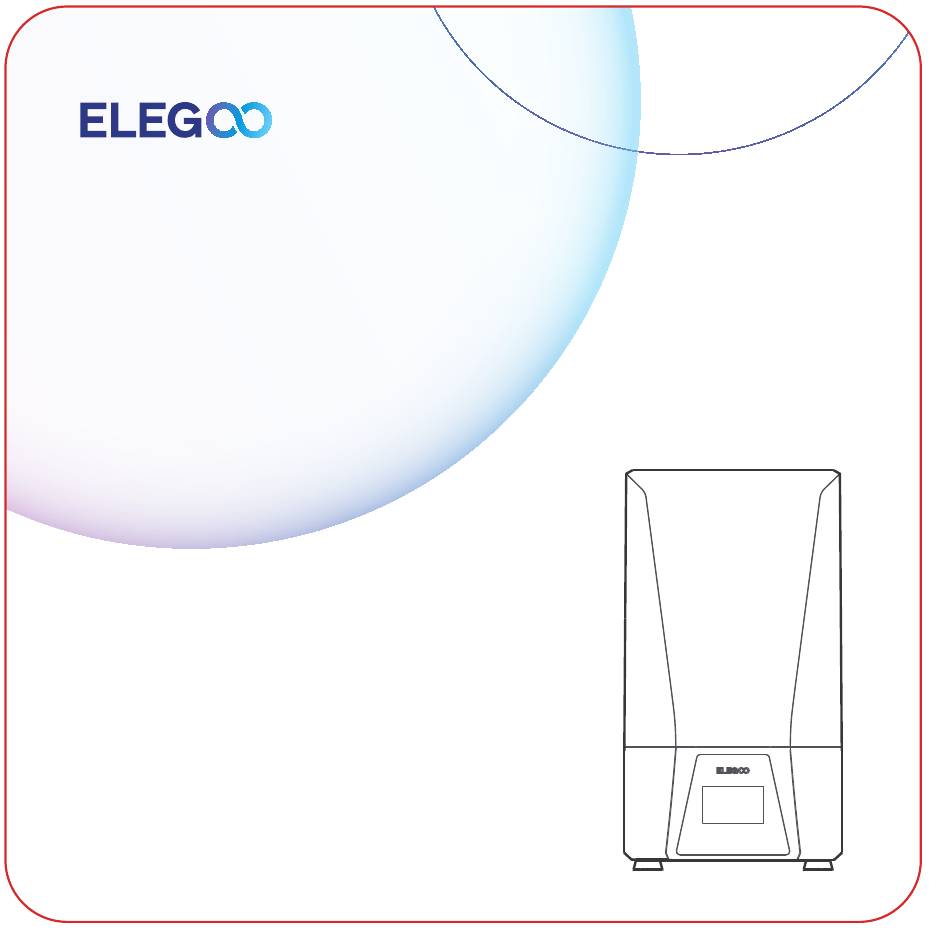

  • Page 1 Saturn 3 Ultra 3D Printer User Manual...
  • Page 2 After receiving the product, please confirm whether the equipment is intact and the accessories are complete. If there is any damage or missing, please timely contact us at 3dp@elegoo.com. (To ensure the performance of each product, each product will undergo strict printing tests before leaving the factory.
  • Page 3 If the release film in the resin tank is whitened, scratched, or has no elasticity, the printing failure rate is high, please replace the release film in time. If you have any problems with the printer, please contact us at 3dp@elegoo.com. Please do not disassemble or modify ELEGOO 3D printers by yourself, otherwise, the warranty will expire.

  • Page 4: Packing List

    Packing List Wifi Antenna USB Air Purifier Build Platform Resin Tank U Disk Mask Saturn 3 Ultra 3D Printer Gloves Funnel Backup Screws User Manual Adapter Tool Kit Scraper...

  • Page 5: Printer Introduction

    Printer Introduction Z Axis Screw Knob Build Plate LCD Display Screen Resin Tank Touch Screen Switch DC Socket USB Interface Wifi Antenna Screw Knob USB Air Purifier...
  • Page 6 Printer Introduction Anti-UV Cover Extension Port...
  • Page 7 3D Printer Tech Specs System: EL3D-4.0 Operation: 4.0-inch Capacitive Touch Screen Printing Parameter Slicer Software: Chitu Box & Voxeldance Tango Connectivity: USB Interface & WiFi Technology: MSLA Stereolithography Light Source: COB+Refractive Light Source (wavelength 405nm) XY Resolution: 19*24um (11520*5120) Printing Specification Z-axis Accuracy: 0.01mm Layer Thickness: 0.01-0.2mm Printing Speed: MAX 150mm/H...

  • Page 8: Main Interface

    Operation Screen Introduction Main Interface Print List Tool List System List...

  • Page 9: Print List

    Operation Screen Introduction Print List USB Files History Record Back to the U disk file list U disk status icon Click to enter preview, Print status History main menu and long press to enter print time edit mode. USB Files Model Preview Click to enter Copy the...

  • Page 10: Tool List

    Operation Screen Introduction Tool List Tool Manual Back Click to stop the Select the distance Z-axis returns Z-axis Z-axis Z-axis Z-axis immediately of each movement to zero moves up moves down stops of the Z-axis Set Z=0 Resin Tank Cleaning Confirm to reset zero Cancel reset zero Reduce...
  • Page 11 Operation Screen Introduction Tool List Screen Exposure Set exposure time Select exposure type...

  • Page 12: System List

    Operation Screen Introduction System List System Language Back Click to select a language System Settings System Settings Machine version Machine Machine sound Format U Printer error After-sales name information IP address switch option disk or local file message log information...
  • Page 13 Operation Screen Introduction System List WIFI Version Upgrade Click to select Click to refresh WiFi status icon Click to enter the Network upgrade one of the WIFIs the WiFi list firmware upgrade list is not available yet...
  • Page 14 Leveling 1. Remove the resin tank, lock the screw knob ) of the build plate, and then loosen the 4 fixing screws ( ) of the build plate until the build plate can move freely. (See Picture 1) (Picture 1) leveling card (Picture2) (Picture 3)
  • Page 15 Leveling Pull the leveling card. If you find there is a slight resistance during this process, you can go directly to step 5. (Note: If there is no resistance when pulling out the leveling card, please click the Z-axis "down" button (in steps of 0.1mm) until there is a slight resistance to pull the leveling card.
  • Page 16 6.Take away the leveling card, and click the "Tool" - "Exposure" - "Text" buttons to test the LCD screen and LED light source. If the LCD can display "ELEGOO TECHNOLOGY www.elegoo.com", then the 3D printer works perfectly. At this time, the leveling is completed, install the resin tank and ready for printing.

  • Page 17: Test Printing

    After the printing is completed, wait until the resin on the build plate stops dripping, then loosen the screw knob of the build plate to remove it, and remove the model with a scraper. You can use ELEGOO's cleaning and curing machine to post-process the model. (See Picture 9)

  • Page 18: Software Installation And Setup

    3) Long press the right mouse button to view the different perspectives of the model. 3. Chitu Box Setting 3.1 Machine Configuration Parameters Click "Parameter Settings" and select ELEGOO Saturn 3 Ultra as your default printer. (See Picture 10) (Picture 11) (Picture 10) 3.2 Build Volume...
  • Page 19 Software Installation and Setup 3.3 Resin Parameter (See Picture 12) Resin Density: 1.1g/ml Resin Cost: You can input the real price of the resin you purchased, and the slicing software can calculate the resin costs for each model you print. (Picture 12) 3.4 Parameters (See Picture 12) Layer Height:...
  • Page 20 Software Installation and Setup Transition Layers: The number of transition layers after the bottom layers for a tighter bonding between layers. Except for the exposure time, other parameters of the transition layer are the same as the normal layer. Transition Type: Set the transition type of exposure time when transitioning from bottom layers to normal layers, the default is linear transition.
  • Page 21 Software Installation and Setup 4. Save the Model After setting up all the parameters, click "Slice", and once it's done, click "Save" to export the sliced file and copy it to U Disk; then insert the U disk into your printer, and start printing. (See Picture 13) (Picture 13)
  • Page 22 WiFi Module Instructions 1. First, make sure the WiFi antenna is connected. Connect the WiFi antenna by screwing it clockwise to the right port of the machine to connect to the network. (See Picture 14) (Picture Once the WiFi antenna is installed, click "Settings" - "WiFi" to enable WiFi connection, the machine will automatically search for available networks.
  • Page 23 WiFi Module Instructions 2. Then make sure that the computer with the slicing software installed is connected to the same WiFi as the printer. After the model is sliced, click the "Network Sending"and the software will automatically search for the printer, select the printer by the printer name and IP address, click "Send"...

  • Page 24: Machine Maintenance

    Machine Maintenance Please do not use sharp or pointy tools to scrape the resin tank to avoid damaging the release liner film. Please clean up the resin tank before changing the resin to another color. Before and after printing, clean the build plate with paper towels or alcohol to ensure that there are no bumps or burrs on the build plate.

  • Page 25: Warranty Statement

    Warranty Statement 1. From the date of purchase, ELEGOO printer is entitled to a 1-year free warranty service, except for consumables of the LCD screen and the release film. 2. The LCD screen enjoys a 6-month free warranty service. 3. The free warranty does NOT include problems caused by self-disassembly and improper use,...
  • Page 26 Email Support Discussion Forums Help Articles...
