Elegoo Mercury 3.0 Plus User Manual

Washing and curing machine
Hide thumbs Also See for Mercury 3.0 Plus:

Advertisement

Quick Links

Download this manual
●Mercury 3.0 Plus
Washing And
Curing Machine
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mercury 3.0 Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elegoo Mercury 3.0 Plus

Summary of Contents for Elegoo Mercury 3.0 Plus

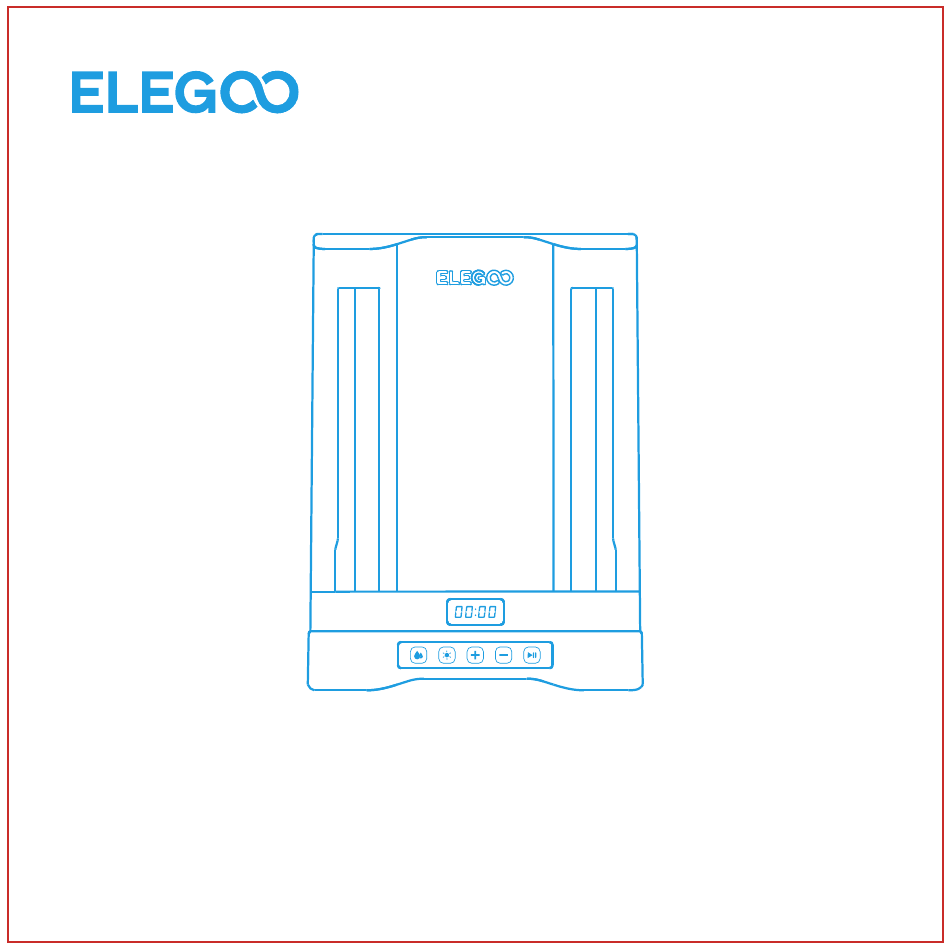

  • Page 1 ●Mercury 3.0 Plus Washing And Curing Machine User Manual...
  • Page 2 After receiving the product, please confirm whether the equipment is intact and the accessories are complete. If there is any damage or missing, please timely contact us at 3dp@elegoo.com. (To ensure the performance of each product, each product will undergo strict tests before leaving the factory. There may be some slight...
  • Page 3 ●If you have any problems with the machine, please contact us at 3dp@elegoo.com. Please do not disassemble or modify the Mercury 3.0 Plus Washing And Curing Machine by yourself, otherwise, the warranty will expire.

  • Page 4: Table Of Contents

    Contents Packing List Machine Introduction Machine Tech Specs Product Overview Washing Mode Operation Steps Curing Mode Operation Steps Routine Maintenance...

  • Page 5: Packing List

    Packing List Cleaning Bucket Curing Turntable Mercury 3.0 Plus Cleaning Basket Adjustable Bracket *2 Washing And Curing Machine User Manual Tools Power Adapter...

  • Page 6: Machine Introduction

    Machine Introduction Anti-UV Cover UV Lamp Column Display Screen Control Panel Sensor DC Socket Expansion Port Switch...

  • Page 7: Machine Specification

    Machine Tech Specs Machine Parameter Machine Specification ●Control Method: Touch Button ●Dimension: 302.5mm(L)*302.5mm(W)*412.5mm(H) ●Power Requirements: 100-240V 50/60Hz 24V 2.5A ●Package Size: 358mm(L)*358mm(W)*470mm(H) ●Gross Weight: 6.2KG ●Net Weight: 4.7KG Washing and Curing Specification ●Maximum Washing Volume: 214mm (L)*135mm (W)*180mm (H) (with build plate) 230mm (L)*135mm (W)*260mm (H) (without build plate) ●Maximum Curing Size: ∅250mm*290mm(H) ●Time Setting: 0-30 minutes...

  • Page 8: Product Overview

    Product Overview Time Display Display the washing/curing time Time setting range: 0-30 minutes TIME- Each tap decreases the time by 30 seconds. Long press the button to continuously decrease the time until it is 0 seconds. WASH CURE TIME+ ON/OFF Each tap increases the time by 30 seconds.Long press the button to continuously get the...

  • Page 9: Washing Mode Operation Steps

    Washing Mode Operation Steps The Mercury 3.0 Plus Washing And Curing Machine has “Washing Mode” and “Curing Mode.” Please connect the power and turn on the power switch before use. 1. Washing Mode Switch the machine to washing mode by touching “...
  • Page 10 Washing Mode Operation Steps Placing models: With build plate and without build plate 1.3.1 Placing models with a build plate: Put the cleaning basket into the cleaning bucket (place the adjustable brackets in the corresponding protrusions on the side of the cleaning basket in advance). Place the model (size smaller than or equal to 214mm(L)*135mm(W)*180mm(H)) on the adjustable brackets together with the build plate.
  • Page 11 Washing Mode Operation Steps 1.3.2 Placing models without a build plate: Put the cleaning basket into the cleaning bucket (remove the adjustable brackets from the cleaning basket). Remove the model from the build plate (model size smaller than or equal to 230mm(L)*135mm(W)*260mm(H)) and place it in the cleaning basket.

  • Page 12: Curing Mode Operation Steps

    Curing Mode Operation Steps 2. Curing Mode Switch the machine to curing mode by touching the “ ” on the panel. Remove the protective film from the reflective mirrors( ) on both sides of the platform. Place the turntable on the central positioning groove of the machine (remove the cleaning bucket in advance). (See Picture 4) (Picture 4) Place the model in the center of the turntable.

  • Page 13: Routine Maintenance

    Routine Maintenance 1. Recycling the Cleaning Solution When the cleaning solution in the bucket becomes difficult to clean the models after multiple uses, you need to filter the cleaning solution and clean the cleaning bucket. Let the cleaning solution settle for about 10 hours to allow the solid particles to sink to the bottom of the bucket.
  • Page 14 Routine Maintenance 2. Cleaning the Impeller of the Cleaning Bucket After using the cleaning bucket for a period of time, the impeller at the bottom may experience abnormal rotation due to sediment buildup. In this case, the impeller needs to be removed for cleaning. (See Picture 6) (Picture 6)

  • Page 15: Faq

    1. Machine not working in curing mode. The anti-UV cover is not properly closed. Please close the cover and try again. Poor power connection. Please unplug the power cord and plug it back in, then try again. 2. Model turns white after cleaning or curing. The model was not air-dried before curing.
  • Page 16 ●Telephone--0755-21005141 ●Mailbox--3dp@elegoo.com ●Website--www.ELEGOO.com ●Address--101, No.30 Dahe Industrial Park, Guancheng Community, Guanhu Street, Longhua District, Shenzhen, China...
