Central Machinery 59766 Owner's Manual & Safety Instructions

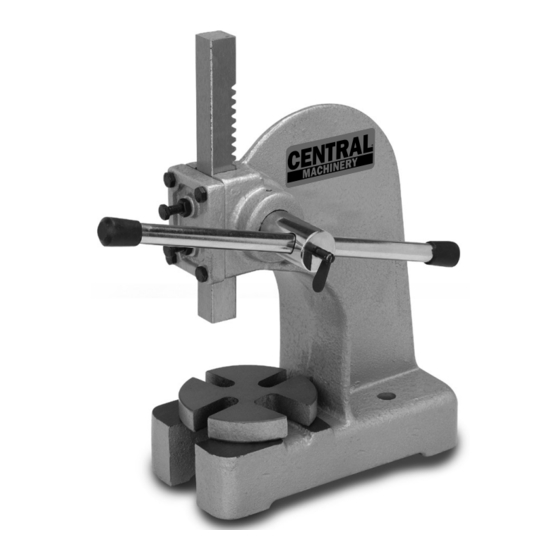

1 ton arbor press
Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
22h

Advertisement

loading
Need help?

Need help?

Do you have a question about the 59766 and is the answer not in the manual?

Questions and answers

Related Manuals for Central Machinery 59766

Summary of Contents for Central Machinery 59766

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

  • Page 2: Table Of Contents

    The correct tool will do the job better children and other untrained persons. A tool and safer at the rate for which the tool is designed. is dangerous in the hands of untrained users. For technical questions, please call 1-888-866-5797. Page 2 Item 59766...
  • Page 3 12. Press service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. SAVE THESE INSTRUCTIONS. For technical questions, please call 1-888-866-5797. Item 59766 Page 3...

  • Page 4: Specifications

    Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Functions Rack Press Handle Lock Pin Plate For technical questions, please call 1-888-866-5797. Page 4 Item 59766...

  • Page 5: Assembly

    Plate (3) (Not shown) Body Figure B: Installing Plate 5. Place Plate (3) on base of Body as shown in Figure B. Insert Spring Pin (2) into hole of base. For technical questions, please call 1-888-866-5797. Item 59766 Page 5...
  • Page 6 10. Arbor Press is now ready for use. 8. You may have to rotate the Handle slightly to get the teeth of the Gear to mesh with the teeth of the Rack Press. For technical questions, please call 1-888-866-5797. Page 6 Item 59766...

  • Page 7: Operation

    Shaft (18) Lock Pin (17) Figure F: Adjusting Shaft 2. Loosen Lock Pin (17) by turning it as shown in Figure F. This allows adjustment to length of the Shaft (18) For technical questions, please call 1-888-866-5797. Item 59766 Page 7...
  • Page 8 To cover opening beneath the Rack Press, rotate the Plate until one of the four solid parts of Plate is underneath the Rack Press. For technical questions, please call 1-888-866-5797. Page 8 Item 59766...

  • Page 9: Maintenance

    If a problem occurs, have the problem corrected before further use. Do not use damaged equipment. For technical questions, please call 1-888-866-5797. Item 59766 Page 9...

  • Page 10: Parts List And Diagram

    Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Reference UPC 193175483591. For technical questions, please call 1-888-866-5797. Page 10 Item 59766...
  • Page 11 LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. For technical questions, please call 1-888-866-5797. Item 59766 Page 11...

  • Page 12: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
