SAFETY INFORMATION ....................
USING THE HOOD
Controls .........................................................4
CARE AND CLEANING
Filter ........................................................... 5
Surfaces ....................................................... 6
Lights............................................................ 6
INSTALLATION INSTRUCTIONS .......
TROUBLESHOOTING TIPS .............
LIMITED WARRANTY ........................
CUSTOMER SUPPORT ....................
Write the model and serial
numbers here:
Model #
Serial #
You can find them on a label
on the inside of the hood.
READ AND SAVE THESE INSTRUCTIONS
2
OWNER'S MANUAL
& INSTALLATION
7
17
18
26

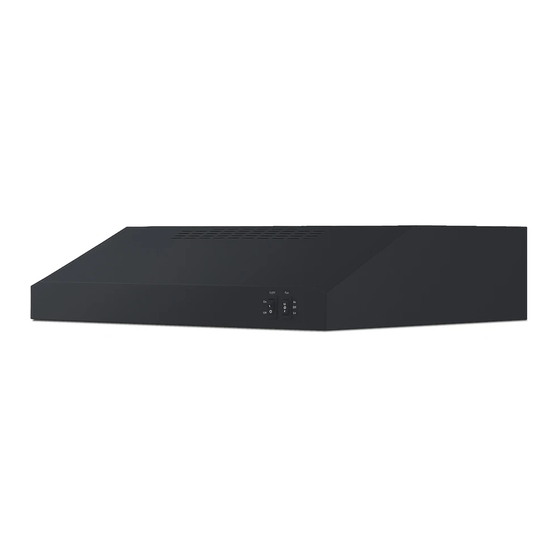

MODELS:
HC20BB HC24BB
HC20SS HC24WW
HC20WW HC30WW
HC30BB
Advertisement
Table of Contents
Related Manuals for Summit HC20BB
Summary of Contents for Summit HC20BB
-
Page 1: Table Of Contents
Lights…………………………………………………… 6 & INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS ..TROUBLESHOOTING TIPS ..... LIMITED WARRANTY ......CUSTOMER SUPPORT ....MODELS: HC20BB HC24BB HC20SS HC24WW HC20WW HC30WW HC30BB Write the model and serial numbers here: Model # Serial # You can find them on a label on the inside of the hood. -
Page 2: Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP WARNING TO REDUCE THE RISK OF FIRE, GREASE FIRE, OBSERVE THE FOLLOWING*: ELECTRIC SHOCK, OR INJURY TO PERSONS, A. - Page 3 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING REMOTE ENABLE EQUIPMENT (on some models) This device complies with part 15 of the FCC Rules. ■ Reorient or relocate the receiving antenna. Operation is subject to the following two conditions: (1) ■...
-
Page 4: Controls
Controls On Some Models 1. Rangehood Control Panel: 3. Fan Power Switch: The control panel The power switch toggles is located on the front of the canopy. between fan settings Hi, Lo, and Off. 2. Light Switch: The light switch toggles between the lightbulb On and Off. -
Page 5: Filter
Filter Be sure the circuit breaker is off, and all surfaces are cool before cleaning or servicing any part of the vent hood. Charcoal Filter For this model, the air needs to be recirculated through a To install: disposable charcoal filter that helps remove smoke and 1. -
Page 6: Surfaces
Surfaces Stainless Steel Surfaces (on some models) Do not use a steel wool pad; it will scratch the Use only a liquid cleanser free of grit and rub in the surface. direction of the brush lines with a damp soft sponge. Use warm sudsy water or a stainless steel cleaner or To inquire about purchasing stainless steel appliance polish to clean the stainless steel surface. -
Page 7: Installation Instructions
Installation Under the Cabinet (UTC) Hoods Instructions If you have questions, call Summit at 1-718-893-3900 or visit our website at: www.summitappliance.com/support BEFORE YOU BEGIN WARNING TO REDUCE THE RISK OF FIRE, Read these instructions completely and ELECTRIC SHOCK, OR INJURY TO PERSONS, carefully. - Page 8 Installation Preparation DUCTWORK REQUIREMENTS WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. NOTE: Read the ductwork sections only if you do not have existing ductwork. If you have existing ductwork, skip to the “Damage” section, and proceed. The venting system must exhaust to the outside.
- Page 9 Installation Preparation PRODUCT DIMENSIONS MOUNTING SPACE 12” Bottom edge ⁄ ” of cabinet 24″, 30″ or 36″ to needs to match cooktop width be 30” or 24" Min required more from 30" Max recommended the cooking to the bottom of the 20”...
- Page 10 Installation Preparation TOOLS AND MATERIALS REQUIRED INSTALLATION DIMENSIONS (NOT INCLUDED) 12" Safety glasses Pencil and tape measure Wire cutter/stripper X = Distance from hood to cooktop Spirit level (varies depending on installation) Required Min. = 24" Recommended Max. = 30" UL listed wire nuts Electric drill, #2 Phillips, flat head, and...
- Page 11 Installation Preparation ADVANCE PLANNING POWER SUPPLY Vented Install Planning IMPORTANT – (please read carefully) • This hood is designed to be vented vertically using WARNING a 7" round duct or a 3 ⁄ " x 10" rectangular duct or horizontally using a 3 ⁄...
- Page 12 Installation Preparation 1 SELECT VENT OPTION THAT 2 PREPARING MOUNTING YOUR INSTALLATION WILL A To install to the bottom of cabinet REQUIRE (A-D) Use the diagram or hood as a template and Outside top exhaust mark the locations on the cabinet for the (Vertical duct—3 ⁄...
- Page 13 Installation Preparation 3 PREPARE FOR ELECTRICAL AND VENTING Select the vent option that your installation will require and proceed to that section: Outside top exhaust (Vertical duct–3 ⁄ ” x 10” Rectangular) • Use the diagram as a template and mark the locations on the cabinet for ductwork and electrical wiring.
- Page 14 Installation Preparation 4 REMOVE ELECTRICAL 6 REMOVE DUCT KNOCKOUT(S) FOR VENTED INSTALLATION KNOCKOUTS Use a flat blade screwdriver, remove the Determine which ducting option to use. appropriate electrical knockout from the back or Using a flat blade screwdriver, remove the the top of the hood.
- Page 15 Installation Instructions 8 FOR VENTED INSTALLATIONS 10 MOUNT THE UTC On Some Models: Place the hood onto the partially installed screws using the keyholes and slide the hood Install with vented mode deflector part. back into position. On Some Models: Install vented mode deflector part.
- Page 16 Installation Instructions 14 FINISH THE INSTALLATION 12 CONNECT DUCTWORK TO HOOD On Some Models: (Ducted installations only) For recirculation: Install the charcoal filter. Connect ducting to hood. Use duct tape to make joints secure and airtight. For ducted installation: Install the grease filters.
-
Page 17: Troubleshooting Tips
Troubleshooting tips ... Before you call for service You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service. Problem Possible Cause What To Do... -
Page 18: Limited Warranty
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, the warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company. - Page 20 An ISO 9001:2015 registered company 770 Garrison Avenue Bronx, NY 10474 TEL 718-893-3900 FAX 844-478-8799 info@summitappliance.com www.summitappliance.com 991.0701.864_01 - 230413 D_00009305_00...
