Summary of Contents for Summit SEH1524

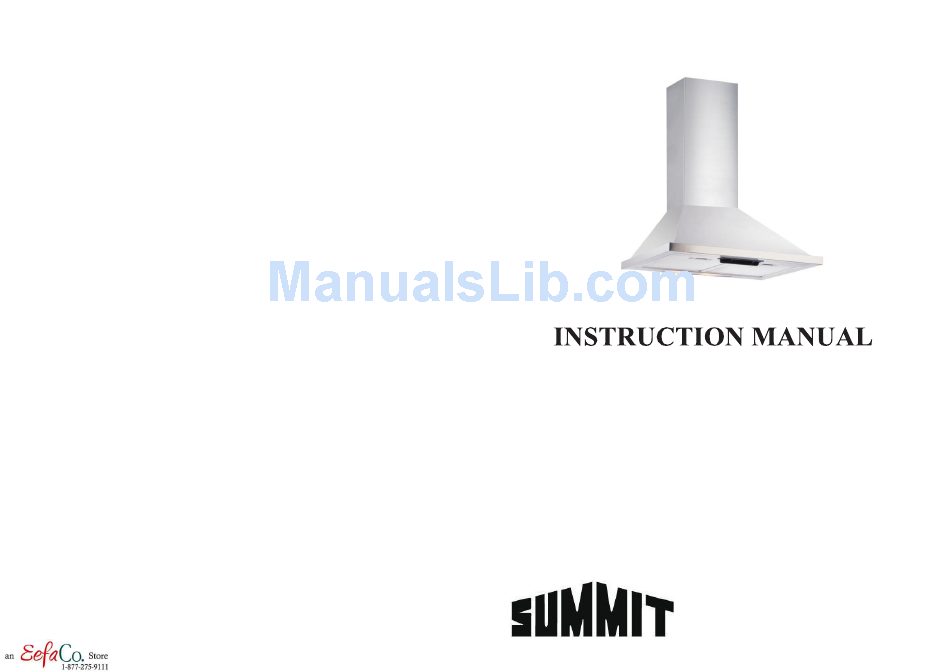

- Page 1 RANGE HOODS Models SEH1524 SEH1536...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Warnings....................2-4 Location of Parts....................5 Technical Specifications..................6 Dimensional Diagram...................7 Installation......................8-10 Positioning the Range Hood..............8 Preparing the Site...................8-9 Installing Mounting Brackets..............9 Installing the Range Hood on the Wall..........9-10 Operation......................11 Speed Choice Lighting Efficient Ventilation Cleaning and Maintenance................12-13 Carbon Filter Replacement..............12 Replacement of Lighting Components.............13 Moving the Hood..................13 Troubleshooting....................14... -
Page 3: Safety Warnings
SAFETY WARNINGS a. This product is designed for domestic use. b. Electric input for the device must be 110-120 Volt, 60 Hz. c. A grounded cable is installed in your device. It must be connected to a grounded electrical socket. d. - Page 4 Any parts determined to be defective will be replaced WARNING! TO REDUCE THE RISK OF A RANGE-TOP GREASE FIRE: by SUMMIT at no charge to you. Plastic parts, liners, and outer cabinets are a. Never leave surface units unattended at high settings.
- Page 5 a. Use this unit only in the manner intended by the manufacturer. If you have WIRING DIAGRAM questions, contact the manufacturer. b. Before servicing or cleaning the unit, switch power off at the service panel and Motor: 340W / Lamp: 2X50W Input :110V AC 60 Hz lock the service-disconnecting means to prevent power from being switched on accidentally.
-
Page 6: Location Of Parts
LOCATION OF PARTS SEH1536 Model Model No 2121.9.579.01 Spare Part Pos. Part No. CARBON FILTER YT971.1000.22 ALUMINUM CASSETTE FILTER YT142.2120.06 CABLE FIXER(FOR CHIMNEY HOOD) YT207.1000.35 CIRCUIT BOX COVER YT201.1000.22 CIRCUIT BOX YT201.1000.24 METAL VALVE YT202.1000.16 BLOWER YT460.1000.16 HALOGEN LAMP-50W YT403.1000.10 POWER SUPPLY CORD YT404.1000.24 LAMP HOLDER GROUP... -
Page 7: Technical Specifications
EXPLODED VIEW TECHNICAL SPECIFICATIONS SEH1524-SEH1536 Model 110-120 V Voltage(V) 2 x 50 W Lamp (W) Slider Button Control Type 340 W Motor Power (W) 500 CFM Capacity (CFM) Motor Insulation Class Insulation Class CLASS I Table 2... -
Page 8: Dimensional Diagram
DIMENSIONAL DIAGRAM Model SEH1524 2121.6.579.01 Model No WARNING! Spare Part Pos. Part No. TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CARBON FILTER YT971.1000.22 ALUMINUM CASSETTE FILTER YT142.2120.03 CABLE FIXER(FOR CHIMNEY HOOD) YT207.1000.35 CIRCUIT BOX COVER YT201.1000.22 CIRCUIT BOX YT201.1000.24... -
Page 9: Installation
EXPLODED VIEW INSTALLATION CAUTION: During installation, persons installing the hood must wear heavy gloves to protect against sharp edges. POSITIONING THE RANGE HOOD Upon completion of installation, the distance between the hood and an electric rangetop must be a minimum of 25" (65cm), and the distance between the hood and a gas rangetop must be a minimum of 30"... -
Page 10: Installing Mounting Brackets
FRAMING BEHIND DRYWALL Ø8 Ø8 wood wall with minimum thicknes of 8 mm... - Page 11 3.Fix the suspender screws. REPLACEMENT OF LIGHTING COMPONENTS Fix the screws to holes A and B.Keep a clearance of 5 Disconnect the hood. mm (0.2") between wall and head of screws in order to hang the hood body easily.Fix the chimney mounting Remove the aluminum cassette filter.
-
Page 12: Operation
OPERATION SPEED CHOICE Product has three-speed motor and a multi-positioned switch to command the motor. For best performance, we recommend you to operate the unit at high speed in excessively smokey and smelly places. Motor starts as the slider switch is opened and stops as the slider set is closed.The slider button at the bottom of the device is for turning the device on.
