Summary of Contents for Summit SEH4624SSADA

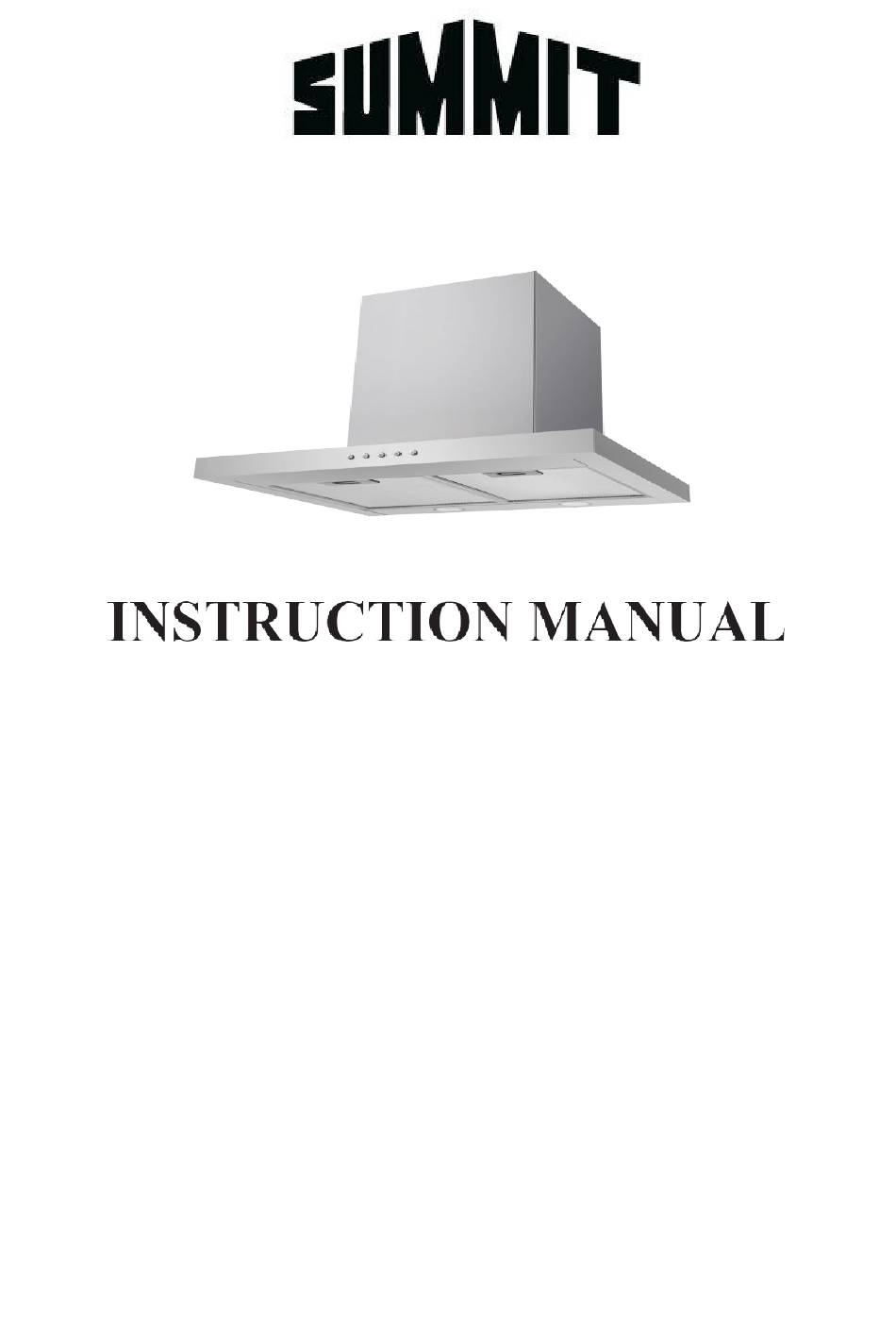

- Page 1 RANGE HOODS Models SEH4624SSADA SEH4630SSADA SEH4636SSADA FELIX STORCH, INC. 770 Garrison Avenue Bronx, New York 10474 www.summitappliance.com Read and save these instructions...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Warnings ....................2-4 Location of Parts ....................5 Technical Specifications..................6 Dimensional Diagram ....................7 Installation ......................8-12 Positioning the Range Hood ..............8 Preparing the Site ................... 8-9 Installing the Range Hood on the Wall........... 9-11 Remote Switch Instructions.................. -
Page 3: Safety Warnings
SAFETY WARNINGS READ AND SAVE THESE INSTRUCTIONS a. This product is designed for domestic use. b. Electric input for the device must be 110-120V, 60Hz. c. A grounded cable is installed in your device. It must be connected to a grounded electrical socket. - Page 4 GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
- Page 5 WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER INJURY, OBSERVE THE FOLLOWING: WARNING: Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. a. Before servicing or cleaning the unit, switch power off at the service panel and lock the service-disconnecting means to prevent power from being switched on accidentally.
-
Page 6: Location Of Parts
LOCATION OF PARTS 1- 120V Supply Cord 2- Illumination 3- Aluminum Cassette Filter 4- Control Panel 5- Body 6- External Chimney 7- Internal Chimney 8- Ventilation... -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS SEH4624SSADA Model SEH4630SSADA SEH4636SSADA Voltage(V) 120V Lamp (W) 2 x 5W LED Control Type Electronic soft-touch control 310W Motor Power (W) 400CFM ±10% Capacity (CFM) Motor Insulation Class CLASS I Insulation Class Table 2... -
Page 8: Dimensional Diagram
DIMENSIONAL DIAGRAM WARNING! TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. ” ” ” ” ” ” ” SEH4624SSADA: 23 ” SEH4630SSADA: 29 ” SEH4636SSADA: 35... -
Page 9: Installation
INSTALLATION CAUTION: During installation, persons installing the hood must wear heavy gloves to protect against sharp edges. POSITIONING THE RANGE HOOD Upon completion of installation, the distance between the hood and an electric range top must be a minimum of 26" (65cm), and the distance between the hood and a gas range top must be a minimum of 30"... -
Page 10: Installing The Range Hood On The Wall
INSTALLING THE RANGE HOOD ON THE WALL DRILLING OF HANGING HOLES Confirm the installation position of the hood and install it according to the figure on the right. Open the holes on A,B,C,D points with ” Ø 8mm sized drill bit. MAX 17 ”... - Page 11 MOUNTING THE PRODUCT ONTO WALL Hang the product by already mounted -L shaped- hanging the parts covering the body. Then fix the body on (A,B) holes to the wall using the screws. Fix the body onto the wall with a screw through the (C,D) holes that are located inside the body.
- Page 12 WARNING! TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. Place metal chimneys over product body. Screw internal chimney on chimney fixing sheet, fixed over upper corner of external chimney.
-
Page 13: Remote Switch Instructions
REMOTE SWITCH INSTALLATION NOTE: Installation and service must be performed by a qualified installer/electrician WARNING: To avoid fire or electrical shock, turn off the power at the circuit breaker. Test to ensure that the power is off before starting the wiring. NOTE: If installing this switch in accordance with ADA guidelines, the height of the light switch must be no lower than 15”... -
Page 14: Using Your Range Hood
For best performance, you should switch on the range hood 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Light High speed Middle speed Low speed Power When the hood is powered on, there will be a beep, and enter the off state. Power- off: The power button is off, the power indicator is off, and it is in the off state. -
Page 15: Cleaning And Maintenance
CLEANING AND MAINTENANCE Disconnect the device prior to maintenance (cut off its power supply by turning off the switch). The aluminum cassette filter holds oils and dust from the air. The metal filter must be washed in hot soapy water every month, if possible, in the dishwasher at 140°F. -
Page 16: Replacement Of Lighting Components
Be sure the bulb is cool before trying to change it. 5W LED Note: Replacement bulbs can be purchased directly from SUMMIT by calling us at 1-800-932-4267 or by going to our website at www.summitappliance.com/support. Have the model number of your range hood handy. -
Page 17: Troubleshooting
Service and Spare Parts You can obtain service advice and spare parts for your product directly from SUMMIT by calling us at 1-800-932-4267 or by going to our website at www.summitappliance.com/support Have the model number of your range hood handy. This can be found on the product label, which can be seen when you remove the aluminum cassette filter. -
Page 18: Exploded View
EXPLODED VIEW SEH4624SS SEH4630SS 2190.8.579.01 Exploded View For 24" Model... - Page 19 Model SEH4624SS Model No 2190.8.579.01 Pos. Part No. 0010800207 Cassette aluminum filter 0010108074 Switch front panel 0010108079 Switch bracket 0010902449 electronic switch 0010902447 LED LAMP 5W 0011405572 Lamp holder assembly-with long wire 0011405573 Lamp holder assembly-with short wire 0010800396 Charcoal filter 0011405534 Blower assembly 0011405549...
- Page 20 Model SEH4630SS Model No 2190.8.579.01 Pos. Part No. 0010800394 Cassette aluminum filter 0010108086 Switch front panel 0010108079 Switch bracket 0010902449 electronic switch 0010902447 LED LAMP 5W 0011405572 Lamp holder assembly-with long wire 0011405573 Lamp holder assembly-with short wire 0010800396 Charcoal filter 0011405534 Blower assembly 0011405549...
-
Page 21: Parts List
EXPLODED VIEW SEH4636SS 2190.8.579.01 Exploded View For 24" Model... - Page 22 Model SEH4636SS Model No 2190.8.579.01 Pos. Part No. 0010800395 Cassette aluminum filter 0010108094 Switch front panel 0010108079 Switch bracket 0010902449 electronic switch 0010902447 LED LAMP 5W 0011405572 Lamp holder assembly-with long wire 0011405573 Lamp holder assembly-with short wire 0010800396 Charcoal filter 0011405534 Blower assembly 0011405554...
-
Page 23: Wiring Diagram
WIRING DIAGRAM 2*5W LED Lamp YELLOW BLUE(H) WHITE MOTOR 300W BLACK capacitor GRAY... -
Page 24: Limited Warranty
Any parts determined to be defective will be replaced by SUMMIT at no charge to you. Plastic parts, liners, and outer cabinets are warranted to be manufactured to commercially acceptable standards and free from defects at the time of delivery.
