BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
Write Model and Serial Numbers
here:
Model: _____________________
Serial No.: __________________

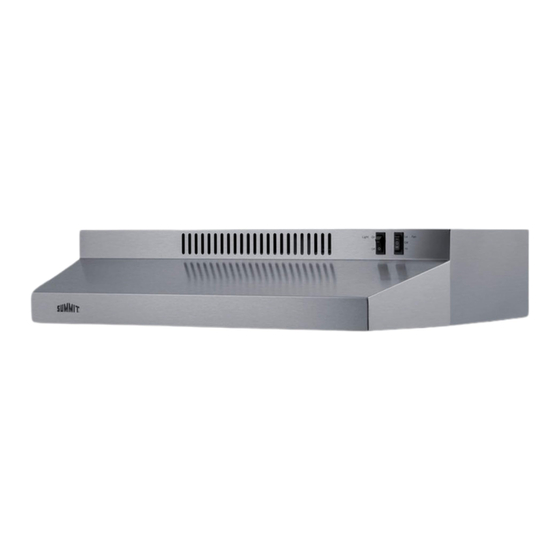

RANGE HOOD
Models:
H24RSS
H24SSCV
H30RSS
H30SSCV
H36RSS
H36SSCV
H24RW
H24WCV
H24RB
H24BCV
H30RW
H30WCV
H30RB
H30BCV
H36RW
H36WCV
H36RB
H36BCV
User Manual
INSTRUCTIONS
H24ADASS
H30ADASS
H36ADASS
H24ADAW
H24ADAB
H30ADAW
H30ADAB
H36ADAW
H36ADAB
Felix Storch, Inc.
Summit Appliance Division
An ISO 9001:2015 registered company
770 Garrison Avenue Bronx, New York 10474
www.summitappliance.com
Cod:0103091380-00.01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Summit H24RSS
Summary of Contents for Summit H24RSS
- Page 1 BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS Write Model and Serial Numbers here: Felix Storch, Inc. Model: _____________________ Summit Appliance Division Serial No.: __________________ An ISO 9001:2015 registered company 770 Garrison Avenue Bronx, New York 10474 www.summitappliance.com Cod:0103091380-00.01...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Equipment Safety Cooking Safety Information Installation Instructions 5-13 Ductwork Requirements Exhaust Connection Maximum Duct Length Damage Wiring Connection Ductwork Length Worksheet Choosing a Vent Option Duct Installation 8-10 Mark Holes 11-12 Cut Holes Secure the Hood Connect the Ductwork (Ducted Installations) Replace the Filter Operating your Range Hood Cleaning and Care... -
Page 3: Equipment Safety
EQUIPMENT SAFETY WARNING: To reduce the risk of fire, electric shock, or injury to persons, observe the following: • Use this unit only in the manner intended by the manufacture r. If you have any questions, contact the manufacturer. • Before servicing or cleaning unit, switch power off at service panel and lock service disconnecting means to prevent power from being switched on... -
Page 4: Cooking Safety Information
Cooking Safety Information Never leave the range hood unattended when in use. Never cook over open flames under the range hood. Always turn the range hood on when cooking at high heat or when cooking flaming foods. The minimum installation distance above the range (D) is 18 in. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS CAUTION: Before beginning the installation, switch the power off at the circuit breaker and lock the service, disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the breaker. -
Page 6: Wiring Connection
Wiring Connection Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction. • Electrical grounding is required for this range hood. Check with a qualified electrician if you are not sure whether the range hood is properly grounded. -
Page 7: Ductwork Length Worksheet
Installation Instructions WORKSHEET—CALCULATE TOTAL EQUIVALENT DUCTWORK LENGTH EQUIVALENT NUMBER EQUIVALENT NUMBER DUCT DUCT LENGTH x USED PIECES = TOTAL PIECES LENGTH X USED = TOTAL ⁄ ″ x 10″ 1 Ft. 6″ Ro und 53 Ft. Rect., wall cap (39 ft. w/o straight with damper) -
Page 8: Choosing A Vent Option
Choosing a Vent Option Determine the vent option that your installation will require and that is available for your model from the below choices. NOTE: If the hood is to be installed in a recirculating, non-vented, ductless manner, do not knock out any vent openings in the hood. -
Page 9: Duct Installation
Duct Installation Remove the Filter Take out filters from the accessory bag. Tear off film from grease filter. Put charcoal filter on grease filter. Slip the back edge of the filter into the retaining slot. Rotate the filter block pin to fix the filters into place. - Page 10 For 3 ¼” x 10” Rectangular Ducted Installation 1. Remove tape from damper flap. 2. Attach exhaust adaptor/damper over the appropriate knockout opening (for vertical or horizontal, depending on installation) with six exhaust adaptor screws. Make sure damper pivot is nearest to top/back edge of hood.
-
Page 11: Mark Holes
Mark Holes Select the vent option that your installation will require and proceed to that section: Outside Top Exhaust – 3 ¼” x 10” Rectangular ″ (36″ hood) ″ (36″ hood) ⁄ ⁄ Use the diagram to the ⁄ ″ (30″ hood) ⁄... -
Page 12: Cut Holes
Outside Rear Exhaust – 3 ¼” x 10” Rectangular Use the diagram to the right or the hood itself as a template and mark the locations on the cabinet for ductwork and keyhole screw slots. Wood shims (recessed-bottom cabinets only–shims must be ″... -
Page 13: Secure The Hood
Secure the Hood Slide the hood back against the wall. Tighten the mounting screws. Be sure the screw heads are in the narrow neck of the keyhole slot. NOTE: DO NOT push the fan blade. Pushing on the blade may cause it to interfere with other hood parts. -
Page 14: Replace The Filter
Replace the Filter Make sure fan blade turns freely and replace the filter. NOTE: Install the metal grease filter if ducted or the charcoal filter if recirculated. The installation is complete. Turn on the power at the breaker box and test the hood for proper operation. -
Page 15: Cleaning And Care
CLEANING AND CARE CAUTION: Be sure the range hood is disconnected from the power supply and all surfaces are cool before cleaning any part of the vent hood. Reusable Metal Grease Filter – Ducted Installations Only The efficiency of your hood depends on a clean filter. Frequency of cleaning depends on hood use and the type of cooking you do. -
Page 16: Surfaces
Surfaces CAUTION: When cleaning the hood surfaces, be certain that you do not touch the light bulb with moist hands or cloth. A warm or hot light bulb may break if touched with a moist surface. Always let the light bulb cool completely before cleaning around it. •... - Page 17 NOTES...
-
Page 18: Limited Warranty
LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory- specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
