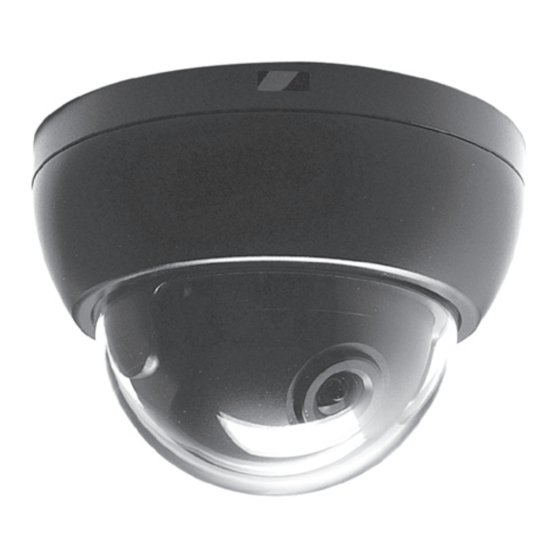

ATV VDM700DN/6 Operation Manual

M i n i Van d a l pr o o f D o me C a m e r a
Thank you for choosing our high quality camera.
Before attempting to connect or operate, please read and follow these instructions.
KEY FE ATURES
These cameras are equipped with 1/3" Sony Exview HAD CCDⅡ, Solid-State Imaging
Device which provides superior performance.
Its very low current consumption of 110mA or Less and excellent durability
(Vandal proof, IP66) allow easy installation in any location.
ACCE SS OR I ES FUR N ISH ED
Accessories DIY cable
Q'ty
Option
SPECIF IC ATI ON S
Signal Format
Image Device
Scanning
System
H.Resolution
Scanning
Frequency
Total Pixels
Effective Pixels
Electronic
Shutter Speed
S/N Ratio
Gamma
Min.Illumination
Sync System
Video Output
Input Power
Source
Lens Fitted
Operating
Temperature
Storage
Temperature

Dimensions

IP rating
Specifications and designs are subject to change for improving the functionality of this product without notice.
VDM700DN
OP ERATI ON MAN UAL
Mount screw
- 4
1 -
NTSC
H:15.734KHz, V:59.94Hz
1020(H) x 508(V)
976(H) x 494(H)
1/60 - 1/100,000 sec
Automatic
Instruction
Set Screw
Manual
3 1
-
1/3" Sony Exview HAD CCDⅡ
2 : 1 Interlace
700TV Lines
More than 50dB(AGC Off)
r =0.45
0.05Lux / F2.0
Internal
1.0 Vp-p Composite 75(Ω)
DC 12V ±10%, Less than 110mA
Board Lens
-10℃ ~ +50℃
-20℃ ~ +60℃
Ø 81 x 63 mm
IP66
M 110-V D61-002
L wrench
1
- -
PAL
H:15.625KHz, V:50Hz
1020(H) x 596(V)
976(H) x 582(V)
1/50 - 1/100,000 sec
Automatic
Mount Guide
1
-
