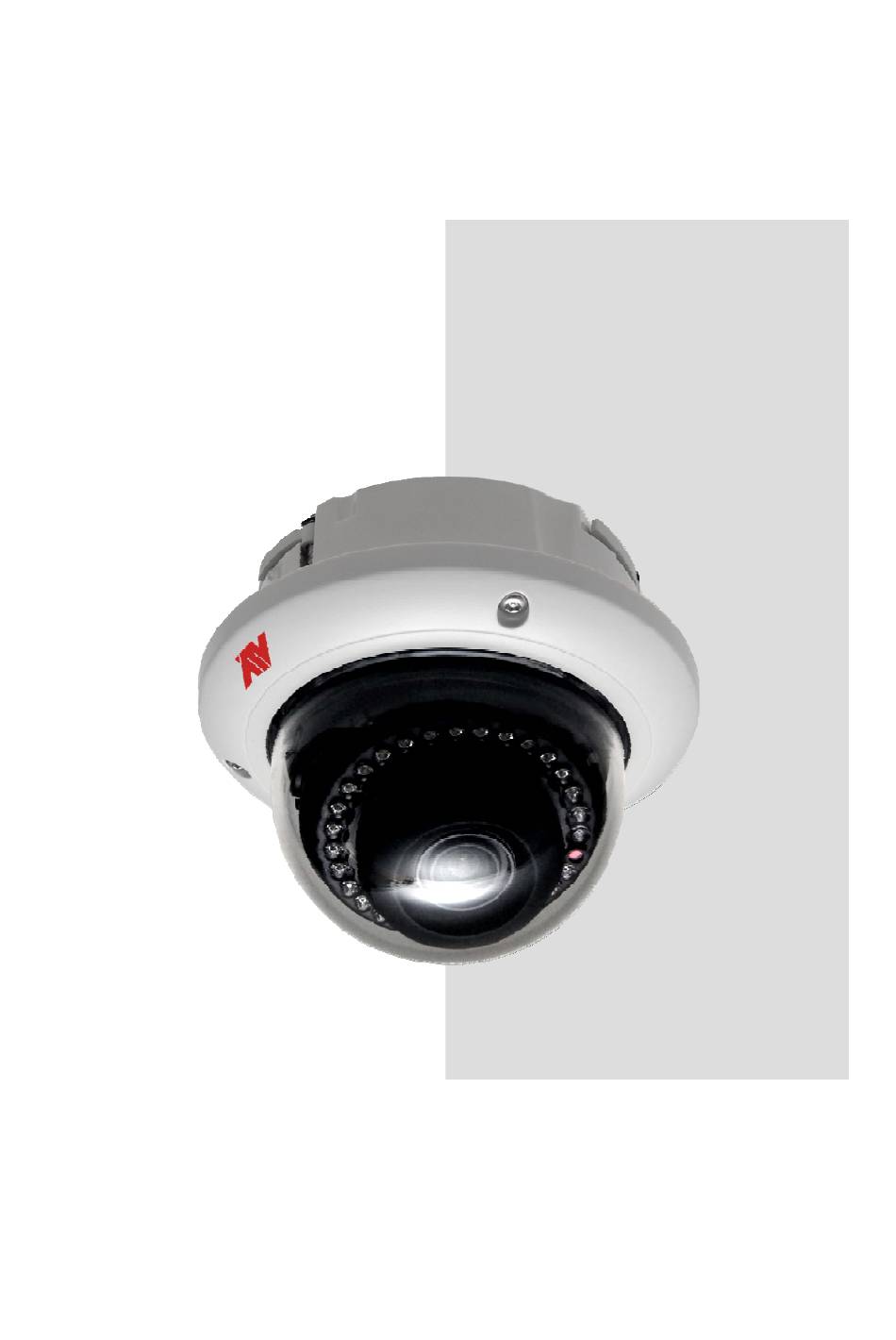

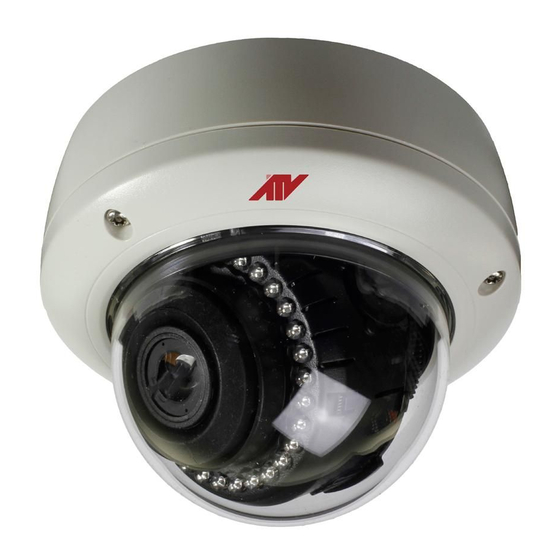

INSTRUCTION MANUAL
IR Interior/
Exterior Dome
Network Camera -
IPFD2TI
Please read this manual thoroughly before use, and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPFD2TI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATV IPFD2TI

Summary of Contents for ATV IPFD2TI

  • Page 1 INSTRUCTION MANUAL IR Interior/ Exterior Dome Network Camera - IPFD2TI Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
  • Page 3 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INFORMATION TO THE USER : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC...
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 5: Table Of Contents

    Contents 1. Description ------------------------------------------------------------------6 1.1 Components ---------------------------------------------------------------------------------------------6 1.2 Key Features ---------------------------------------------------------------------------------------------7 1.3 Layout ------------------------------------------------------------------------------------------------8 2. Installation ------------------------------------------------------------------ 9 2.1 Camera Installation -------------------------------------------------------------------------------------9 2.2 Network Connection and IP Assignment ---------------------------------------------------------- 14 3. Operation -------------------------------------------------------------------- 15 3.1 Access from a browser -------------------------------------------------------------------------------- 15 3.2 Access from the internet ------------------------------------------------------------------------------ 16 3.3 Setting the admin password over a secure connection ------------------------------------------- 16 3.4 Live View Page ----------------------------------------------------------------------------------------- 17...

  • Page 6: Description

    1. Description This manual applies to the IPFD2TI network camera. The Network Camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the Network Camera at once or a single user can monitor various network cameras at the same time.

  • Page 7: Key Features

    1.2 Key Features • Brilliant video quality The Network Camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. • Triple streams The Network Camera can deliver triple video streams simultaneously at full frame rate in all resolutions up to 1920 x 1080 using Motion JPEG and H.264 (or MPEG-4).

  • Page 8: Layout

    1.3 Layout Name Description Lens Allows wide area to be monitored Ethernet Cable Cable for Ethernet (POE) Power Cable Cable for Power source (DC 12V) Camera Dimension  See the diagrams below for the exact dimension...

  • Page 9: Installation

    2. Installation 2.1 Camera Installation - Surface Type 1. Loosen the three torx screws located midway up the front of the housing leave the screws intact in the front portion (Fig. 1) 2. Drill the mounting location using the supplied drill guide label. (Fig. 2) 3.
  • Page 11 - Flush Type Note: The ceiling tile cannot be thinner than 0.15inch (37mm) 1. Loosen the three torx screws located midway up the front of the housing leave the screws intact in the front portion (Fig. 1) 2. Remove the ceiling tile from the ceiling. Draw a circle whose diameter is 116mm on the tile (You can user carton with a hole).
  • Page 13 Micro SD memory slot  Insert the SD memory card. • Connecting the Power Connect 12VDC power source to the camera if not using PoE.

  • Page 14: Network Connection And Ip Assignment

    2.2 Network Connection and IP assignment The Network Camera supports the operation through the network. When a camera is first connected to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the “Smart Manager”...

  • Page 15: Operation

    3. Operation The Network Camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls.

  • Page 16: Access From The Internet

    3.2. Access from the internet Access from the internet once connected, the Network Camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which will attempt to automatically configure the router to allow access to the network camera.

  • Page 17: Live View Page

    3.4 Live View Page The live view page comes in several screen modes: 1920x1080, 1280x1024, 1280x720, 800x600, 704x480(576), 640x480, 352x240(288) and 320x240. Users are allowed to select the most suitable one out of those modes. Please, adjust the mode in accordance with your PC specifications and monitoring purposes.
  • Page 18 3) Video Streams The network camera provides several images and video stream formats. Your requirements and the properties of your network will determine the type you use. The Live View page in network camera provides access to H.264, MPEG-4 and Motion JPEG video streams, and to the list of available video streams.

  • Page 19: Network Camera Setup

    3.5 Network Camera Setup This section describes how to configure the network camera, and is intended for product Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access to the settings for Basic, Live View, Video & Image and System Configuration. You can configure the network camera by clicking Setup in the top right-hand corner of the Live View page.

  • Page 20: Users

    1) Users User access control is enabled by default. An administrator can set up other users, by giving these user names and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page, as described below: The user list displays the authorized users and user groups (levels): User Group Authority...
  • Page 21 2) Network The network camera supports both IP version 4 and IP version 6. Both versions may be enabled simultaneously, and at least one version must always be enabled. When using IPv4, the IP address for the network camera can be set automatically via DHCP, or a static IP address can be set manually. If IPv6 is enabled, the network camera receives an IP address according to the configuration in the network router.

  • Page 22: Video & Image

    3) Video & Image • Stream1 Setting Codec: The codec settings are separated into MPEG4 and H.264. H.264 is also known as MPEG-4 Part 10. This is the new generation compression standard for digital video. This function offers higher video resolution than Motion JPEG or MPEG-4 at the same bit rate and bandwidth, or the same quality video at a lower bit rate.
  • Page 23 H.264 BP (Baseline Profile): Originally intended as the mainstream consumer profile for broadcast and storage applications, the importance of this profile faded when the High profile was developed for those applications. MPEG4 SP (Simple Profile): Mostly aimed for use in situations where low bit rate and low resolution are mandated by other conditions of the applications, like network bandwidth, device size etc.

  • Page 24: Date & Time

    JPEG resolution: Same as the Stream1 Setting. JPEG frame rate: Same as the Stream1 Setting. JPEG quality: Select the picture quality. If users want to have a high quality of fast image one by one, please decrease the value. For the purpose of general monitoring, please do not change a basic value.

  • Page 25: Live View

    From the Time Mode section, select the preferred method to use for setting the time: Synchronize with computer time: sets the time from the clock on your computer. Synchronize with NTP Server: the network camera will obtain the time from an NTP server every 60 minutes.

  • Page 26: Video & Image

    3.5.3 Video & Image  Basic Refer to “3.5.1 Basic Configuration > Video & Image” for more details.
  • Page 27  Image • Image Appearance This page provides access to the advanced image settings for the network camera. Brightness: The image brightness can be adjusted in the range 1-10, where a higher value produces a brighter image. Contrast: The image contrast can be adjusted in the range 1-10. Saturation: Adjust the image's contrast by raising or lowering the value in this field.
  • Page 28  AE & AWB • Exposure control This page provides access to the advanced exposure control settings for the network camera. Mode: Supports exposure modes to control the amount of light detected by the camera sensor based on settings for light conditions. The default setting is Auto mode. Automatic: Automatically sets the amount of light detected by the image sensor.
  • Page 29 • White Balance Control This adjusts the relative amount of red, green and blue primary colors in the image so that the neutral colors are reproduced correctly. The camera can be set to automatically adjust for the type of light and compensate for its color. Alternatively, the type of light source can be set manually.
  • Page 30 • Day & Night Control Select the day/night mode from among three modes. Mode: Normally works in day mode. It switches automatically to night mode in a dark place. Automatic: Normally works in day mode. It switches automatically to night mode in a dark place.
  • Page 31 The privacy masks are configured by Mask windows. Each window can be selected by clicking with the mouse. It is also possible to resize or delete, or move the window, by selecting the appropriate window at the mouse menu on the video screen. To create a mask window, follow steps: Click the right button of mouse to see the mouse menu.

  • Page 32: Event

    3.5.4 Event 1) Event-In  On Boot This is used to trigger the event every time the Network Camera is started. Select “Enable” to activate the motion event.
  • Page 33  Manual Trigger This option makes use of the manual trigger button provided on the live view page, which are used to start or stop the event type manually. Alternatively the event can be triggered via the product's API (Application Programming Interface).
  • Page 34  Motion Motion detection is used to generate an alarm whenever movement occurs (or stops) in the video image. A total of 8 Motion and/or Mask windows can be created and configured. Motion is detected in defined Motion windows, which are placed in the video image to target specific areas.
  • Page 35 To create a motion or mask window, follow steps: Click the right button of mouse to see the mouse menu. Select New Motion (or Mask) Window in the mouse menu. Click and drag mouse to designate a motion area. • Motion Detection Setting The behavior for each window is defined by adjusting the Threshold and Sensitivity, as described below.
  • Page 36  Network Loss This is used to trigger the event every time the network connection is failed. Select “Enable” to activate the Network Loss event.

  • Page 37: Event-Out

    2) Event-Out  SMTP (E-Mail) The Network Camera can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP (E-Mail) Setting Select “Enable” to activate the SMTP operation. Mail Server / Port: Enter the host names (or IP addresses) and port numbers for your mail server in the fields provided, to enable the sending of notifications and image email messages from the camera to predefined addresses via SMTP.
  • Page 38 Login Method: Set the Weakest method allowed to the highest/safest method supported by the mail server. The most secure method is listed in the drop-down list: Login / Plain • SMTP (E-Mail) Receiver Receiver: Enter an email address. You can also register the e-mail address of recipients up to 8.
  • Page 39 • JPEG Setting Pre-event: A pre-event buffer contains images from the time immediately preceding the event trigger. These are stored internally in the server. This buffer can be very useful when checking to see what happened to cause the event trigger. Check the box to enable the pre-trigger buffer, enter the desired total length in seconds, minutes or hours, and specify the required image frequency.
  • Page 40 ▼ Record When the network camera detects an event, it can record video stream in the Micro SD Memory (not supplied) or NAS (Network Attached Device) as a storage device. Check the box to enable the service. • Record Setting Overwrite: Click checkbox to overwrite the storage device.
  • Page 41 • Device Setting Select Device Type to be recorded in the drop-down list. SD: built-in SD card CIFS: A file format for a NAS device. NFS: A file format for a NAS device. Note1: Common Internet File System (CIFS) is a remote file access protocol that forms the basis for Windows file sharing, network printing, and various other network services.
  • Page 42 ▼ Event Notification When the network camera detects an event, Notification Server is used to receive notification messages as a type of XML data format. Check the box to enable the service. • Event Notification Setting Notification Server URL: The network address to the server and the script that will handle the request.

  • Page 43: Event Map

    3) Event Map The event map allows you to change the settings and establish a schedule for each event trigger from the Network Camera. You can register the event map up to max. 15. Click Add button to make a new event map and you can see a popup window as below.
  • Page 44 • General Enter the name for a new event map. • Event In Select an event type in the drop down list. • Event Out E-mail: Select email addresses you want to send via email that an event has occurred. FTP: Select checkbox beside FTP to record and saves images to an FTP server when an event has occurred.

  • Page 45: System

    3.5.5 System 1) Information You can enter the system information. This page is very useful when you refer device information after installation. • Device Name Configuration Enter the device name. • Location Configuration Enter the location information. You can enter that by four.

  • Page 46: Security

    2) Security  Users User access control is enabled by default, when the administrator sets the root password on first access. New users are authorized with user names and passwords, or the administrator can choose to allow anonymous viewer login to the Live View page, as described below: •...
  • Page 47  HTTPS For greater security, the Network Camera can be configured to use HTTPS (Hypertext Transfer Protocol over SSL (Secure Socket Layer)). That is, all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection. •...
  • Page 48  IP Filtering Checking the Enable IP address filtering box enables the IP address filtering function. Up to 256 IP address entries may be specified (a single entry can contain multiple IP addresses). Click the Add button to add new filtered addresses. When the IP address filter is enabled, addresses added to the list are set as allowed or denied addresses.

  • Page 49: Date & Time

    3) Date & Time • Current Server Time It displays the current date and time (24h clock). The time can be displayed in 12h clock format in the overlay (see below). • New Server Time Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, select “Automatically adjustment for daylight saving time changes”.

  • Page 50: Network

    4) Network Setting in regard to network can be executed. Settings for IP, DNS, Host Name, Port, and ARP/Ping can be established, along with setting for DDNS, uPnP, QoS, Zeroconfig, Bonjour and wireless.
  • Page 51  Basic • IP Address Configuration: Obtain IP address via DHCP: Dynamic Host Configuration Protocol (DHCP) is a protocol that lets network administrators centrally manage and automate the assignment of IP addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly used to set an IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address.
  • Page 52  DDNS • Internet DDNS (Dynamic Domain Name Service) When using the high-speed Internet with the telephone or cable network, users can operate the Network Camera even on the floating IP environment in which IPs are changed at every access. Users should receive an account and password by visiting a DDNS service like http://www.dyndns.com/, or http://www.cctv-network.co.kr/.
  • Page 53  RTP Have a setting for sending and receiving a video on a real-time basis. These settings are the IP address, port number, and Time-To-Live value to use for the media stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast streams. For more information, please see the online help.
  • Page 54 Multicast destination IP: Enter an IP between 224.0.0.0 and 239.255.255.255. Although it is empty, an IP will be entered automatically. RTP port: Enter a value between 1024 and 65530. RTP TTL: Enter a value between 1 and 255. If a network status is smooth, enter a lower value.
  • Page 55 The main benefits of a QoS-aware network are: The ability to prioritize traffic and thus allow critical flows to be served before flows with lesser priority. Greater reliability in the network, thanks to the control of the amount of bandwidth an application may use, and thus control over bandwidth races between applications.
  • Page 56  NAT Traversal A broadband router allows devices on a private network (LAN) to share a single connection to the Internet. This is done by forwarding network traffic from the private network to the “outside”, that is, the Internet. Security on the private network (LAN) is increased since most broadband routers are pre-configured to stop attempts to access the private network (LAN) from the public network/Internet.
  • Page 57 • NAT traversal Settings Enable: when enabled, the network camera attempt to configure port mapping in a NAT router on your network, using UPnP™. Note that UPnP™ must be enabled in the Network Camera (see System>Network>UPnP). automatic setting: The Network Camera automatically search for NAT routers on your network.
  • Page 58 • Assignment of numeric network addresses for networked devices (link-local address auto configuration) • Automatic resolution and distribution of computer hostnames (multicast DNS) • Automatic location of network services, such as printing devices through DNS service discovery.  Bonjour The network camera includes support for Bonjour. When enabled, the network camera is automatically detected by operating systems and clients that support this protocol.
  • Page 59  Live Push When you activate this function, the network camera as a client can transfer audio, video and event data to the registered server. The network camera and server use RTP/RTSP as the protocol for the actual transport of audio/video data. Up to 3 servers can be configured.

  • Page 60: Language

    5) Language It will be able to select a user language. The type of language it will be able to select is English, Chinese, Russian and Korean. 6) Maintenance...

  • Page 61: Support

    • Maintenance Restart: The unit is restarted without changing any of the settings. Use this method if the unit is not behaving as expected. Reset: The unit is restarted and most current settings are reset to factory default values. The settings that are not affected are: * the boot protocol (DHCP or static) * the static IP address * the default router...
  • Page 62 • Logs The network Camera support system log information. Click the System Log button to get the log data. • Reports Server Report: Click the Server Report button to get the important information about the server’s status and should always be included when requesting support. Parameter List: Click the Parameter List button to see the unit’s parameters and their current settings.
  • Page 63 - Networks Check: Click the Network Check button to get the information about the camera’s network setting and traffic. You can see the pop-up window below. - Hardware Check: Click the Hardware Check button to diagnose the camera’s hardware like video.

  • Page 64: About

    3.5.6 About The following website will provide the support information for the Network Camera information and operation. 3.6 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording's start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not.
  • Page 65 Step backward play: go back one frame of the video clip. Pause: pause playback of the video clip. Step forward play: go forward one frame of the video clip. Forward Play: play forward the video clip. Fast forward play: play fast forward of the video clip. Step forward play: go forward one frame of the video clip.

  • Page 66: Help

    3.7 Help The Help information window will be provided as a popup window so that users can open and read it without a need for log-in. It will offer a description on setting and Help page by which users can manipulate the Network Camera without a reference to the manual.

  • Page 67: Resetting To The Factory Default Settings

    3.8 Resetting to the factory default settings To reset the Network Camera to the original factory settings, go to the Setup>System> Maintenance web page (described in “3.5.5 System > Maintenance”) or use the Reset button on the network camera, as described below Reset Button •...

  • Page 68: Appendix

    4. Appendix 4.1 Troubleshooting Troubleshooting if problems occur, verify the installation of the Network Camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problems/Symptoms Possible Causes or Corrective Actions The camera cannot be accessed...

  • Page 69: Preventive Maintenance

    4.2 Preventive Maintenance Preventive maintenance allows detection and correction of minor that faults before they become serious and cause equipment failure. Every three-month, perform the following maintenance. Inspect all connection cables for deterioration or other damage. Clean components with a clean damp cloth. Verify that all the mounting hardware is secure.

  • Page 70: Product Specification

    4.3 Product Specification Main Item Specification Image sensor 1/2.8” Progressive scan RGB CMOS Active Array 1920(H) x 1080(V) Lens Varifocal 3.5mm ~ 16.0mm, F1.2, DC IRIS 90.0°(H) x 50.0(V) Angle of View IR Distance 20m (with built-in 30 IR LEDs) Min.
  • Page 71 System Requirement for Web Browser Minimum System Requirements for ATVision IP Software · Operating system: Microsoft Windows 7 (or 8) Professional/Enterprise/Ultimate · CPU: Intel Core i7; RAM: 4GB; Ethernet connection: 1Gbps · Graphics card: Gaming rated, with 1GB at 1080p for single monitor; 2GB at 1080p for multiple monitors ·...
  • Page 72 IR Interior/Exterior Dome Network Camera – IPFD2TI Printed in Korea...
